1212 Acrylic, Stone, Wood, Metal, Cutting and Engraving Machine, Advertisement CNC Router
Jinan Unistar Machinery Co., Ltd.- After-sales Service：24 Hours Online Service
- Warranty：2 Years
- Function：Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
- Application Material：Marble
- Automation：Automatic
- Control：CNC
Base Info
- Model NO.：USM1212
- Motor Power：High Power
- Engraving Head Speed Adjustability：Wide Adjustable Range
- Certification：CE, ISO
- Current：AC
- Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
- Customized：Customized
- Model：Usm-1212
- Working Area：1200mm*1200mm*200mm
- Table Structure：Vacuum Table and T-Slot Table
- Spindle Power：Water Cooling 5.5kw
- Inverter：Surfar Inverter
- Control System：Nc-Studio Control System
- Drive System：Stepper Motor and Drive
- Rails Guide：Taiwan Hiwin Square Linear Rail
- Oiling System：Manual
- Spindle Speed：24000r,Min
- Max Working Speed：18m,S
- Option：Rotation Axis
- Warranty Time：2 Years
- Command Code：G Code
- Tool Sensor：Auto Tool Sensor
- Transport Package：Strong Plywood Case Packing
- Specification：1300mm*2500mm*200mm
- Trademark：UNISTAR
- Origin：China
- HS Code：8465990000
- Production Capacity：3000pieces,Year
Description
2. Spindle motor: High quality domestic water-cooling spindle. If you have specific requirement of advertising CNC engraving machine, customization is available
Performance characteristics:
1. Adopt Taiwan HIWIN Square rails, double-row four columns slide block, high precision, huge bearing
capacity, good moving stability and tools falling accuracy.
2. Whole mahine welded with thickness steel tubes, not easy to be deformed. working table backed
with steel plate, bearing capacity more than 1ton
3. Constant power spindle motr, big cutting intensity and high efficiency
4. Dust proof and wate pcroof design protects the transmission components
5. Equipped with water tank and automatic water cooling system
Technical Parameters:
| Model | USM-1212 stone CNC Router |
| Working area | 1200(X)*1200(Y)*300(Z)mm |
| Machine structure | cast iron vertical shafts and steel gantry |
| Table surface | Aluminum T-slot table with PVC |
| Spindle | 4.5KW/5.5k water cooling spindle |
| pindle rotating speed | 0-24000 rpm |
| Collect size | ER25 |
| Guide rail | Taiwan Hiwin linear square guide rail |
| Transmission | X,Y axis by helical gear rack, Z axis by TBI ball screw |
| Water tank | Stainless steel water tank and double direction water cooling sprayer for cooling the cutter |
| Motors and drivers | Stepper motor 450B and leadshine drivers MA860H |
| Control system | Ncstudio control system |
| Invert | Fuling invert |
| Max. idling speed | 25m/min |
| Max. working speed | 12m/min |
| Working Accuracy | <0.05/300mm |
| Instruction formate | G code *.u00 *.mmg *.plt |
| Working voltage | AC220V/AC380V,single phase/3 phase,50-60Hz |
| Standard software | Artcam2010 |
| Compatible software | Type3/Castmate/Coreldraw/AutoCAD and other CAM/CAD software |
| Control Cabinet | Independent |
| Other | Tool Sensor; Oiling system; Water pump; Tool Box,English manuals etc. |
| Optional parts | 1,Rotary axis for engraving round wood:price depends on its diameter; 2,Mach3 USB control system. |

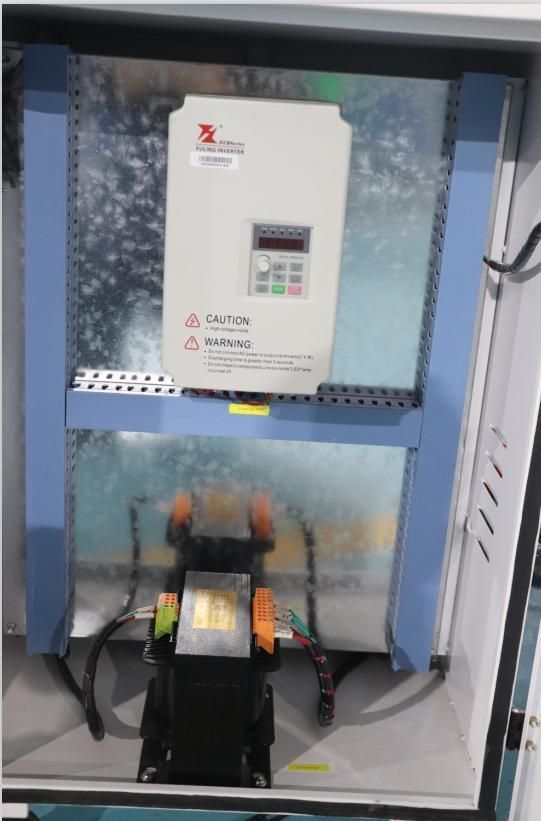

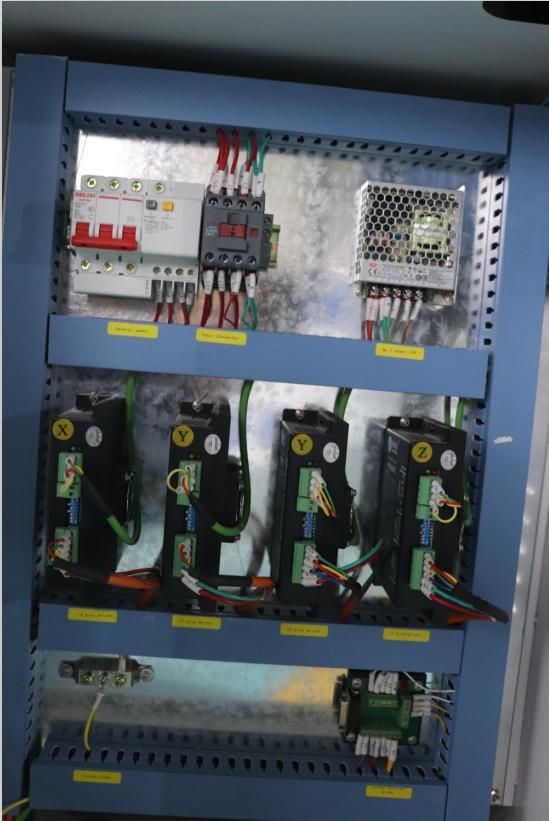

Main parts of the machine:
Application:
3D relief ,linear engraving and cutting Of natural marble,bowlder ,granite,artifical stone,tombstone,milestone,
tiles,glass etc.Two-dimensional chamfering and drilling.

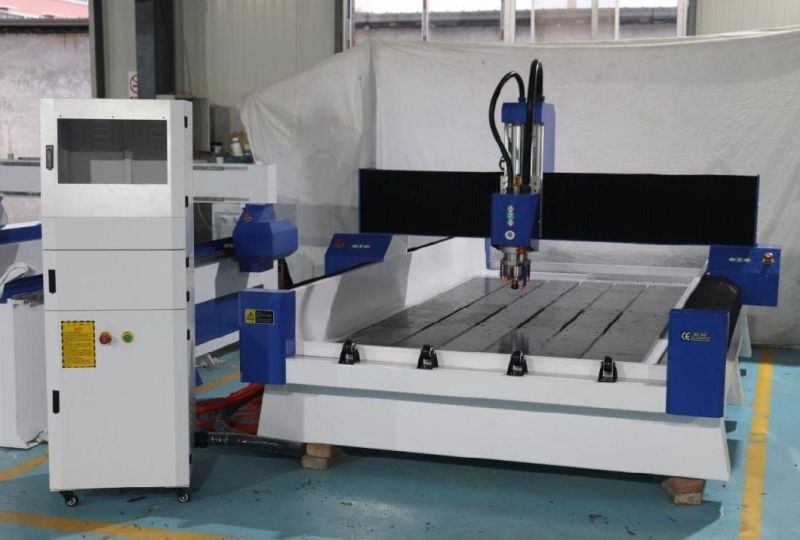

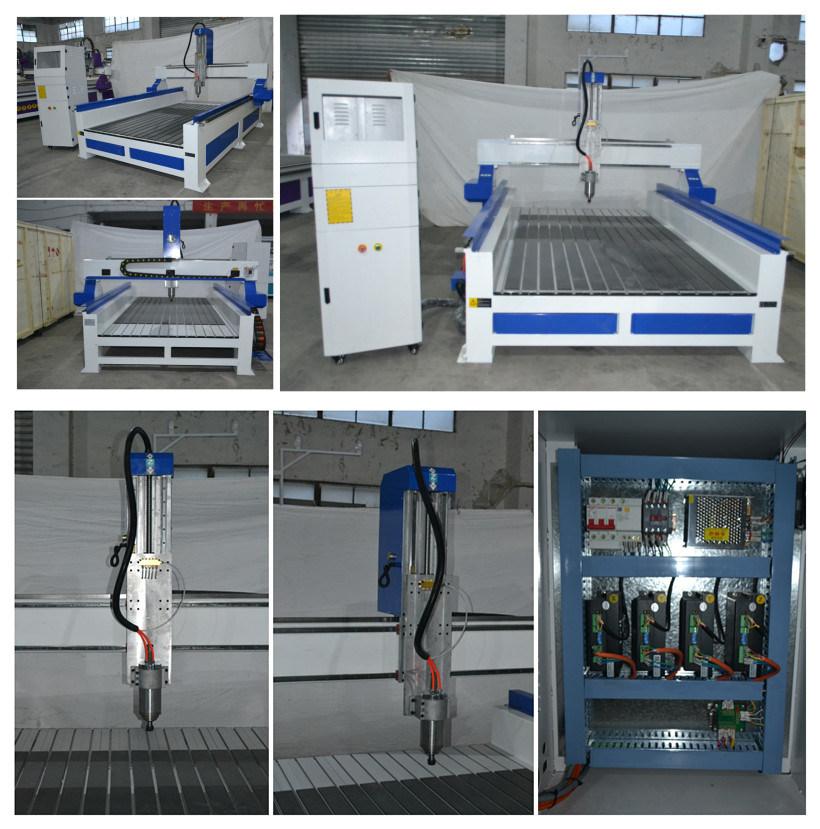

Machine details show:
Packaging & Shipping
Our Services
After-sale service
1.Two years quality guaranty for the machine and online service everyday day, free technical support.
2.Free training to guarantee you can operate machine correctly.
3.We will provide the consumable parts at an agency price when you need replacement.
4.Our staff can be sent to your company to install or adjust if necessary.
5.The processing demo video and E-catalogue will be mailed as your request.
Technical service
1. Professional technical suggestion before you order a machine.
2. Professional instruction for the operation of machine
3. Compleed machine manual and CD will be provided together with machine.
4. Machine has been adjusted before delivery.
5. 24-hour technical support by email or calling.
6. Machine can e shipped to port within 7 working days after receiving payment
