Large 3D Stone Sculpture CNC Router Machine for Stonework Machinery
Linyi Chaoda International CNC Technology Co., Ltd.- Function：Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
- Application Material：Marble, Granite,Stone,Wood
- Automation：Semi-automatic
- Control：CNC
- Motor Power：Middle Power
- Engraving Head Speed Adjustability：Wide Adjustable Range
Base Info
- Model NO.：JCS5080R
- Certification：CE, BV, TUV, SGS
- Current：AC
- Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
- Customized：Customized
- Model：Stone Sculpture CNC Router Machine for Stonework
- Lathe Bed Structure：Heavy Duty Steel Structure
- Rotary Working Size：500mm Diameter,800mm Length
- Spindle Power：7.5kw ,11kw Water Cooling
- Driving System：Japan Servo Motor and Driver
- Control System：DSP,Ncstudio,Syntec
- Auto Oil System：Yes
- Option 1：Single Rotary
- Option 2：5 Axis Rotary
- Option 3：3D Scanner
- Transport Package：Protected by Film and Fastened with Metal Wires
- Specification：4.1m * 2.2m * 2.5m
- Trademark：CHAODA
- Origin：China
Description
Basic Info.
Model NO. JCS5080R Certification CE, BV, TUV, SGS Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Model Stone Sculpture CNC Router Machine for Stonework Lathe Bed Structure Heavy Duty Steel Structure Rotary Working Size 500mm Diameter,800mm Length Spindle Power 7.5kw /11kw Water Cooling Driving System Japan Servo Motor and Driver Control System DSP/Ncstudio/Syntec Auto Oil System Yes Option 1 Single Rotary Option 2 5 Axis Rotary Option 3 3D Scanner Transport Package Protected by Film and Fastened with Metal Wires Specification 4.1m * 2.2m * 2.5m Trademark CHAODA Origin ChinaProduct Description
large 3d stone sculpture cnc router machine for stonework machinery

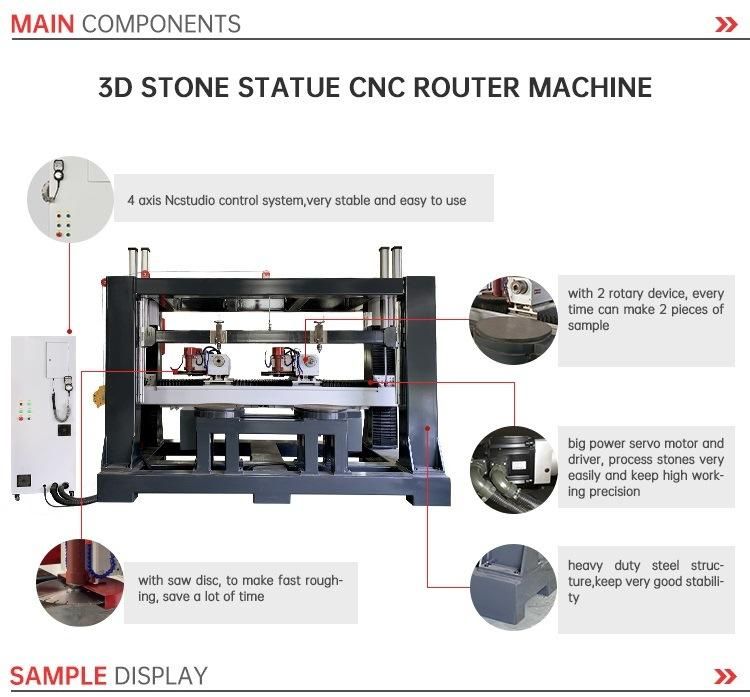

- Heavy duty steel structure, keep machine with very good stability.
- Adopt top quality machine parts,to make machine with high performance and durability.
- Machine is with two rotary device, can process different kinds of 3d stone statues sculptures roman columns corbel pilasters cylinders pillars...
- With saw blade function,for fast rough machining,10 times saved working time.
- Spindle can work together,also can work alone.
- Advanced Ncstudio control system,very stable and convenient to use.
| Model No. | JCS5080R |
| Lathe bed | heavy duty steel structure |
| Table | No |
| Rotary Working size | 500mm diameter, 800mm length * 2PCS |
| Spindle power | 7.5kw /11kw water cooling spindle |
| Spindle rotating | 12000 /24000rpm |
| Max.travelling speed | 55m/min |
| Max.working speed | 15m/min |
| Control system | 4 Axis Nsctudio /Syntec |
| Motor | Servo /Stepper |
| Saw blade unit | yes |
| Auto oil system | yes |
| Voltage | AC380v,3 phase,50Hz |

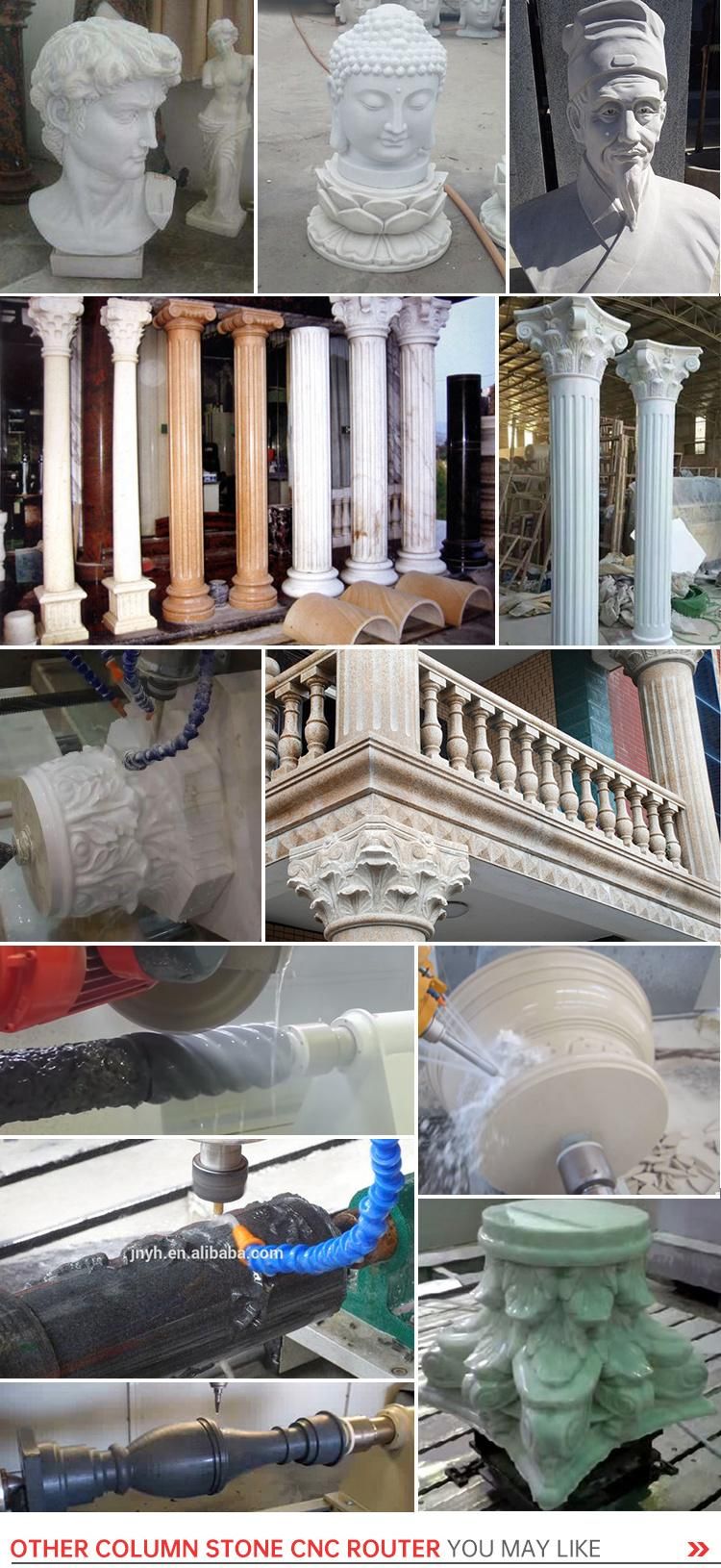

It can work on many materials like Marble, Granite, Artificial Stone, Terrazzo, Limestone, Sandstone,Travertine, Quartzite,
Slate, Grindstone ,Jade, Crystal, Glass, Acrylic, Wood, PVC, EPS Foam, Aluminum composite panel, Aluminum block, Copper and so on.
1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
