• Model NO.：HS-1300
• Application：Ceramics, Glass, Jadestone, Granite, Marble, Acrylic
• Certification：UL, ISO, CE
• Condition：New
• Brand Name：Mintech
• Operation：Touch Screen or Button Panel
• Polishing Length：1300mm (or Unlimited)
• Machine Size：3242mm×1138mm×1720mm
• Angles：0-60 Degrees to Be Any Adjusted
• Workable Material：Acrylic, PVC, Aluminum.etc
• Price：Competitive Price
• Quality：High Quality
• Customized：Accept
• Export Markets：Global
• Transport Package：Safety Package
• Specification：Horizontal
• Trademark：Mintech
• Origin：China
• HS Code：8465930000
• Production Capacity：276 Sets ,Month

Basic Info.

Model NO. HS-1300 Application Ceramics, Glass, Jadestone, Granite, Marble, Acrylic Certification UL, ISO, CE Condition New Brand Name Mintech Operation Touch Screen or Button Panel Polishing Length 1300mm (or Unlimited) Machine Size 3242mm×1138mm×1720mm Angles 0-60 Degrees to Be Any Adjusted Workable Material Acrylic, PVC, Aluminum.etc Price Competitive Price Quality High Quality Customized Accept Export Markets Global Transport Package Safety Package Specification Horizontal Trademark Mintech Origin China HS Code 8465930000 Production Capacity 276 Sets /Month

Product Description

2021 New Acrylic Diamond High Speed Polishing Machine


1, Machine features: The main structure is made of granite, and the structure is stable without deformation; Precision screw rod, imported servo drive, cylinder quick press material; 2, Machine function: Trimming and polishing of acrylic and other materials3, Applicable materials: Acrylic, PC, MS, PS and other materials4, Applicable industry: The advertising, exhibition, Home Furnishing furniture, LED lighting, Light guide plate processing, craft gifts, etc. 5, The machine advantages: Stable structure, high processing precision, good quality and speed




Advantages: 1). Working length is 1300mm or unlimited. 2). 0°-60° angles to be any adjusted3). Three PCS cutting tools to accelerate the polishing speed, and polishing surface to get mirror effect. 4). The operation is simple, easy and high precision
5). Product guarantee: One year for the machine except cutting tools. If the machine works 8 hours a day, about 5 months need to be resharpen.
Note: The company has the right to make technical improvements and specifications
And model changes to all products of the company without further notice

HS-1300Acrylic High Speed Polishing Machine

Model	HS-1300	Remarks
Machine size	3242mm×1138mm×1720mm
Main structure	Granite
Work area	L0-1300mm or Unlimited
Working thickness	0~110mm
Working depth	0-2mm	Can adjust
Spindle speed	7000~9000RPM	Can adjust
Work speed	0~2000mm/min	Can adjust
Bevel polishing	0°~60°	Customizable
Cutter feed method	Cylinder propulsion
Parameter adjustment	Manual adjustment
Machining model	Material feed
Speed regulation	Frequency conversion
Program control	PLC
Machine power	3KW AC 50~60Hz, 3pH 380V
Compressed air	0.6~0.8MPa
Machine weight	1500Kg
Cutter	Three blade or six blade	Choose as needed

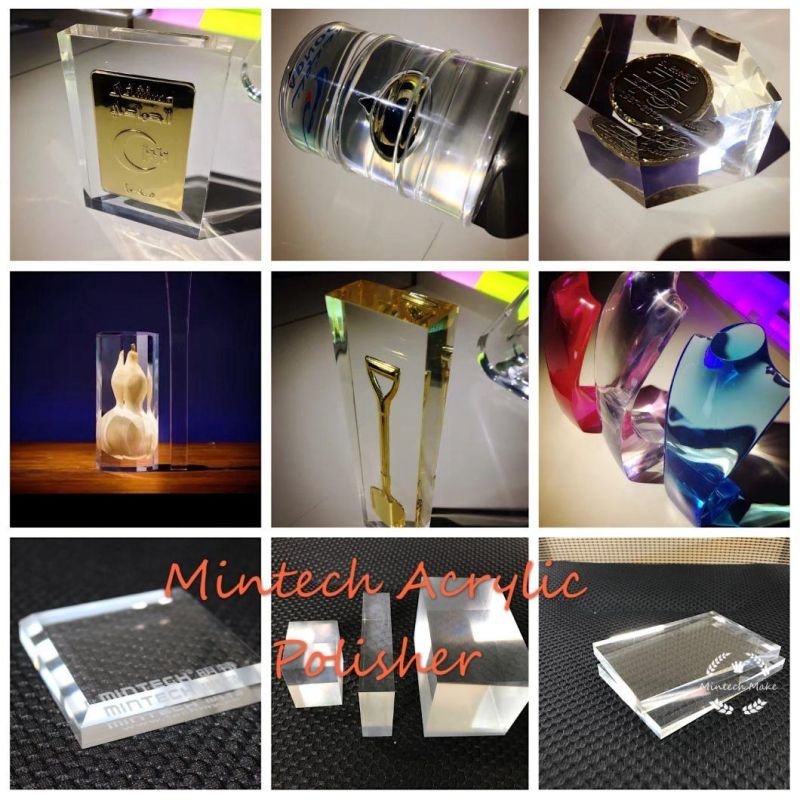

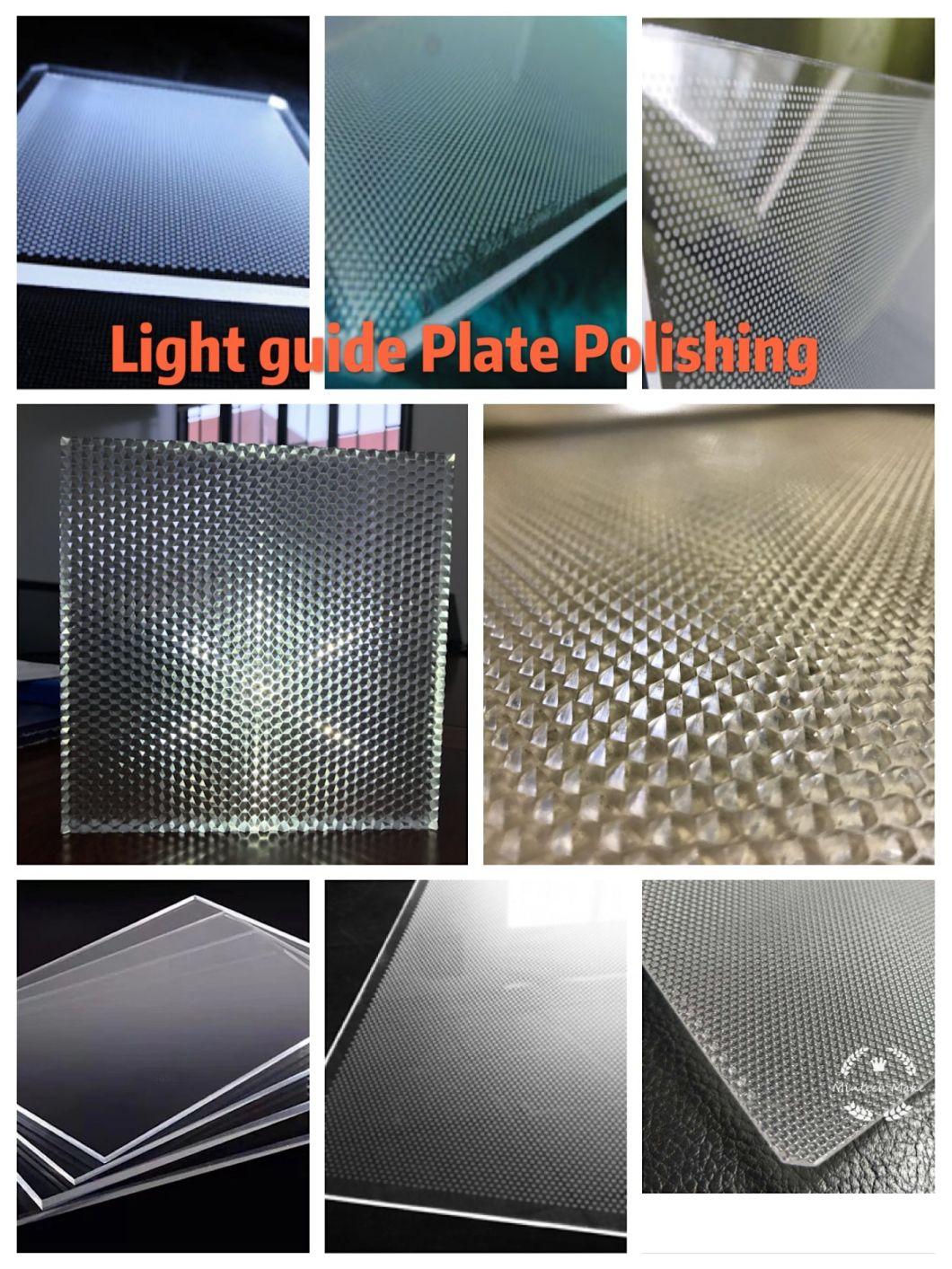

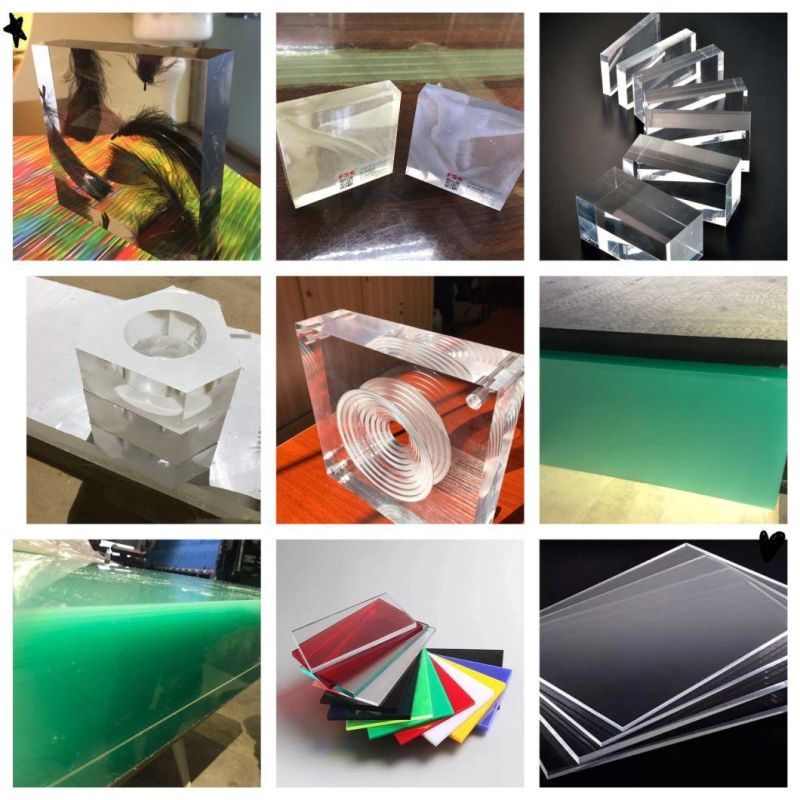

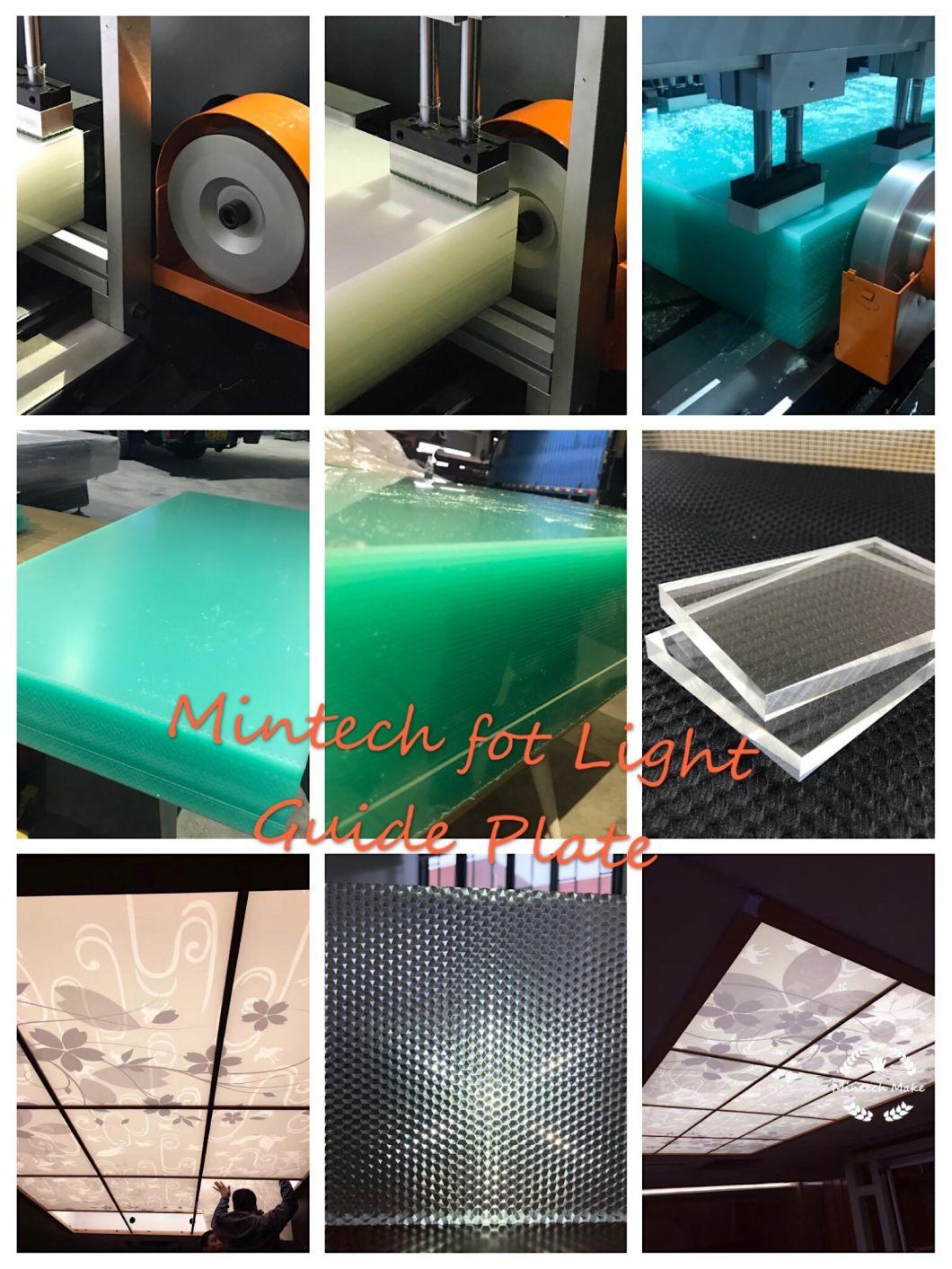

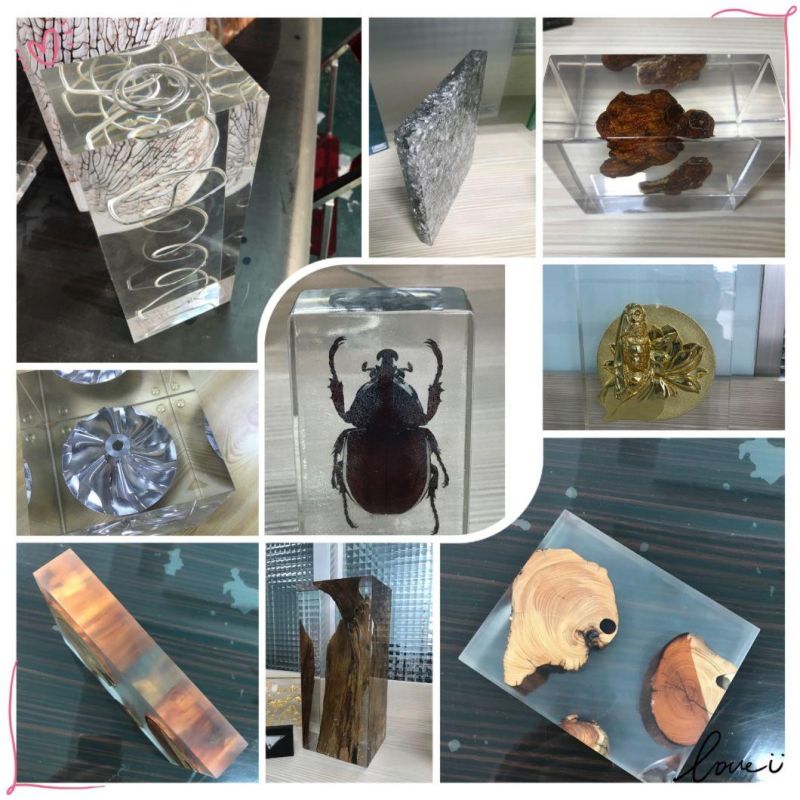

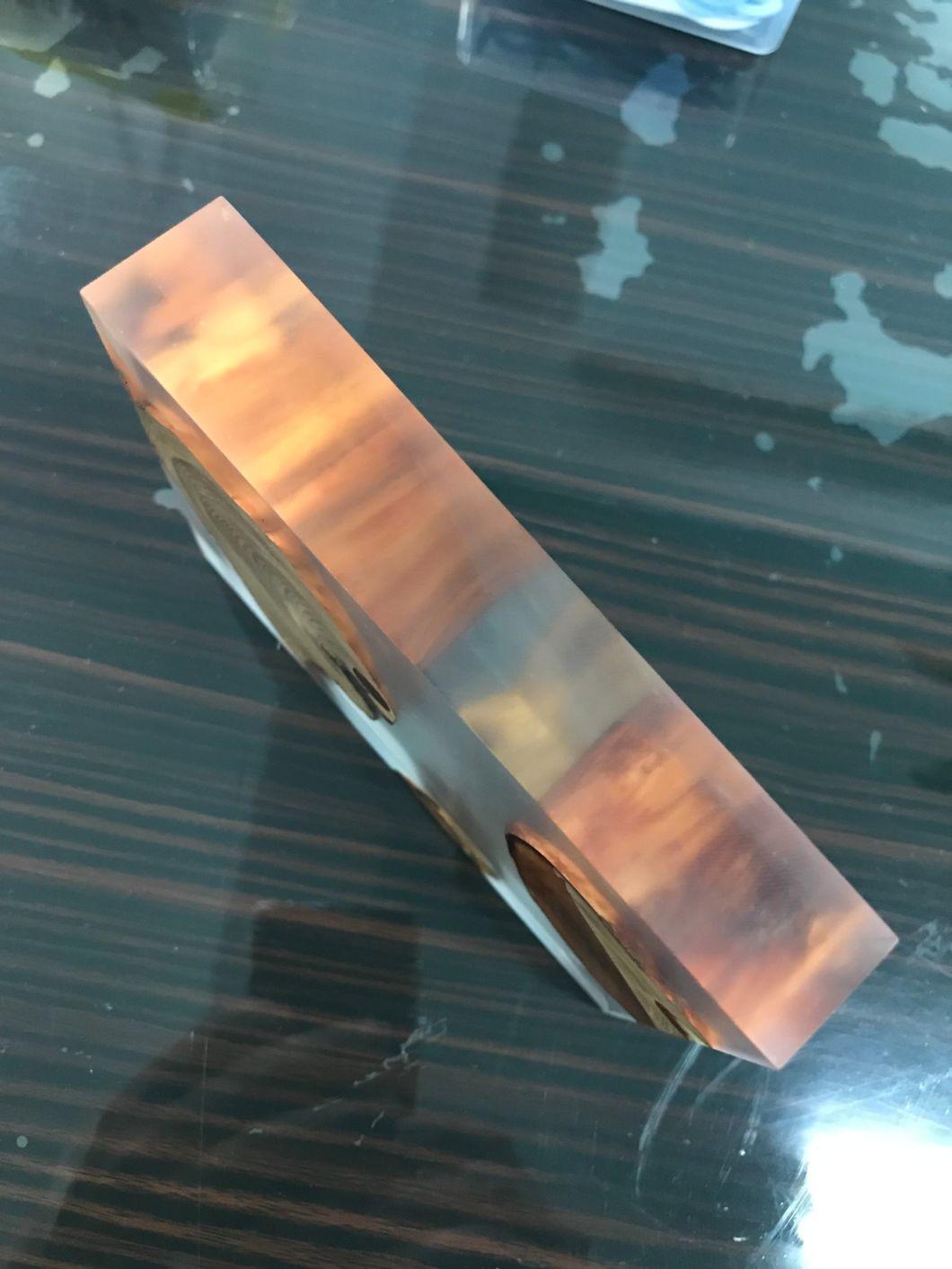

Acrylic/plastic machine samples show:





Factory and production workshop:


International Exhibition:
Shanghai International Advertising Technology and Equipment Exhibition
Beijing Exhibition

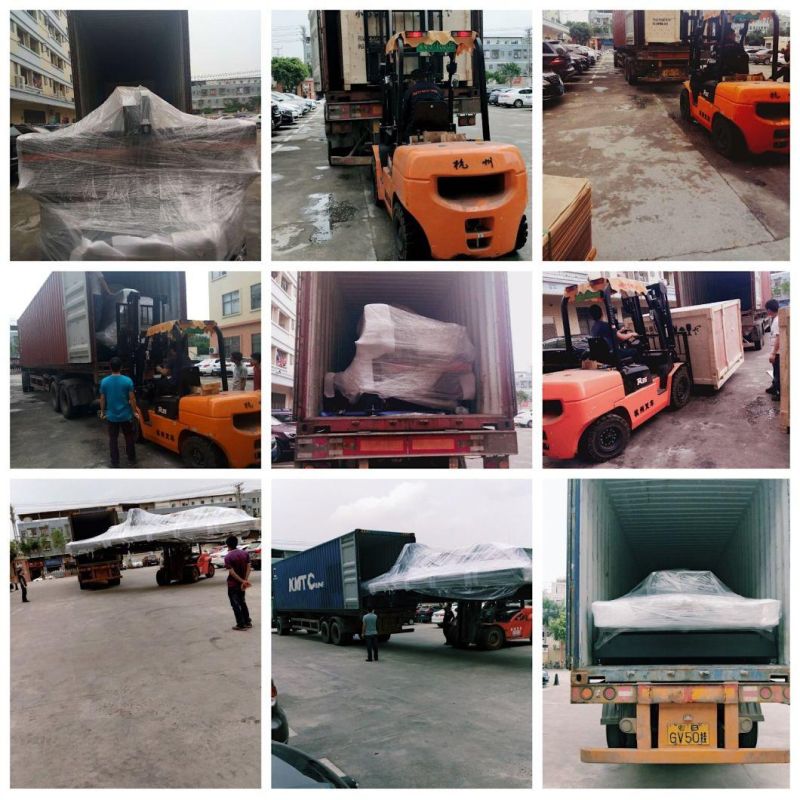

Shipments:

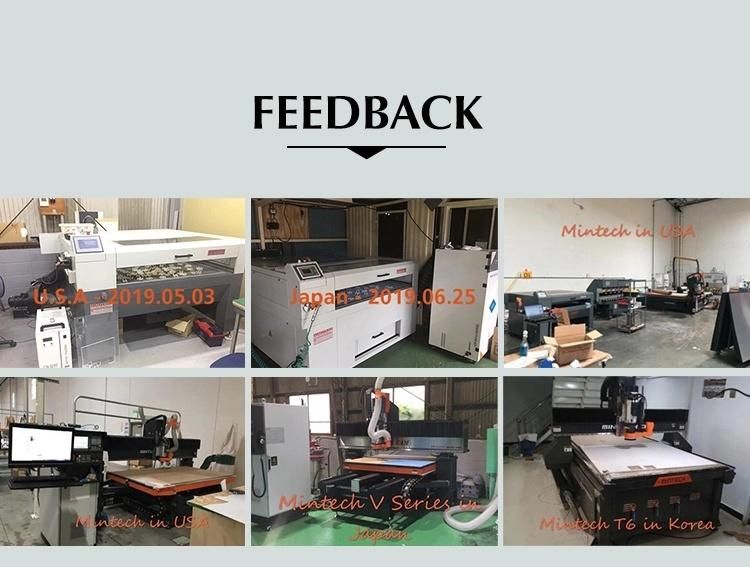

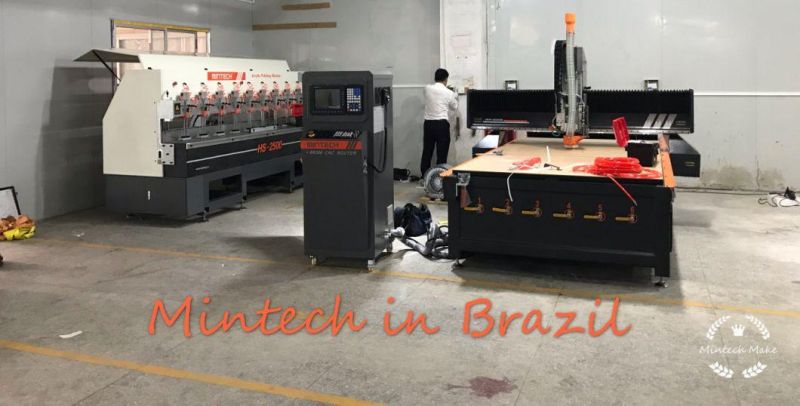

Exports of Europe and the United States, South America, the Middle East, Southeast Asia and other countries





Guarantee & After-sale service:
1. One year warranty under normal use and we supply lifelong maintenance.
2.24 hours technical support by Phone, Email, Skype, MSN, or romote.
3. Free training to make sure you master the operation of acrylic polishing machine.

OEM Service Available:
1. Usually, we will manufacturer the machine as our regular design.
2. Working size could be custmer-oriented designing.
3. Special configuration and machine color could be customer-oriented designing.
