• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Cut Length：3200mm
• Cut Width：2000mm
• Cut Thick：170mm
• Table Tilting：0-85 Degree Vertically
• Table Rotation：0-360 Degree Stopped Any Postion
• Blade Tilting：0-45 Degree for Miter Cuts
• Transport Package：Plastic Monoblock Packing
• Specification：Dimention: 6*5*2.6m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641010
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Cut Length 3200mm Cut Width 2000mm Cut Thick 170mm Table Tilting 0-85 Degree Vertically Table Rotation 0-360 Degree Stopped Any Postion Blade Tilting 0-45 Degree for Miter Cuts Transport Package Plastic Monoblock Packing Specification Dimention: 6*5*2.6m Trademark AGA Origin Xiamen, China HS Code 84641010 Production Capacity 200 Sets/Month

Product Description

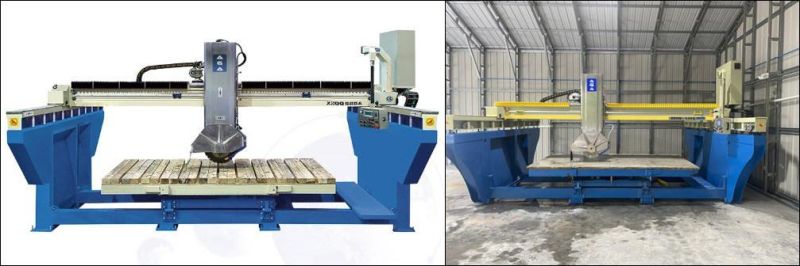

Premium Stone Bridge Saw Auto CNC Machine for Granite Marble Cutting
Product No. XZQQ625A
Automatic stone bridge saw made with full functions preferable  for cutting granite, marble, quartz and engineered stones. A robust machine for countertops, vanity tops and bench tops cutting.
CNC machine stone bridge saw technical parameters:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

CNC machine stone bridge saw advantages:
The design of the bridge saw provides the user safe and easy exploitation, high performance and productivity.
All comandulli bridge saws are manufactured not only to perform consistently at the highest level for many years, but also to enable longevity of the machine.
The machine structure goes through a metallization process, and is finished with a special cataphoresis painting treatment allowing both a long rust free life, and great looks.
Y axis side walking group and X axis cutting movement group, control racks, pinions, linear rails and ball-bearings are working in oil pool. All moving parts are protected from water and dust by covering.

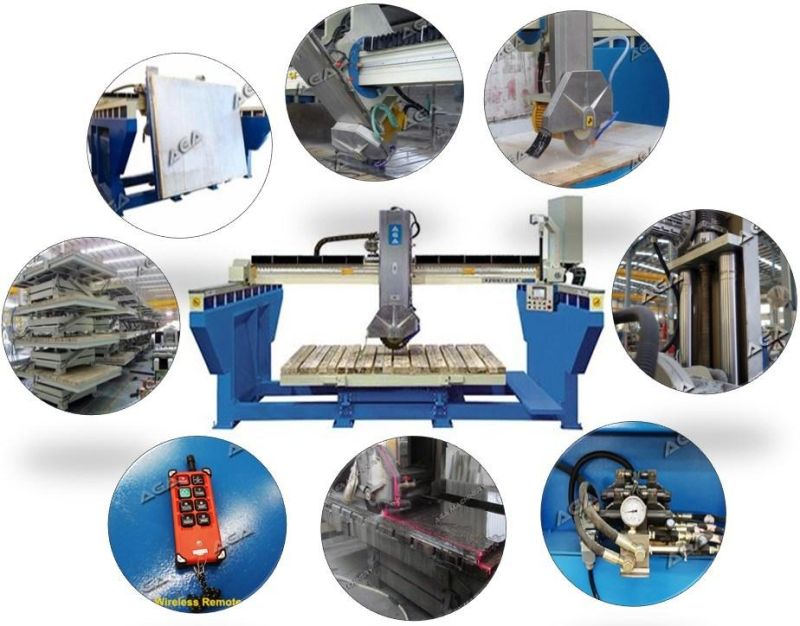

CNC machine stone bridge saw introduction:
-  Granite bridge saw blade travels on the bridge and it also provides automatic power tilting 0 - 45 degree for Miter cuts.

-  Granite bridge saw table turns 0 - 360 degree automatically stopped at any position, it also tilts 0 - 85 degree Hydraulic for easy load and unload of stone materials.

-  This monoblock stone bridge saw machine is computer control and with color Display Touch Screen.

-  The granite bridge saw is able to do multiple programs for up to 99 repeat cuts automatically and also capable of manual operation.

-  Wireless remote provides ease control of the bridge saw.

-  Laser guide and sensors give precision cuts every time.

-  Automatic water control saving every drop.

-  Movements of bridge rails are in covered oil bath ensuring smooth movements and reduced wear.

-  Main structures of the granite bridge saw are made of very strong cast iron for stable running and stainless steel for protection.

-  All functions are operated on the control panel that make it very user friendly.

-  Operating Language in English and Input Sizes unit in Inch or mm.


Key words:
Stone bridge saw, grantie bridge saw, marble bridge saw, bridge saw, stone saw, bridge sawing machine, slab sawing machine, stone sawing machine, stone cutting machine, bridge cutting machine, granite cutting machine, slab cutting machine, marble bridge saw, marble cutting machine, stone saw, granite saw, marble saw, high tech saw, cnc machine, cnc cutting machine, stone cnc machine,etc.

FAQ:
1) Payment:
T/T in advance, we accept 30% deposit and 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.


AGA Machinery:
AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.


If you have any questions please feel free to inform us, we're more than happy to serve you!
