• Model NO.：1625
• Certification：CE, SGS
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• Guide Rail：Hiwin 25 (Imported)
• Screw：2005
• Running Mode：Servo
• Driver：Leadshine (Optional Delta, Yaskawa)
• Motor：Leadshine
• Spindle：Hqd, Air Cooling
• Control System：Nc Studio
• Table：Channel Steel Countertop with PVC
• Transport Package：Plywood Case
• Specification：1625
• Trademark：GJH
• Origin：Shandong China
• HS Code：84659900
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. 1625 Certification CE, SGS Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Guide Rail Hiwin 25 (Imported) Screw 2005 Running Mode Servo Driver Leadshine (Optional Delta, Yaskawa) Motor Leadshine Spindle Hqd, Air Cooling Control System Nc Studio Table Channel Steel Countertop with PVC Transport Package Plywood Case Specification 1625 Trademark GJH Origin Shandong China HS Code 84659900 Production Capacity 100 Sets Per Month

Product Description

Two Heads,
Two Spindles,
Heavy Duty Stone, Marble, Granite CNC Router machine
from professional CNC machine manufacturer



1.Water cooling spindle with high speed, high efficiency and low noise.
2.All of the spindles can work together to save you more time and costs.
3.The lathe is founded by Thick-walled steel, provide user High load-bearing capacity, also ensures the high stability and longtime use.
4.Taiwan HIWIN square guide rails and Taiwan TBI ball screws with high precision, large load bearing and stable running.
5.High speed driver and motor enhance work efficiency.
6.DSP controller, easy to operate.
7.Equipped with professional Aluminum with PVC base with the high strength engineering plastics surface in order to ensure can bear large load and longtime working.


Tombstone carving, Building Decoration, large scale board engraving, advertising industry, Die industry, Relief sculpture, screen sculpture etc.

If  you have specific requirement  for Stone, Marble, Granite CNC machine, customized is available.

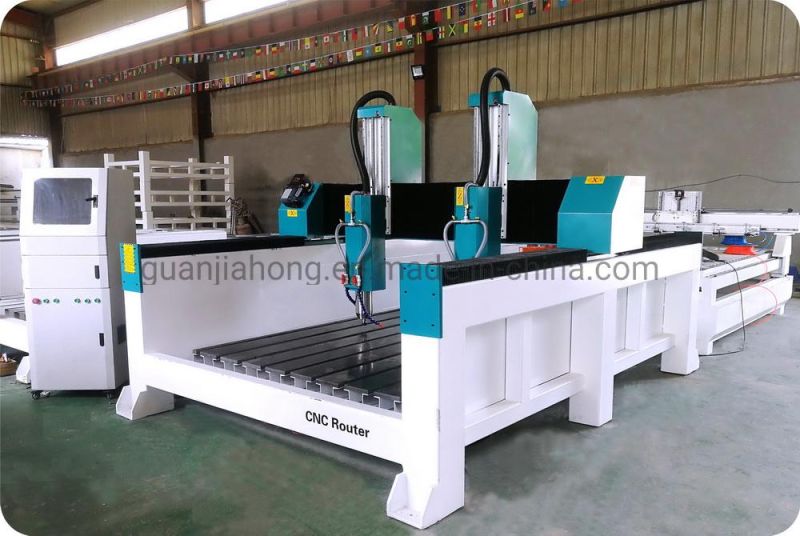

 Our real machine Scene:

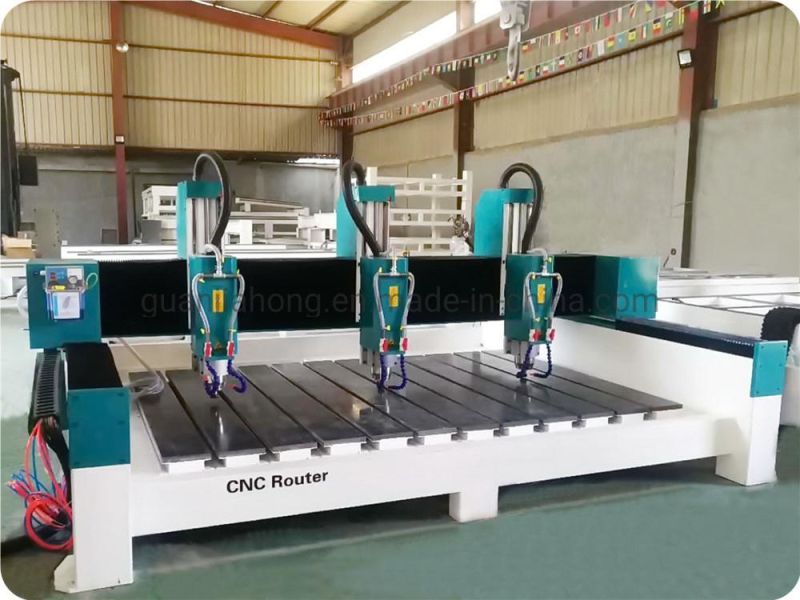

We also can make 3 Heads with 3 Spindles machine as per custmer's requirement:

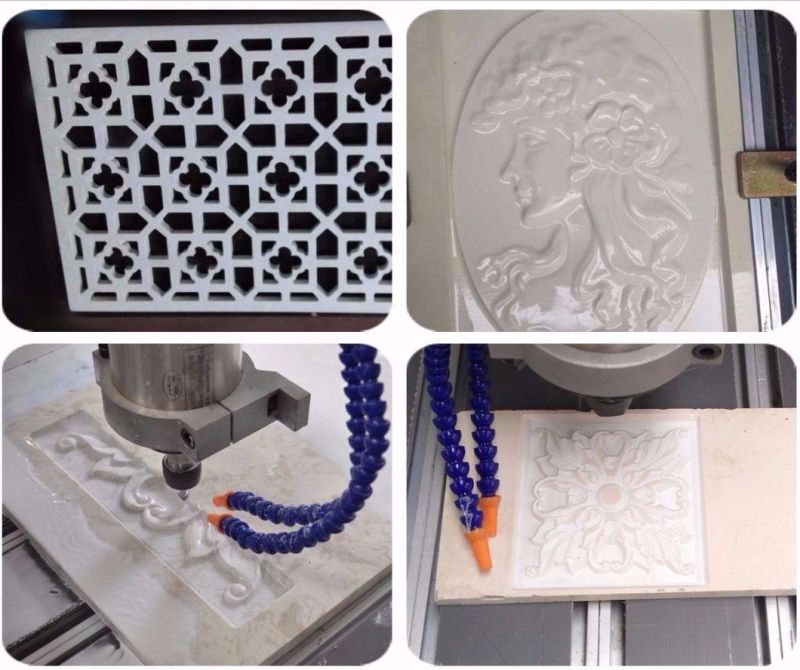

Perfect  ENGRAVING and  CUTTING works.

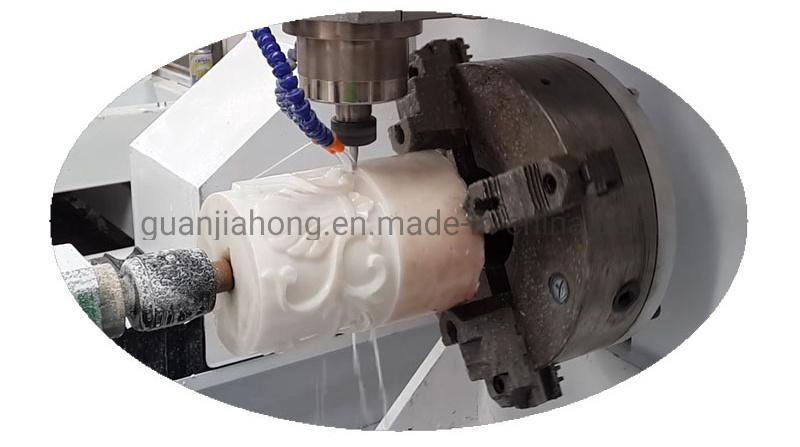

After adding Rotary device, it also can produce 3D products:
Solid and Strong packing: Good packing will make our transportation safer.

NO	Performance index	Performance index	Parameter
1	Working area	X area	1600mm
		Y area	2500mm
		Z area	400mm
2	Table size		1600mm*2500mm
3	Accuracy	Working precision	0.05mm
		Repositioning precision	0.05mm
4	Drive mode	X axis	Helical rack and pinion gear
		Y axis	Helical rack and pinion gear
		Z axis	Ball screw
5	Speed	Max traverse speed	30000mm/min
		Max engraving speed	8000mm/min
6	Spindle (water-cooling)	Spindle power	5.5KW
		Spindle speed	0_24000r/min
7	Working mode		Hybrid Servo
8	Operating voltage		AC220V/50HZ
9	Command code		G code
10	Operating system		NC Studio
11	Net weight		2520KG

Sincerely waiting for your any inquiry, and trust that we can provide you professional suggestions.

 Guarantee & After-sale service1.One year warranty under normal use and we supply lifelong maintenance.2.24 hours technical support by Phone, Email, Skype, Msn, or romote.3.Free training to make sure you master the operation of the cnc router.OEM Service Available1.Usually, we will manufacturer the machine as our regular design.2.X Y Z Working Area could be custmer-oriented designing.3.Special configuration could be customer-oriented designing.
