• Model NO.：XYJ-800 (IV)
• Control：PLC
• Certification：ISO, CE
• Conditiaon：New
• Container Type：20gp(DC)
• Transport Package：by Film Package
• Trademark：XINDA
• Origin：Yunfu City, China
• HS Code：84641090
• Production Capacity：1000

Basic Info.

Model NO. XYJ-800 (IV) Control PLC Certification ISO, CE Conditiaon New Container Type 20gp(DC) Transport Package by Film Package Trademark XINDA Origin Yunfu City, China HS Code 84641090 Production Capacity 1000

Product Description

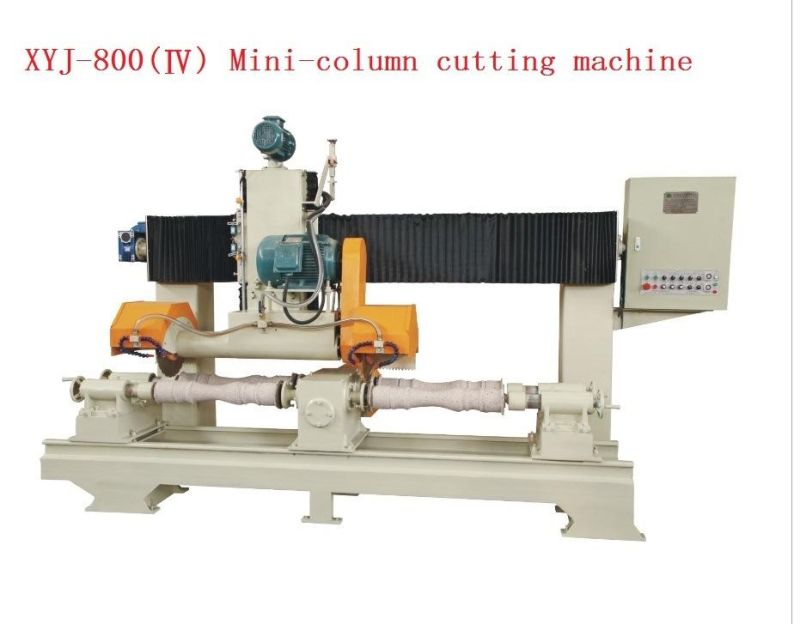

Function: this machine is used for processing baluster(vase)


Brief introduction:1,this machine is controlled by PLC system. AC contactor and breaker adopt Schneider brand. Inverter adopt Toshiba brand.2,Cutter head moves left and right by screw rod transmission,is controled by inverter.3, Cutter head goes up and down by screw rod transmission,is controled by inverter.4,worktable is driven by  motor with belt transmission. Revolving speed can be adjusted by inverter according to the hardness of the stone.5,This machine takes advantage of Optical Fiber Amplifier to receive the signal copying the shape of template you want to process.Technical parameters:

Parameters	XYJ-800(IV)
Blade diameter	Φ400mm
Max cutting size	4×φ200mm×L800mm
Water Consumption	4m³/hour
Overall Dimension	3800mm×1250mm×2300mm
Main motor power	11KW
Total Power	15.25KW
Total Weight	1.5T

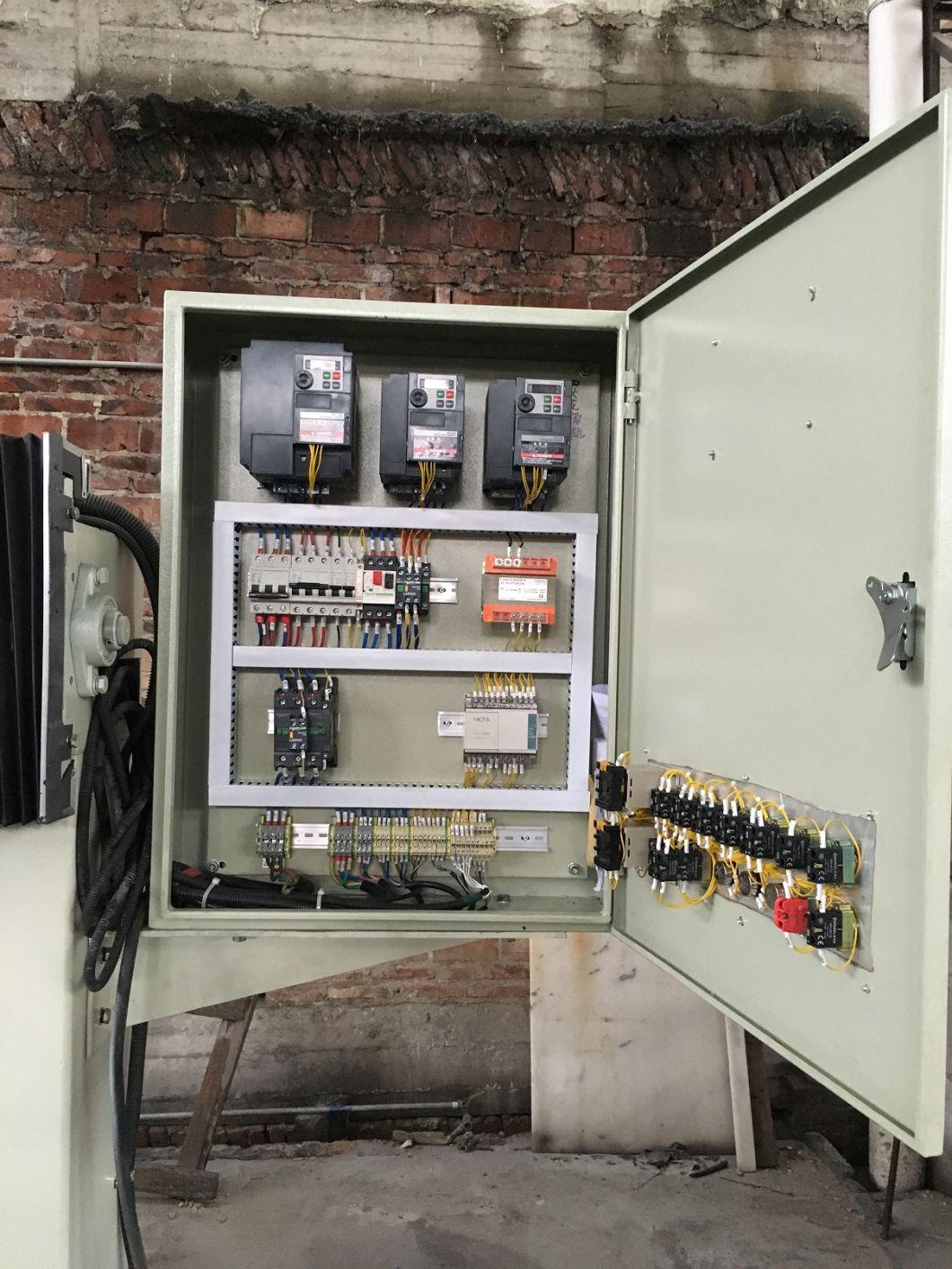

Electric Cabinet Photos :








 Exhibition:FAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before shipment
2) Delivery time:
The column cutting machine can be shipped within 20 weekdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and the wearing parts are not covered by the warranty. wearing parts are as follows: bearings,oil seals,blade etc.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. After-sales service 24 hour on line.
