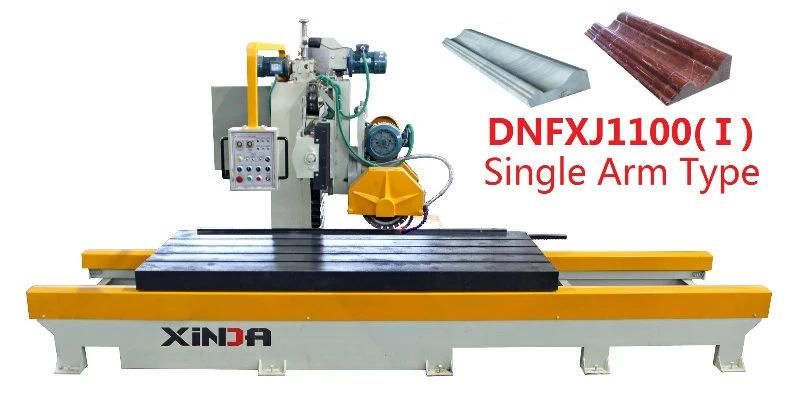

• Model NO.：DNFXJ-1100 (I)
• Control：PLC
• Certification：ISO, CE
• Conditiaon：New
• Container Type：20GP(DC)
• Transport Package：by Film Package
• Trademark：XINDA
• Origin：Yunfu City, China
• HS Code：84641090
• Production Capacity：500

Basic Info.

Model NO. DNFXJ-1100 (I) Control PLC Certification ISO, CE Conditiaon New Container Type 20GP(DC) Transport Package by Film Package Trademark XINDA Origin Yunfu City, China HS Code 84641090 Production Capacity 500

Product Description

Function: The machine is used for cutting profiling lines,Roman column,big arc slabs.Brief introduction:1,this machine is controlled by PLC system. AC contactor and breaker adopt Schneider brand. Inverter adopt Toshiba brand.2,Cutter head moves left and right by screw rod transmission3,Cutter head goes up and down by screw rod transmission4,worktable is driven by  motor with belt transmission. Revolving speed can be adjusted by inverter according to the hardness of the stone.5,This machine takes advantage of Optical Fiber Amplifier to receive the signal copying the shape of template you want to process.Technical parameters:

Model Parameters	DNFXJ-1100(I)	DNFXJ-1200(II)
Blade diameter	Φ300-Φ600mm	Φ800mm
Max cutting size	2800×1000×350mm	2500×1200×800mm
Water Consumption	4m³/hour	4m³/hour
Overall Dimension	5100×2200×2200mm	5000×3300×2800mm
Main motor power	7.5KW	11KW
Total Power	11.05KW	20.25KW
Total Weight	4.5T	4.8T

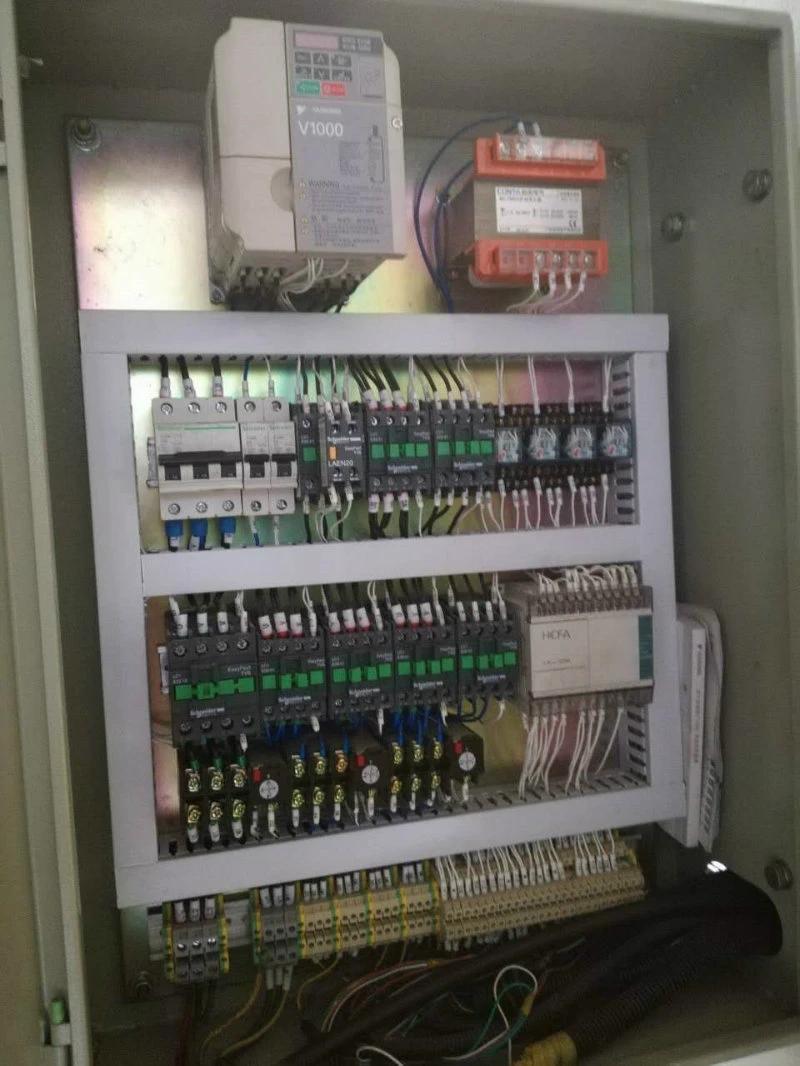

Electric Cabinet Photos :







 Exhibition:FAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before shipment
2) Delivery time:
The machine can be shipped within 15 weekdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical Support 24 hour on line.
