• Model NO.：PE500*750
• Finished Surface：Thread Process
• Certification：ISO9001: 2000, Ce, SGS
• Condition：New
• Color：Various
• Installation：Under The Guidance of Engineer
• Certificate：ISO9001: 2000
• Warrenty：1 Year
• After-Sale Service：Training, Technical Support, etc.
• Delivery：7-15 Working Days
• Price：Can Offer Lowest Factory Price
• Transport Package：International Packing Standard
• Specification：ISO, CE, SGS
• Trademark：TYM
• Origin：Zhengzhou City, Henan Province, China.
• HS Code：8474209000
• Production Capacity：60 Sets,Month

Basic Info.

Model NO. PE500*750 Finished Surface Thread Process Certification ISO9001: 2000, Ce, SGS Condition New Color Various Installation Under The Guidance of Engineer Certificate ISO9001: 2000 Warrenty 1 Year After-Sale Service Training, Technical Support, etc. Delivery 7-15 Working Days Price Can Offer Lowest Factory Price Transport Package International Packing Standard Specification ISO, CE, SGS Trademark TYM Origin Zhengzhou City, Henan Province, China. HS Code 8474209000 Production Capacity 60 Sets/Month

Product Description

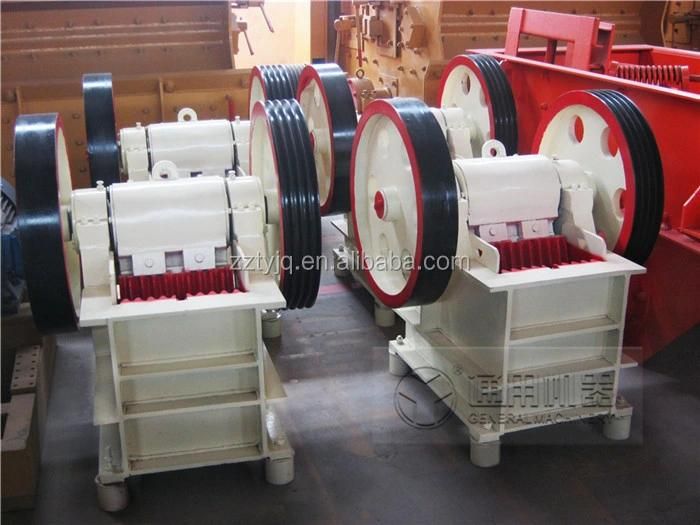

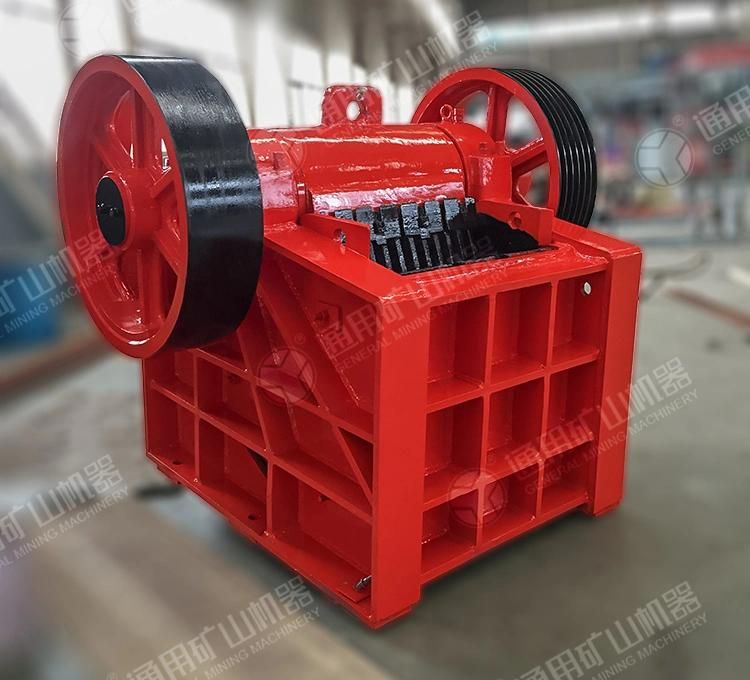

Jaw Crusher
Profession manufacture mini jaw crusher,mini stone crusher,small stone crusher supplierThe application of Jaw Crusher:Jaw crusher widely used for crushing various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartzite, alloys, etc.
Working Principle of Jaw Crusher:

Model	Size of Feeder Opening (mm)	Max. Feeding Size (mm)	Capacity (t/h)	Motor Power (KW)	Overall Dimensions (mm)	Weight   (t)
PE150× 250	150× 250	125	1-3	5.5	896× 745× 935	0.8
PE250× 400	250× 400	200	5-20	15	1430× 1310× 1340	3
PE400× 600	400× 600	350	15-60	30--37	1700× 1732× 1653	7
PE500× 750	500× 750	425	50-100	45--55	2035× 1921× 2000	12
PE600× 900	600× 900	480	60-130	55--75	2290× 2206× 2370	17
PE750× 1060	750× 1060	630	80-180	90--110	2655× 2302× 3110	29
PE900× 1200	900× 1200	750	140-260	110-132	3789× 2826× 3025	58
PEX250× 750	250× 750	210	10-40	22--30	1667× 1545× 1020	5
PEX250× 1000	250× 1000	210	15-50	30--37	1550× 1964× 1380	7
PEX250× 1200	250× 1200	210	20-60	37--45	2192× 1900× 1950	8.5

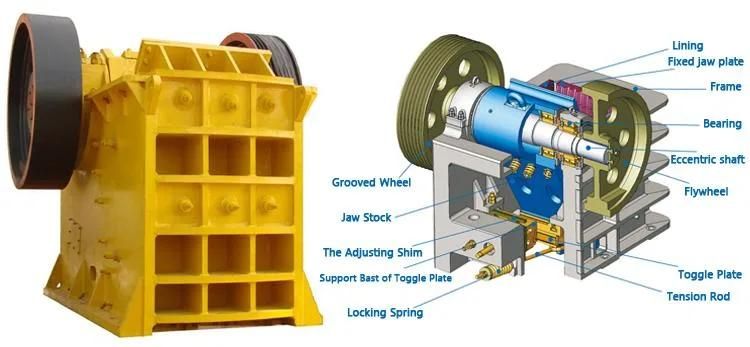

The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves away from fixed jaw by the pulling of rod and spring, the products such as stone after crushing will be discharged from the outlet.


Characteristics of Jaw Crusher:

1. High ratio of crushing

2. Homogeneous final grain size

3. Simple structure

4. Reliable working condition

5. Easy maintenance

6. Low operating cost

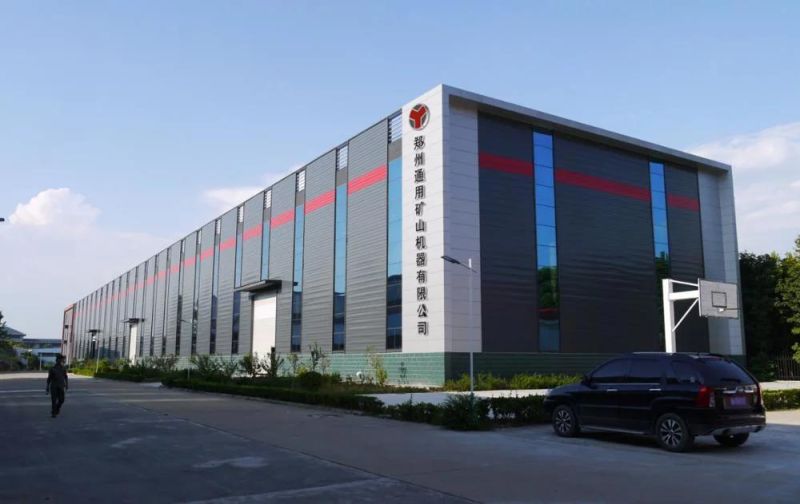

Zhengzhou General Mining Machinery Co., Ltd was founded in 2004, aiming to serve the need in mining, metallurgy, construction, chemical industry etc. We manufacture TYM brand Mining Machinery which are 100% of our own design, production detection and marketing.
 What distinguishes our machine from other 's worldwide is our invention and innovation on practical and easy crushing, milling system. We believe that quality should be integrated into every part of our machine.

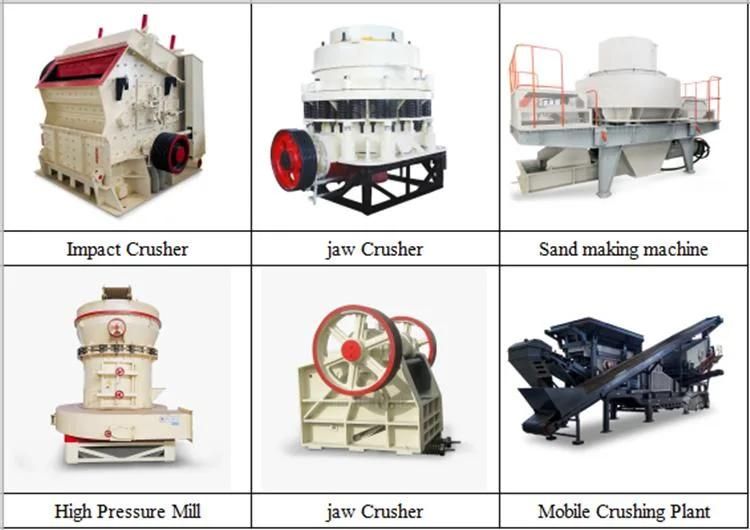

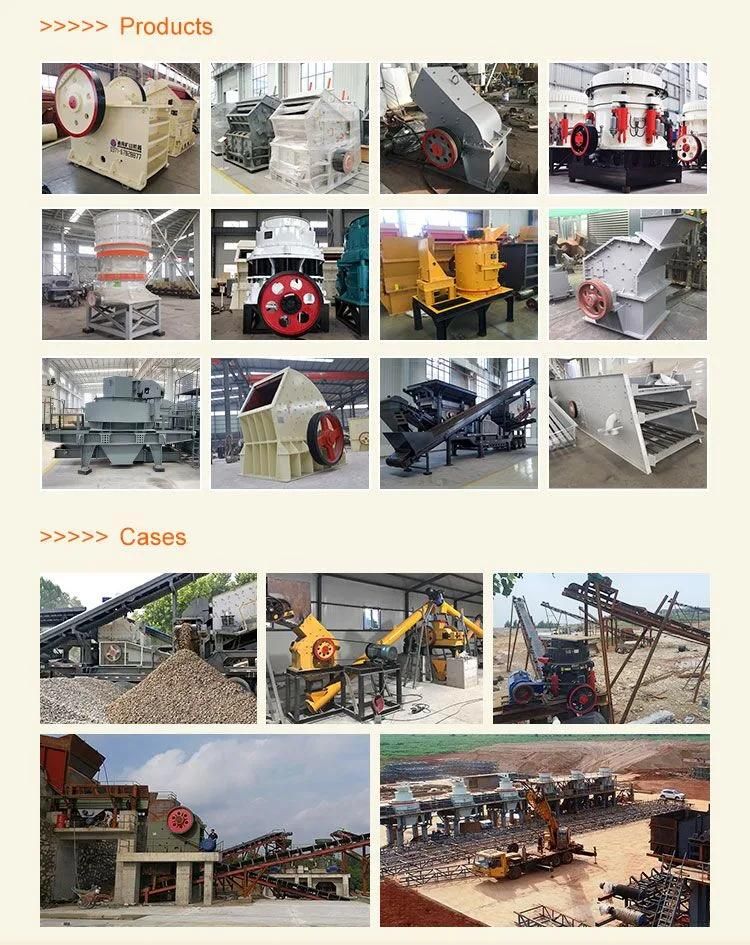

Our main products are Powder Grinder, Raymond Grinders, High Pressure Suspention Grinders, High Pressure Micro-powder Grinders, Vertical Shaft Impact Crushers, Impact Crushers, Jaw Crushers, Cone Crushers, Vibrating Screens, Sand Washing Machines, nine series of products with more than 30 kinds of specifications.

They are all designed, produced, manufactured and tested in accordance with the standard of ISO9001: 2000 international quality system standard. Our products are recognized as quality products by technical supervision departments.

Every year, we export our grinders and crushers to South Asia, Africa, South America, middle East and other regions in quantity. And our Machines enjoy a high reputation in the foreign market. We welcome you visit our company, and hope we have chance to cooperate with you. Thank you.


Pre-sale services:
(1) device model choice.
(2) According to customer's special requirements, design and manufacture of products.
(3) Training technical personnel for clients.
(4) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program

Sales tracking:
(1) product acceptance.
(2) to help customers develop construction programs.

After-sale services:
(1) free to assign a dedicated service personnel, arriving at the scene and guiding customers' installation.
(2) equipment installation.
(3) on-site training of operators.
(4) complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.

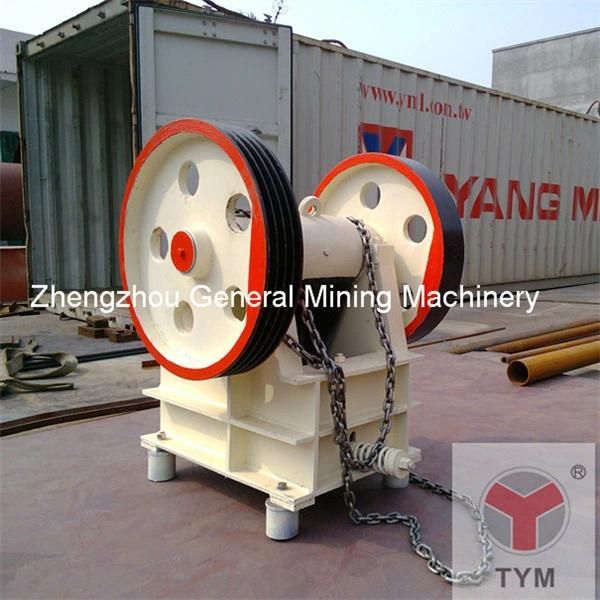

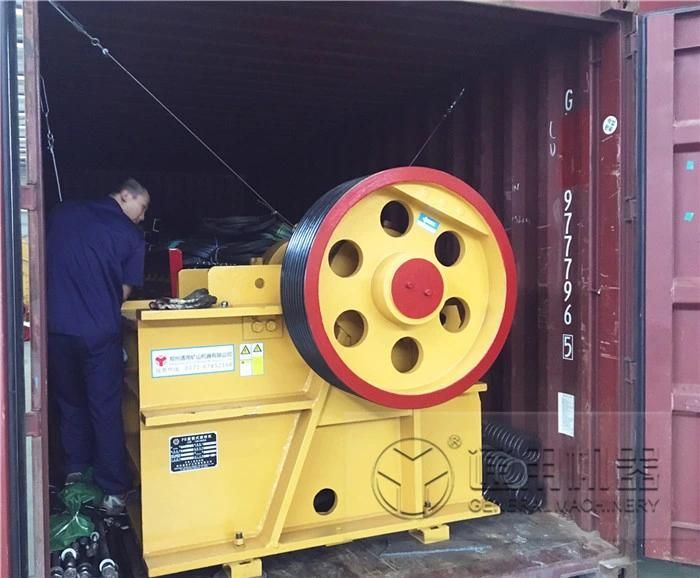

Packing and shipping
Standard parts are packed in the wooden boxes, and the big parts are packed with plastic membrane.The whole machine is loaded in the container.We can also pack them according to your requirement.
