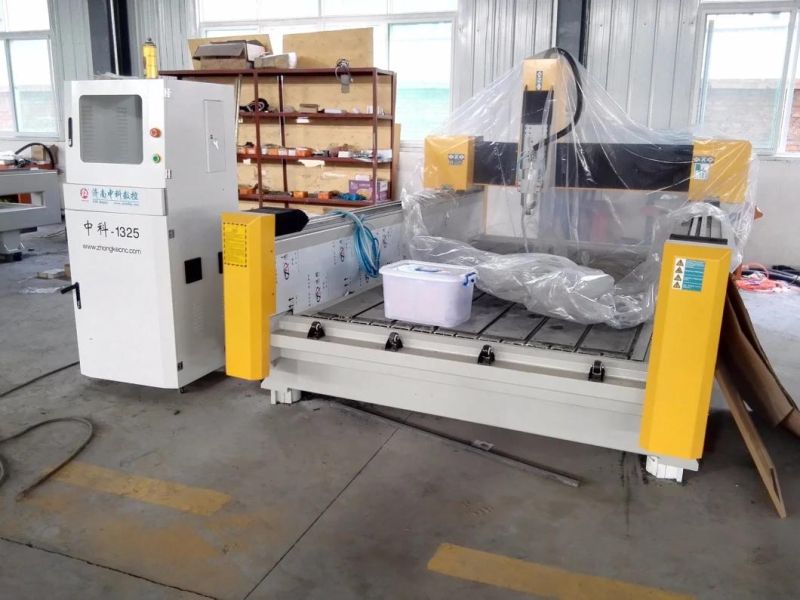

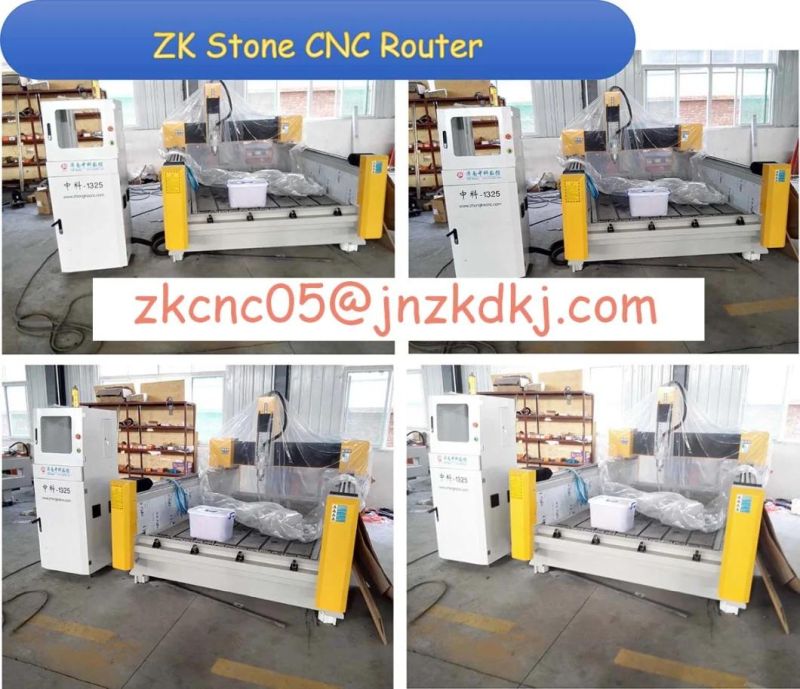

3D Stone Carving Router CNC Router for Stone Industry
Jinan Zhongke CNC Equipment Co., Ltd.- Function：Line Engraving
- Application Material：Marble
- Automation：Manual
- Control：CNC
- Motor Power：High Power
- Engraving Head Speed Adjustability：Wide Adjustable Range
Base Info
- Model NO.：1325
- Certification：CE, ISO
- Current：AC
- Application：Stone Industry
- Customized：Customized
- Inverter：Sunfar Inverter
- Spindle Speed：6000-24000rpm,Min
- Control System：Ncstudio Control System
- Motor：Stepper Motor
- Highest Engraving Speed：8m,Min
- Transmission：Helical Rack
- Guide Rail：Taiwan Hiwin Square Guide Rail
- Power：3-8kw
- Spindle：Water Cooling Spindle
- Colour：Customized
- Transport Package：Plywood Package
- Specification：1300*2500mm
- Trademark：ZHONGKE
- Origin：Jinan Shandong
- HS Code：84649000
- Production Capacity：100
Description
Basic Info.
Model NO. 1325 Certification CE, ISO Current AC Application Stone Industry Customized Customized Inverter Sunfar Inverter Spindle Speed 6000-24000rpm/Min Control System Ncstudio Control System Motor Stepper Motor Highest Engraving Speed 8m/Min Transmission Helical Rack Guide Rail Taiwan Hiwin Square Guide Rail Power 3-8kw Spindle Water Cooling Spindle Colour Customized Transport Package Plywood Package Specification 1300*2500mm Trademark ZHONGKE Origin Jinan Shandong HS Code 84649000 Production Capacity 100Product Description
3d cnc router about stone industry

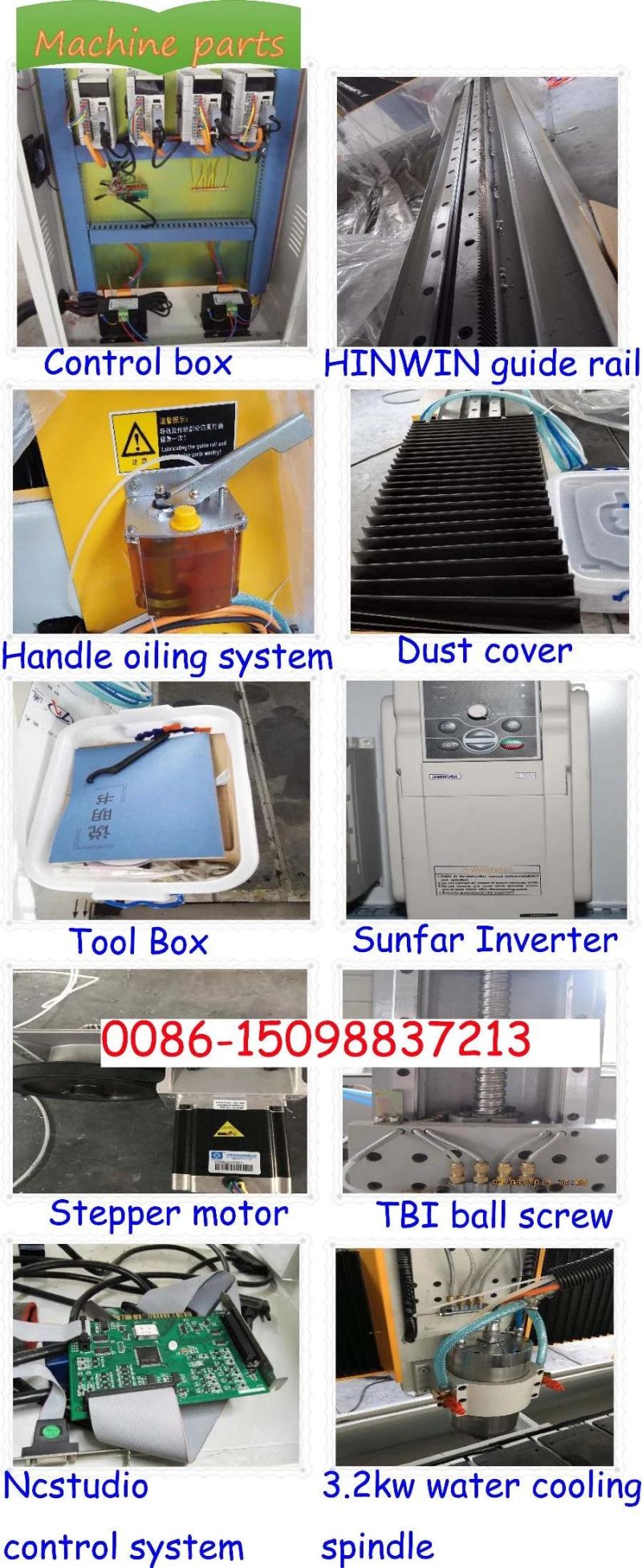

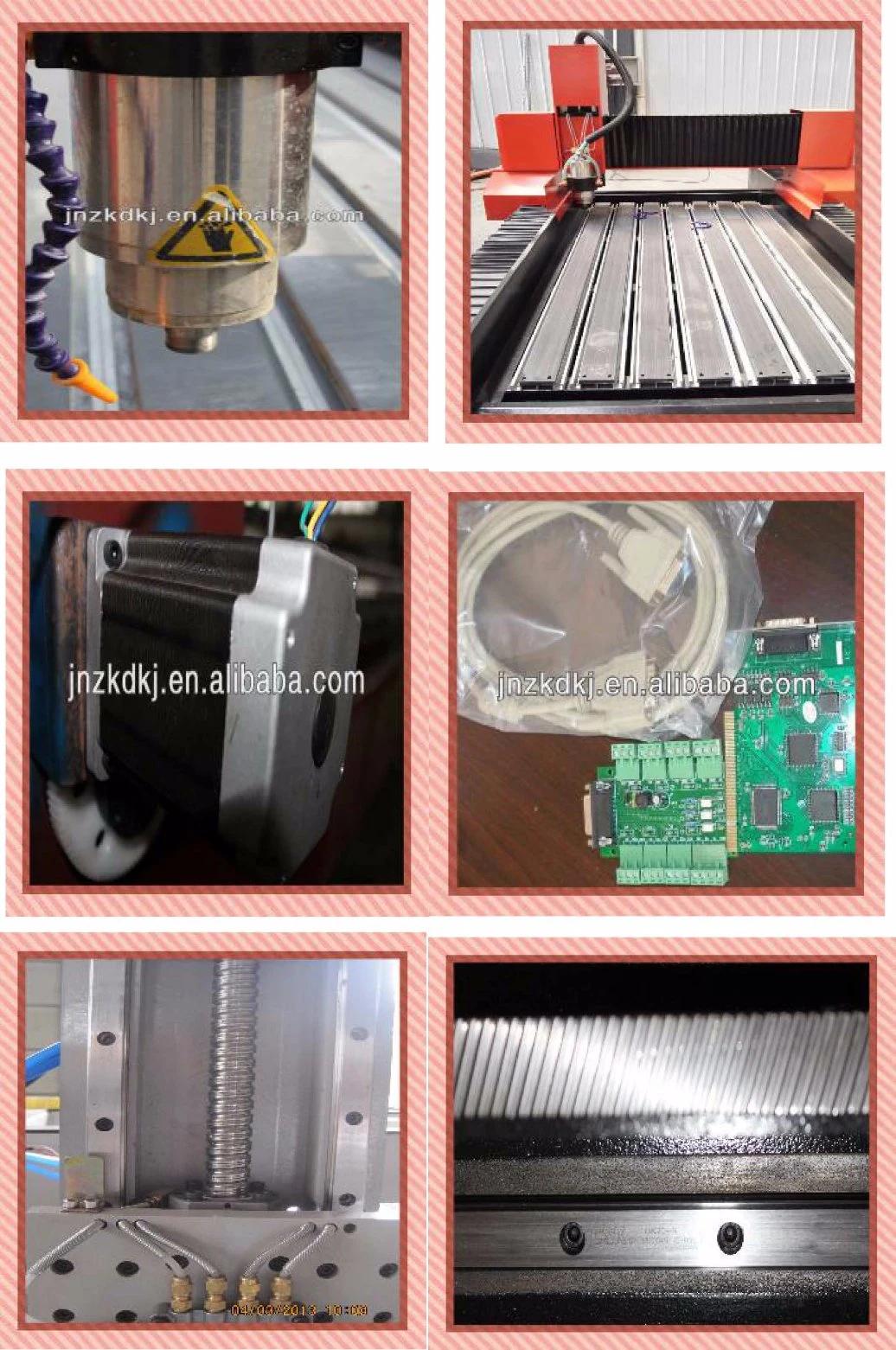

Feature:
1.Adopt Taiwan HIWIN guide rail. the bearing of the lead guide is face to face, long time to use and high precision.
2.high precision ball screw, and screw rack, make better accuracy.
3.dustproof and waterproof system, guarantee the long term running of the merchanical aspect.
4.Breakpoint memory, can engrave at the breakpoint after power off and breaking knife.
4.compatibility software: CAD/CAM, such as type3, artcut, proe, wentai,castmate Corelerow etc.
5. stepper motor working mode
6.water cooled spindle, rotation speed is 24000rpm/min.
7 Ncstudio control system, we offer CD for traning.
Specification:
| Performance index | stone work cnc engraving machine |
| Sculpture range | 1300×2500mm |
| Z working area | 300mm |
| table size | 15000×3000mm |
| Max feeding | 300mm |
| rotation axis diameter | 12.5cm/ 20cm |
| Highest engraving speed | 8m/min |
| resolution | 0.05mm |
| Reposition accuracy | 0.05mm |
| command | G Code*.u00*.mmg*.plt |
| surrounding for Software | windows98/2000/xp |
| Power (do not contain spindle) | 2kw/3kw/4.5kw |
| power | AC380V/50Hz |
| main axle power rate | 3.0-4.5KW |
| main axle rotating speed | 6000-24000rpm/min |
| work mode | stepper |

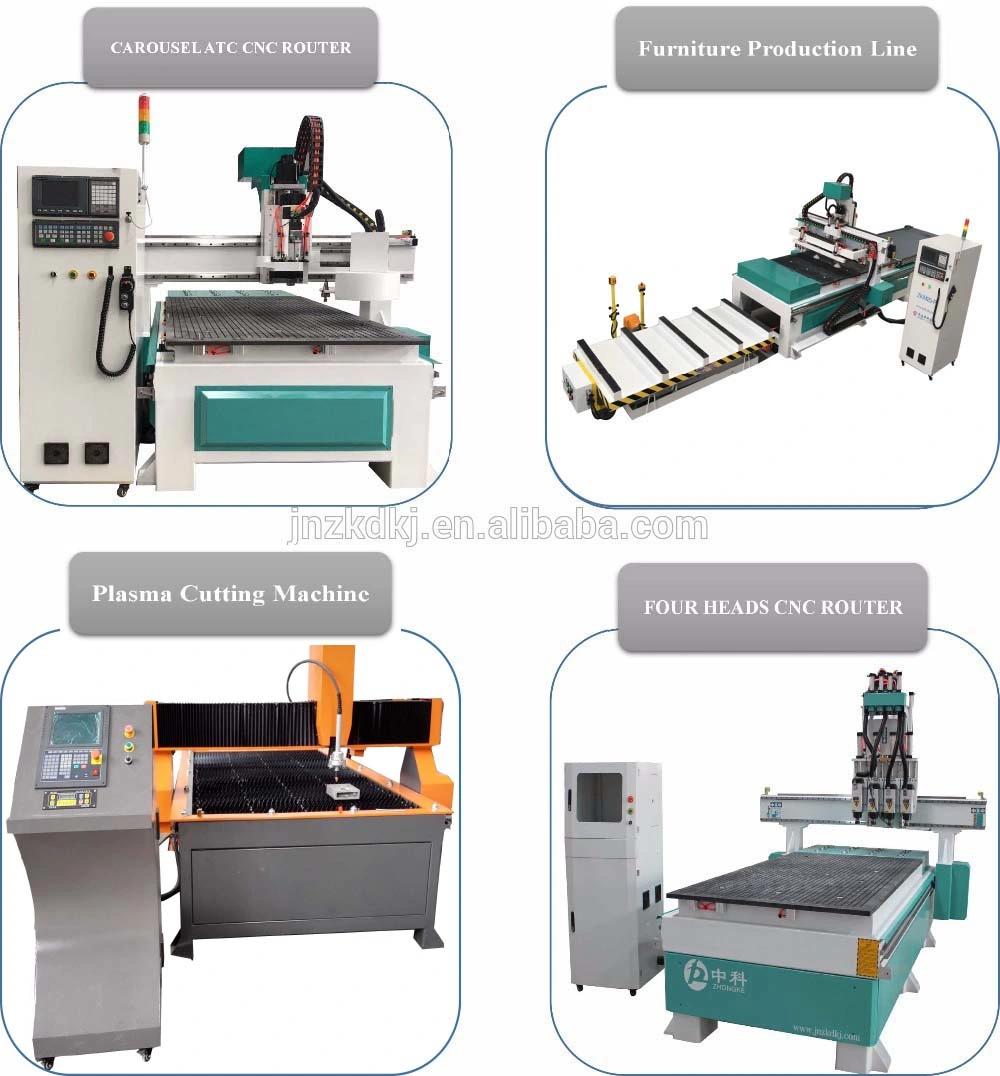

Other main machines
