• Model NO.：USM1325
• Certification：CE, ISO
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• Model：Usm-1325
• Working Area：1300mm*2500mm*200mm
• Table Structure：Vacuum Table and T-Slot Table
• Spindle Power：Water Cooling 5.5kw
• Inverter：Surfar Inverter
• Control System：Nc-Studio Control System
• Drive System：Stepper Motor and Drive
• Rails Guide：Taiwan Hiwin Square Linear Rail
• Oiling System：Manual
• Spindle Speed：24000r,Min
• Max Working Speed：18m,S
• Option：Rotation Axis
• Warranty Time：2 Years
• Command Code：G Code
• Tool Sensor：Auto Tool Sensor
• Transport Package：Strong Plywood Case Packing
• Specification：1300mm*2500mm*200mm
• Trademark：UNISTAR
• Origin：China
• HS Code：8465990000
• Production Capacity：3000pieces,Year

Model

USM-1325

Working size

1300mm*2500mm*200mm

Spindle

 5.5 KW water cooling

Table type

vacuum table and  T-slot table

Controlllor

NC-studio  control system

Transmission

X,Y Rack and pinion, Z Ball Screws

Rail Guide

Taiwan Hiwin  Square Rail Guide

Drive system

Stepper  motor and drive

Inverter

5.5kw Surfar inverter Inverter

Dust collect

Auto dust collect system

Oil injection

Manual

Tool sensor

Auto tool sensor

Option

Rotation axis

Warranty Time

2 years

Command language

HPGL, G code

Working voltage

AC380V /50HZ

Interface

USB

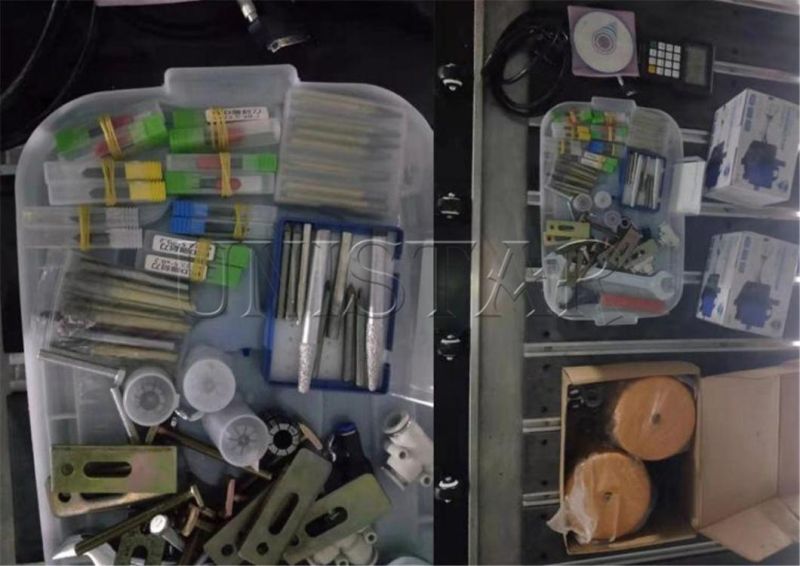

Box tool

box tools, cnc stone carving machine with tool box include wrench ,tools , dust cover and so on

Features

1.The bed body is welded by thick wall steel pipe, which is rigid and not easy to deform. ATC cnc stone engraving
   machine can bear over one ton of weight.Gantry and beam are welded with steel plate.

2.The stone engraving machine with pulley , which can be put on material more easily , save much labour and
   energy , more easy

3.Vacuum table and T -slot table together ,it can not only can be suck in wood , MDF, PVC material with vacuum
   table, also can clamp stone,marble,granite,aluminum hard material .

4.Import Taiwan high quality PMI rail guide and helical rack pinion, long lifetime , high accuracy.

5.With 8 tool changer magazine ,tool holder , it can save much time to make knife changer by hand.
 Improve process efficiency ,save much time .

6.High speed, high precision, high stability, low noise, long service life

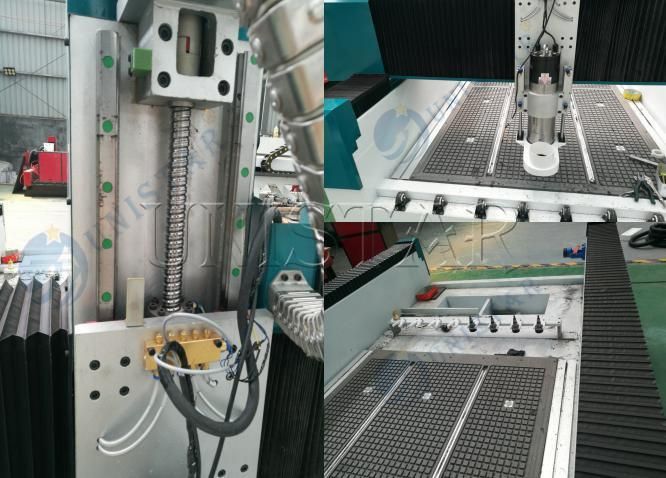

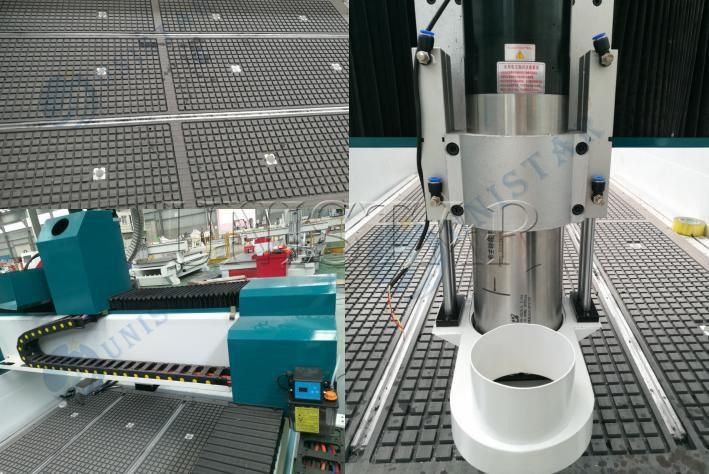

Detailed pictures

Applicable industry and samples

Suitable for stone industry, stone tablet processing industry, art relief, advertising, decorative decoration,
ceramics industry

CNC stone engraving machine suit material :Marble, granite, jade, bluestone, black stone and other kinds
of stone, as well as ceramic, glass, organic glass, PVC board, aluminum plastic board, bamboo and other
materials. Hard stone materials such as granite can be carved in layers up to 5mm. Marble, bluestone, etc.
can be carved up to 5mm at a time.

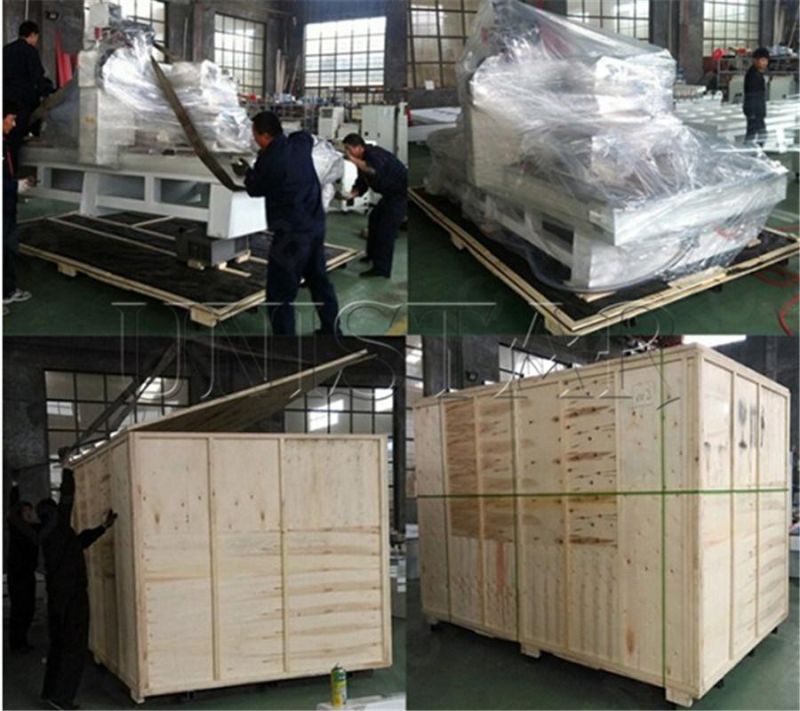

Packing and shipping





Certificate

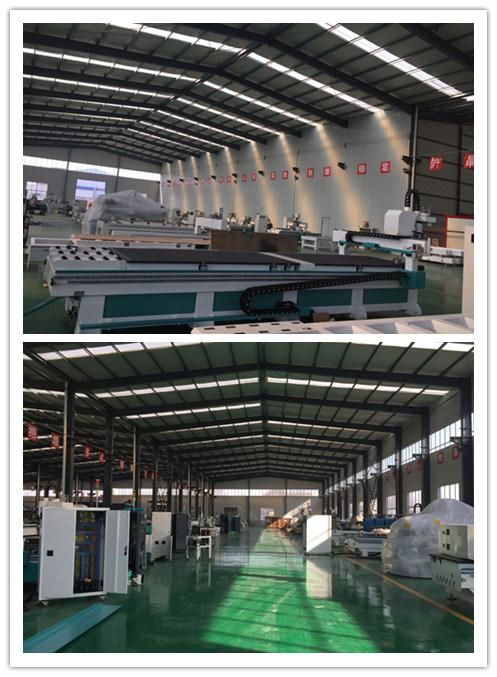

Factory picture


Our service

1. We provide 24 months warranty for the machine. Machine as normal using
    and maintenance condition, if get any problem, will provide spare parts for free.

2.We would deal with all the production and shipping affairs,
   after everything is ready, we would tell you everything goes well here.

3. Consumable parts will be replaced free during the warranty.

4. Our engineer could provide technology support and training for you in your country,
    If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.

5. Our engineer could service for you 24 hours online, by Whatsapp,Wechat,
    or by cellphone etc.we would pay their 100% time and energy to solve your problems!

FAQ

How long about the machine's guarantee?
2 years

How about your after-sales service?
Technical support by phone,Whatsapp,Skype,e-mail or QQ around the clock.

If i bought machine ,but i don't know how to operation,what i can do ?
Our engineer will teach you how to operation the machine through manual,video or email,
i still also will help you

Does your company can processing my samples?
Yes,we can.

Do you arrange shipment for the machines?
Yes,for FOB or CIFprice,we will arrange shipment for you,for EXW price ,clients need to arrange
 shipment by themselves or thier agent.
