Stone Processing Machinery

Home > Product > Stone Carving Machine

High Stability Carving Cutting Engraving Stone CNC Router

Jinan Firm CNC Equipment Co., Ltd.
  • Function：Hollow out, Cutting, Line Engraving
  • Application Material：Blackstone
  • Automation：Automatic
  • Control：CNC
  • Motor Power：High Power
  • Engraving Head Speed Adjustability：Wide Adjustable Range

Base Info

  • Model NO.：FM1325T
  • Certification：CE, ISO
  • Current：AC
  • Application：Glass, Decoration, Advertising, Art & Craft, Stone Industry
  • Customized：Customized
  • Motor Type：Stepper,Servo
  • Engraving Area：1300*2500*200
  • Spindle Power：1.5kw,2.2kw,3.5kw,4.5kw
  • Spindle Rotate(Rpm)：0~24000rpm,Min
  • Transport Package：Wooden Box
  • Specification：CE ISO SGS
  • Trademark：FIRMCNC
  • Origin：Jinan Shandong China
  • HS Code：8456100090
  • Production Capacity：5000 Sets,Year

Description

NO.Description Parameter  1X,Y,Z Working Area1300* 2500* 200mm2Table Size1300* 2500mm3X,Y,Z Traveling Positioning Accuracy±0.03/300mm4X,Y,Z Repositioning Accuracy:±0.02mm5Table SurfaceAluminium profile--welded thick steel
Add water tank6FrameCast iron7X, Z StructureHigh precision rack gear8Y StructureRail Linear Bearings o Ball Screw9Max. Rapid Travel Rate20000mm/min10Max. Working Speed   10000mm/min11Spindle Power3.0 kw water cooled spindle
Equipped with water pipe12Spindle Speed 0-24000RPM/min13Drive MotorsStep motors14DriversLeadshine drives15InverterBest Inverter16Working Voltage220V/ 380V three phase 50-60HZ17Command LanguageG Code18Operating SystemMach3 controller (optional DSP or Ncstuido control)19Computer InterfaceUSB20Flash Memory512M21ColletER2022X,Y Resolution<0.01mm23Software CompatibilityARTCAM/ Type3 software24Running Environment  Temperature0 - 45 Centigrade25Relative Humidity30% - 75%27N.W.1300KG28G.W.1500KG
High Stability Carving Cutting Engraving Stone CNC Router

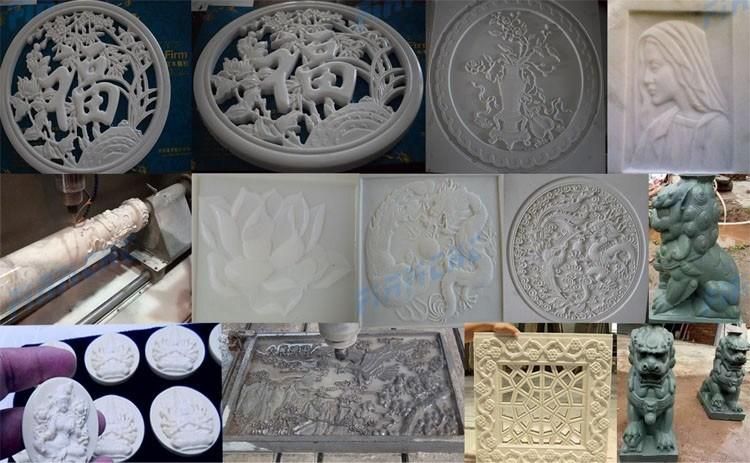

Application
Stone, marble, granite, Chinese black stone, bluestone, jade stone, crystal, glass, organic glass,
Floor tile and ceramic tile, plastic,
chemical synthesis board, PVC board, bamboo ware, Aluminum-plastic panel, metal, etc., line carving, 2D engraving, 3D engraving, 3D relief, Cutting,
drilling, processing.
High Stability Carving Cutting Engraving Stone CNC Router
Our Services
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.

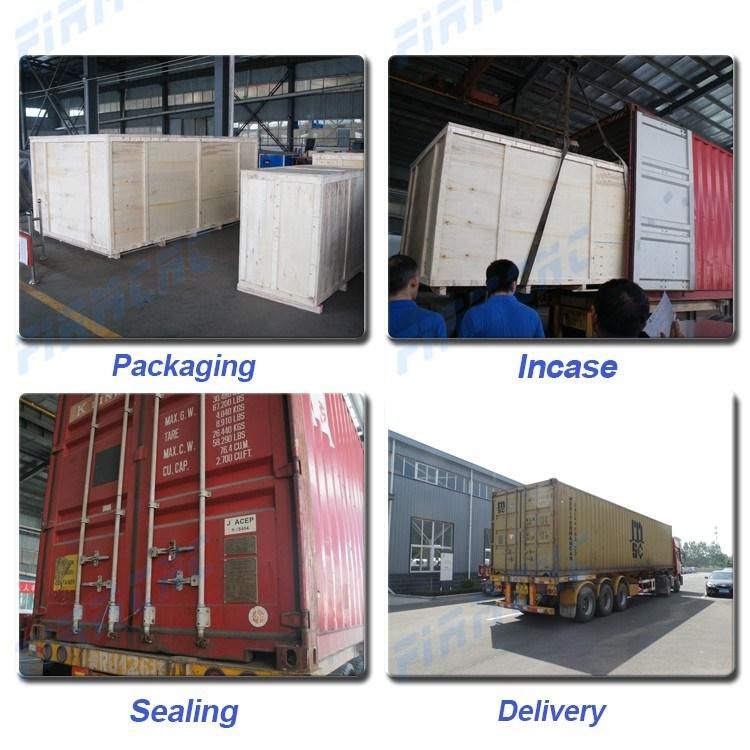

Packaging & Shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information
High Stability Carving Cutting Engraving Stone CNC Router

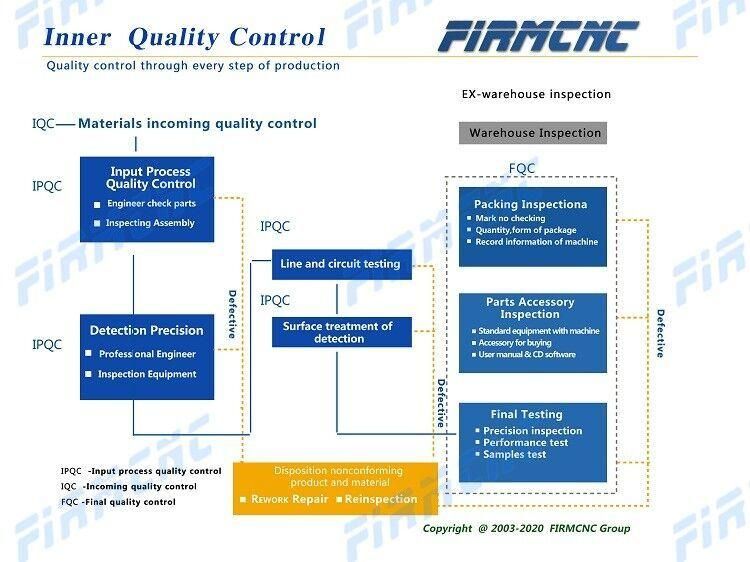

Inner control system
1. In the process of production, our professional technical engineers inspect the process to ensure the quality of products.
2. Each link is strictly controlled to ensure the machine clean and beautiful.
3. 48 hours continuous working test before the machine leaving factory, ensure the high quality of each machine.
Every step strict test, make sure high precision, best quality
High Stability Carving Cutting Engraving Stone CNC Router
Company Information
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of cnc router appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on cnc router appliances.
High Stability Carving Cutting Engraving Stone CNC Router
FAQ
1.How to choose a suitable model ? processing materials? max cutting thickness?
2.Do you have operation manual and working video?
3.Does your company can processing my samples?
4.If I bought machine, but don't know how to operation, what I can do?
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
6.Does your engineer do aftersale service at abroad? how much cost?
