• Model NO.：reference to the form
• Finished Surface：Cut Off Tool
• Certification：CE, ISO
• Condition：New
• Color：Grey
• Installation：Under Our Engineer′s Guide
• Weight of Ball：1.5t
• Certificate：ISO9001: ISO14000
• Feeding Size：<25mm
• Factory Established：1956
• Power：18.5
• Warranty：1956
• Object：Different Materails
• Experience：More Than 50 Years
• Spare Parts：We Offer
• Transport Package：According to Your Special Requirements
• Specification：ISO9001, ISO14000, CE
• Trademark：ZK
• Origin：Zhengzhou, China
• HS Code：8417
• Production Capacity：Reference to The Form

Basic Info.

Model NO. reference to the form Finished Surface Cut Off Tool Certification CE, ISO Condition New Color Grey Installation Under Our Engineer′s Guide Weight of Ball 1.5t Certificate ISO9001: ISO14000 Feeding Size <25mm Factory Established 1956 Power 18.5 Warranty 1956 Object Different Materails Experience More Than 50 Years Spare Parts We Offer Transport Package According to Your Special Requirements Specification ISO9001, ISO14000, CE Trademark ZK Origin Zhengzhou, China HS Code 8417 Production Capacity Reference to The Form

Product Description

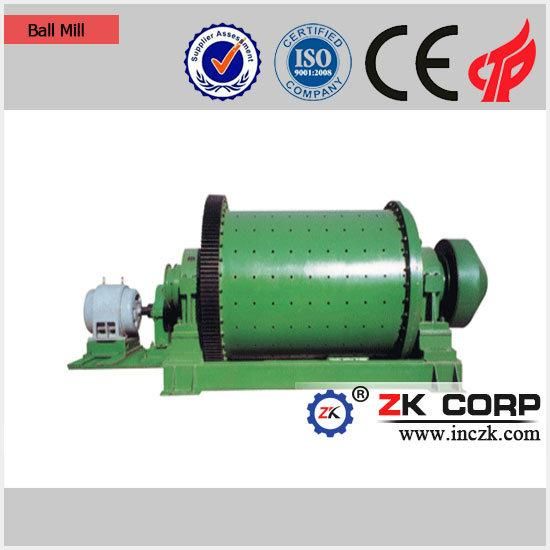

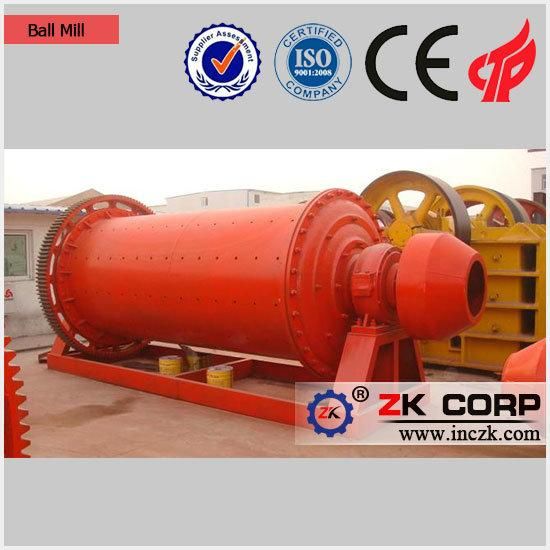

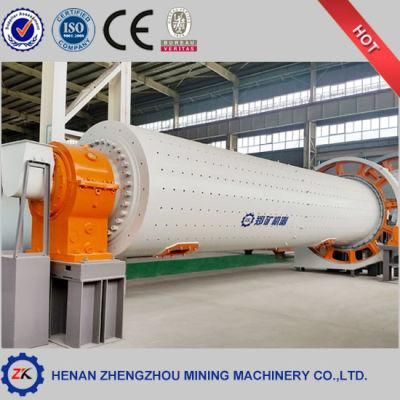

Stone Ball Mill Machine for Limestone, Dolomite
HENAN ZHENGZHOU MINING MACHINERY CO., LTD was founded in 1956, after more than half a century of development, has now become a domestic first-class modern machinery manufacturing enterprises. Product marketing at home and abroad.

Energy-Saving Ball Mill are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced. Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills. Ball mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.



New ball mill Features:
1. With high percentage of sand: A material through the machine, the sand content of up to 75%.
2. Ball mill components and supporting equipment production line can produce a variety of closed-circuit size of the product.
3. High efficiency: The ball mill used for making coarse and fine sand is more efficient
4. High utilization rate of wear parts: The machine is uniform from top to bottom in the roller wear, unlike roller mill in central depression have to be replaced.
5. The failure rate is low: The special machine ball mill's structure and sealing roller make it run more stable and more durable.

Mill Working Principal:
This machine is a horizontal type cylinder rotary device and outside the cylinder there is drive gear which drives the cylinder to rotate during the working process. Materials spirally and evenly go into the first cabin of the grinding machine through the feeding hollow shaft from the feeding device, and inside the first cabin, there are ladder lining boards or ripple lining board in which there are many steel balls with different specifications. The cylinder rotates and produces eccentric force to bring the steel balls to a certain height, and then the steel balls will fall down to impact and grind the materials. After being coarsely ground in the first cabin, the materials will go through the singlelayer partition board and into the secondary cabin in which there are flat lining board, and in the lining board there are steel balls to further grind the materials. Finally the powdery materials will be discharged from the discharging grating bar to complete the powder grinding process.




Specification mm	Drum Rotary Speed r/m	Ball Loading t	Feeding   Granularity mm	Discharging Granularity mm	Output   t/h	Motor Power kw	Weight t
900× 1800	38	1.5	≤ 20	0.075-0.89	0.65-2	18.5	3.6
900× 2400	38	2.7	≤ 20	0.075-0.89	1.1-3.5	18.5	4.1
900× 3500	38	2.7	≤ 20	0.075-0.89	1.1-3.5	22	4.6
1200× 2400	32	4.8	≤ 25	0.075-0.6	1.5-5.8	45	12.5
1200× 4500	32	6	≤ 25	0.074-0.4	1.6-6	55	12.8
1500× 3500	32	7	≤ 25	0.074-0.4	1.6-5.8	75	13.8
1500× 3500	32	7	≤ 25	0.074-0.4	1.6-5.8	75	13.8
1500× 5700	27	15	≤ 25	0.074-0.4	3.5-6	90	24.7
1830× 3600	24	11	≤ 25	0.074-0.4	4-10	155	28
1830× 6400	24	23	≤ 25	0.074-0.4	6.5	210	36
1830× 7000	24	25	≤ 25	0.074-0.4	7.5	245	38

Our service: Training & Service

Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment,
according to your special demand.
Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators
and finishing the check and accept together with you.

After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

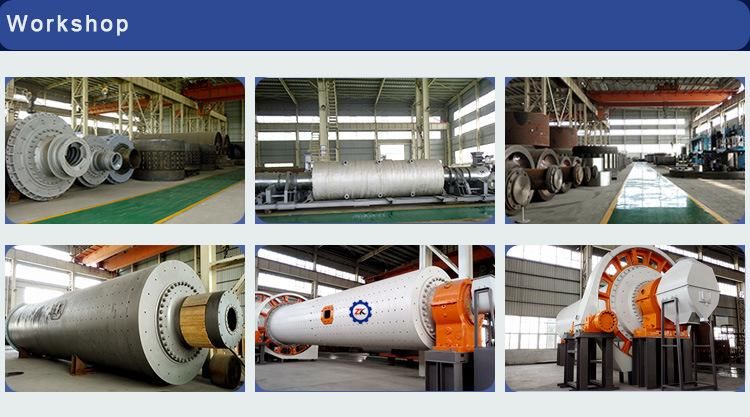

Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you with the most suitable products with the reasonable price.

FAQ:

Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.

Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.

Q: What should I take care when using the machine?
A: Keep the machine away from thinner and other chemical liquid.

Q: How to maintain the machine?
A: Check the connection part and clean the screen frame regularly.

Q: How can I pay my order?
A: We accept T/T, Western Union, Alibaba Trade Assurance payments. For those orders less than 1000USD, we accept PayPal to pay.

Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
