• Model NO.：PEW series
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Standard Container
• Specification：Iso9001: 2008 SGS
• Trademark：Zenith
• Origin：Shanghai, China
• HS Code：8474209000
• Production Capacity：50-800tph

Basic Info.

Model NO. PEW series Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Standard Container Specification Iso9001: 2008 SGS Trademark Zenith Origin Shanghai, China HS Code 8474209000 Production Capacity 50-800tph

Product Description

jaw crusher price india introduction

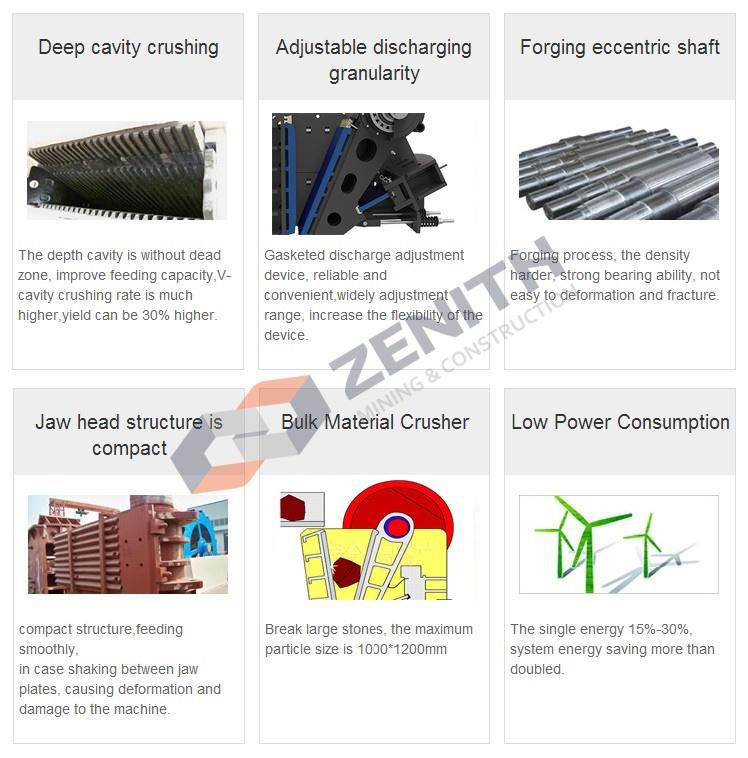

PEW series Jaw crusher features big crushing ratio, reliable operation, easy maintenance and low operating cost. It is the new generation product designed and produced by Zenith, basing on our 30 year's crusher production experience and the latest design conception. It does be one high efficiency and low cost crushing machine.


jaw crusher price india application:

PEW series jaw crusher is a new type of crusher designed by our company which is following the traditional jaw crusher. The bearing of PEW jaw crusher using integral cast steel structure, improve the stability of the whole, More to meet the automated production needs of customers.
[Feed size]: 150-930mm
[Production capacity]: 45-800T / h

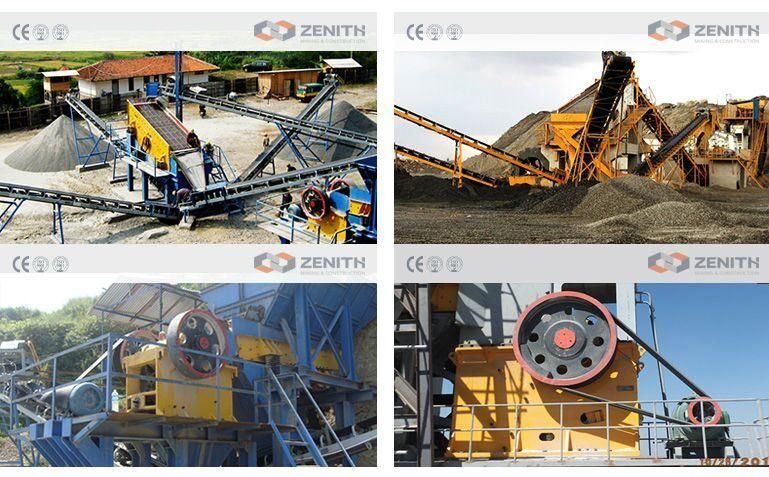

[Applications]: Ore crushing, construction aggregate production, construction waste crushing, water conservancy and hydropower engineering, highway, railway, bridge construction and other industries.
[Applicable Materials]: Granite, marble, basalt, limestone, quartz stone, river gravel, iron ore, copper ore, etc.



jaw crusher price india working principle:


This crushing machine working theory is: The motor drives belt and belt wheel, the eccentric shaft causes the movable jaw to move down and up, forward and backward, the angle between toggle plate and movable jaw becomes bigger when the movable jaw moves up, so that the movable jaw moves toward the fixed jaw, and the materials are pressed, crushed, or cut, as a result, the aim of crushing is accomplished.


The angle between toggle plate and movable jaw becomes smaller when the movable jaw moves down, the movable jaw leaves the fixed jaw because of the function of drag link and spring, here the crushed materials are discharged from the bottom hole of crushing chamber. Along with the continuous turning of motor, the movable jaw of crusher moves periodically to crush and discharge materials, so that the mass production is obtained.


jaw crusher price india technical data:



Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PEW250×1000	250×1000	220	20-40	330	6-37	Y250M-6/37	1400×1850×1310
PEW250×1200	250×1200	220	20-40	330	6-37	Y250M-6/37	1400×2050×1310
PEW400×600	400×600	350	35-85	250	6-37	Y250M-6/37	1920×1460×1840
PEW760	760×1100	620	75-200	270	6-110	Y315L1-6/110	2600×2500×2200
PEW860	860×1100	720	100-225	240	6-132	Y315L2-6/132	3300×2320×3120
PEW1100	1100×1200	930	150-275	210	8-185	Y355L1-8/185	4140×2660×3560
