• Model NO.：LQ-WSM-55KW
• Brand：Keentool
• Item：Wire Saw
• Main Motor：55kw
• Diameter of Driving Wheel：800mm
• Linear Speed：0-40 M,S
• Length of Wire：20-120 Meters
• Dimension(L*W*H)：2*1.3*1.4mm
• Weight：2.5t
• Transport Package：Crate+ Steel Frame
• Specification：2M*1.3M*1.4M
• Trademark：KEENTOOL
• Origin：Quanzhou
• HS Code：84641090
• Production Capacity：30PCS,Month

Basic Info.

Model NO. LQ-WSM-55KW Brand Keentool Item Wire Saw Main Motor 55kw Diameter of Driving Wheel 800mm Linear Speed 0-40 M/S Length of Wire 20-120 Meters Dimension(L*W*H) 2*1.3*1.4mm Weight 2.5t Transport Package Crate+ Steel Frame Specification 2M*1.3M*1.4M Trademark KEENTOOL Origin Quanzhou HS Code 84641090 Production Capacity 30PCS/Month

Product Description

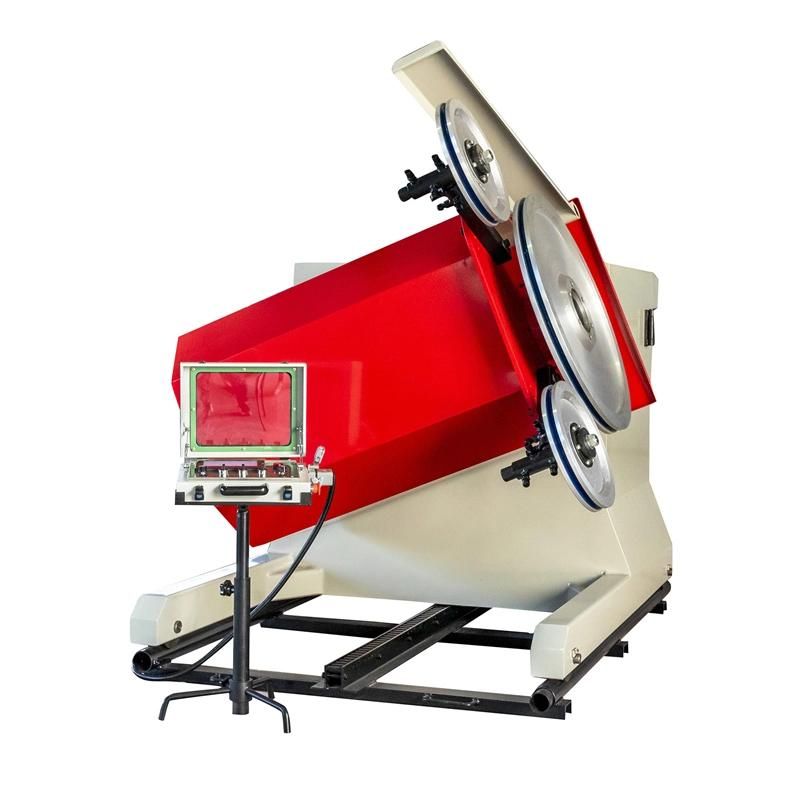

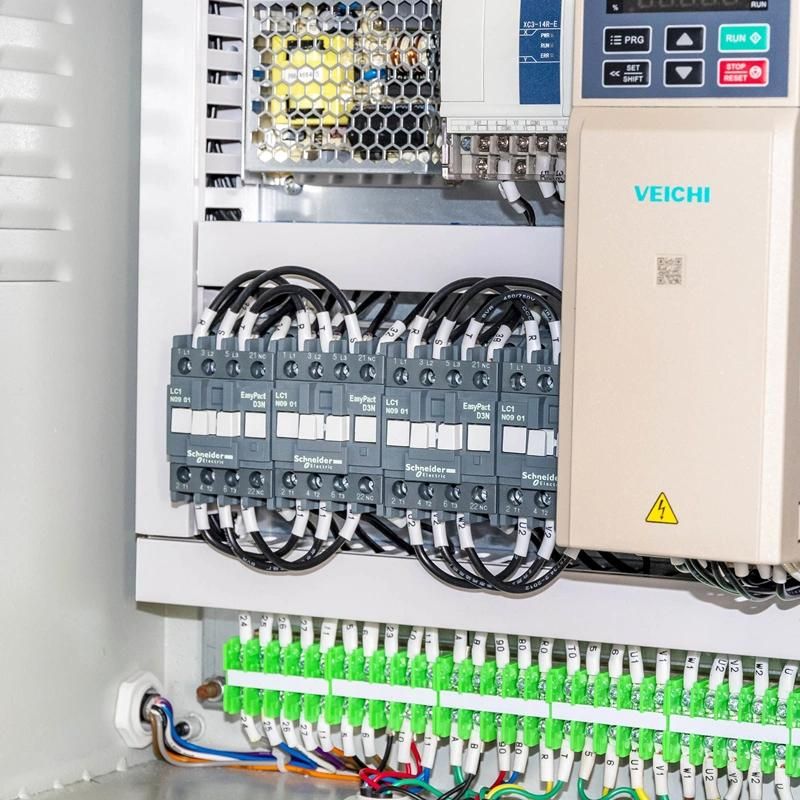

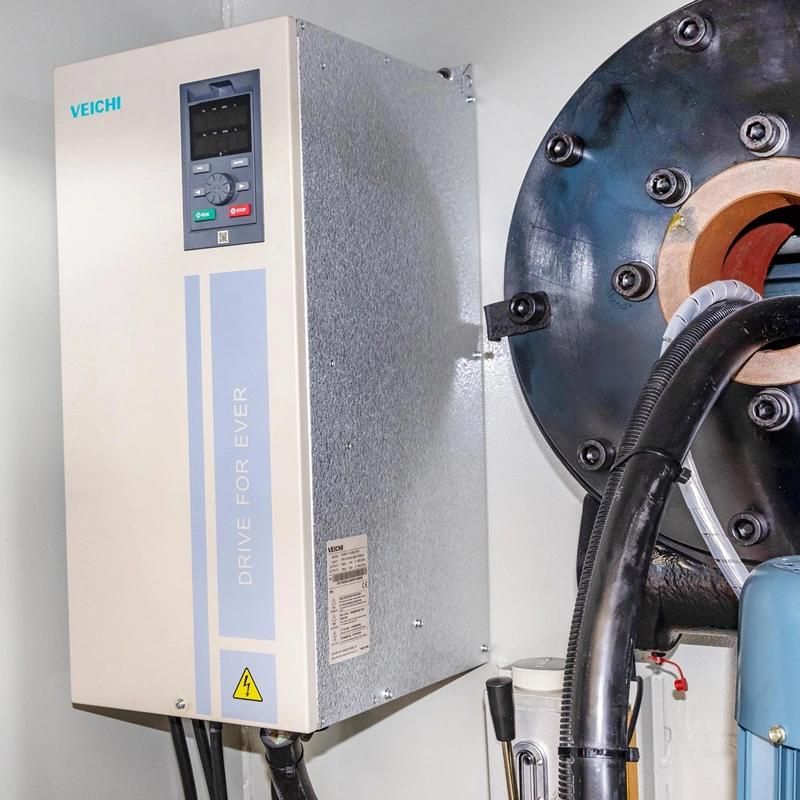

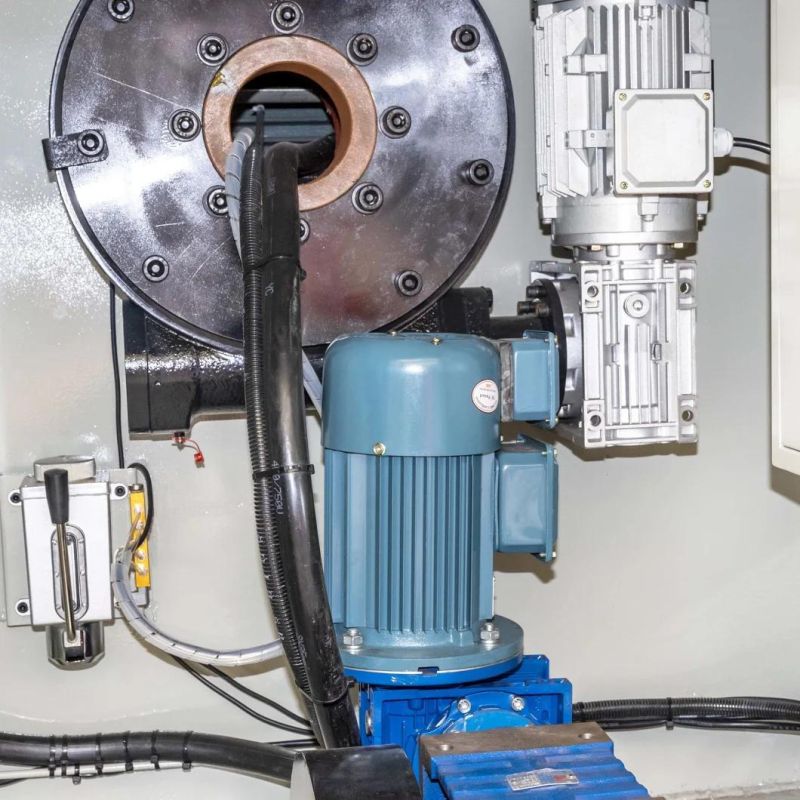

The electrical control system of our wire saw machines are with PLC and two inverters that allow to variable linear speed of wire from 0-40 M/S. The translation and 360 degree rotation of flywheel-holder head of wire saw machines are motorized and allow an easy and fast positioning of the machine, as well as the execution of two parallel cuts. All the movement of the wire saw machines are motorized and an automatic mechanism keeps always constant and programmed tension of diamond wire in working conditions. Our Wire Saw Machines are with Safety devices that shut off the machine in case of wire breakage, over voltage, over electric current, over heating of motor, incorrect maneuvers etc. The greatest advantage of our wire saw machines are safe cutting and good diamond wire durability as well as being user friendly.

1-Variable wire speed range from 0-40 M/S
2- Automatic step-less tensioning system to keep the wire always in optimal working condition.
3. Motorized rotation of driving wheel holder from 0-360⁰ with limit protection for over movement.
4. Motorized lateral extension of flywheel shaft position +/- 350-400mm with limit protection for over movement.
5- Maximum travel speed on rail without loading 1.75 Meters/Min.
6- Safety alarm and stop system in case of unexpected wire break or any other faults.
7- Distant control with very simple panel to operate the saw with better safety easier understanding to the operator.
8-Separate automatic reset selection switch to control the rotation and lateral extension movement; which can be take off when it is no need.
9-20 second main motor start alarm sound and flash light to warn around people leave away.

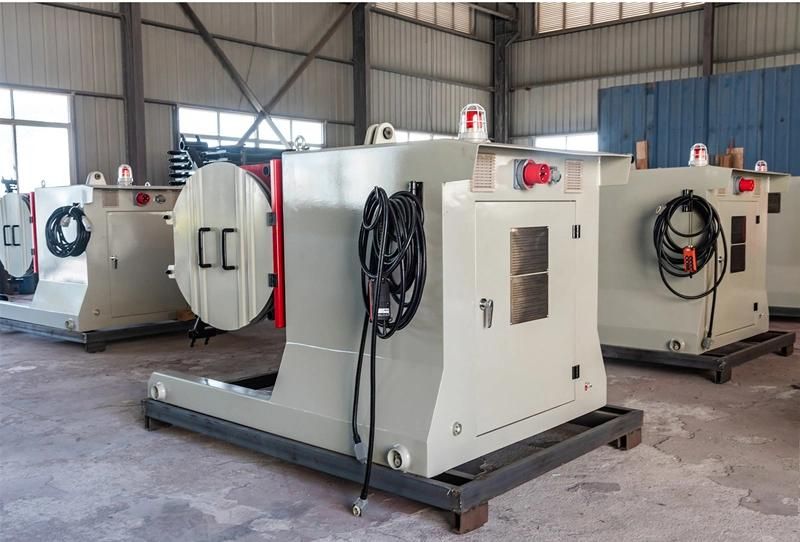

10-Big and strong steel frame with dimension of 2m length, 1.4m width and 1.3meter height which allows more inside space for easier maintenance and repairment.
11-General gross weight: 2500-3400kgs; General volume dimension:4-7cubic meter (with packing)
Remarks:
1-Standard power supply is 3-phases, 380Volts, 50Hz, other types could be ordered by customer.
2-We are in a position to design the Wire Saw Machines as per customer special requirement.

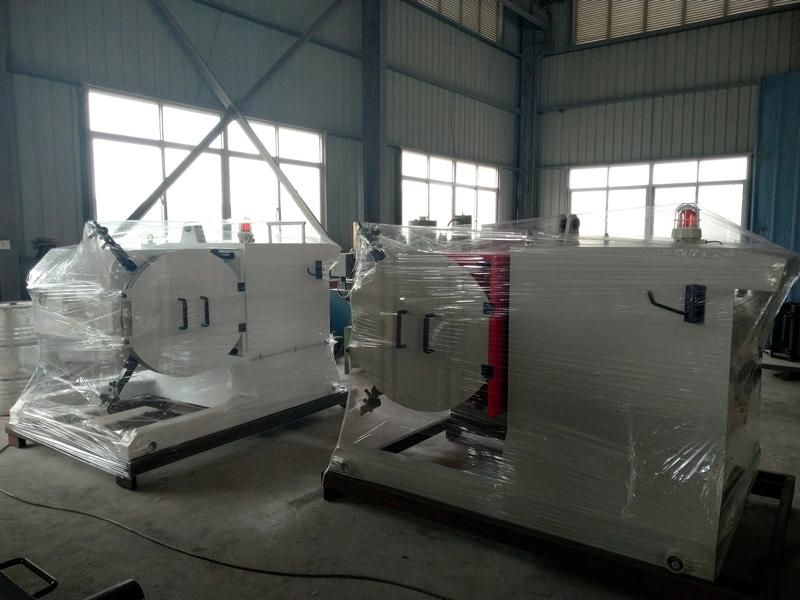

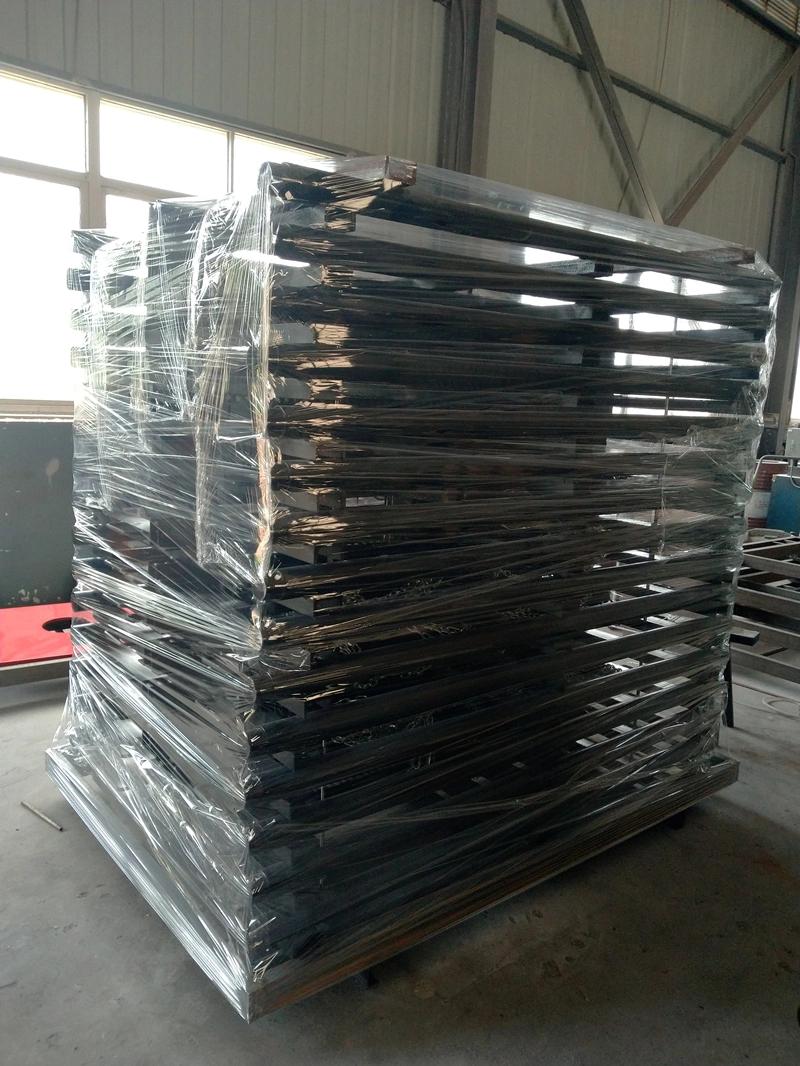

Package: Crate with waterproof plastic
Delivery time: Within 14 days after confirmation of payment
