• Model NO.：HLCNC-3319
• Automation：Automatic
• Control：CNC
• Motor Power：7.5W
• Engraving Head Speed Adjustability：Wide Adjustable Range
• Certification：CE, ISO
• Current：380V
• Application：Stone Industry
• Customized：Customized
• Tools：Router and Grinder
• Guide Rail：Linear Guide
• Dimensions of Working Table：3300*1900
• Gearing：Rack Gear
• Max. Processing Length and Width：3300mm,1900mm
• Tools Change：Automatcially
• Tools Change Positions：20
• Color：Red and Ivory
• Vacuum Cup：Included
• Stroke(X-Axis)：3300mm
• Stroke(Y-Axis)：1950mm
• Stroke(Z-Axis)：320mm
• Power：7.5kw
• Rotating Speed：0-8000rmp
• Tool Holder Model：40bt
• Transport Package：Polypropylene Plastics Packing
• Trademark：Hualong
• Origin：Putian, Fujian, China
• HS Code：84641010
• Production Capacity：50PCS,Month
• Package size per unit product：553.00cm * 320.00cm * 230.00cm
• Gross weight per unit product：5000.000kg

Basic Info.

Model NO. HLCNC-3319 Automation Automatic Control CNC Motor Power 7.5W Engraving Head Speed Adjustability Wide Adjustable Range Certification CE, ISO Current 380V Application Stone Industry Customized Customized Tools Router and Grinder Guide Rail Linear Guide Dimensions of Working Table 3300*1900 Gearing Rack Gear Max. Processing Length and Width 3300mm/1900mm Tools Change Automatcially Tools Change Positions 20 Color Red and Ivory Vacuum Cup Included Stroke(X-Axis) 3300mm Stroke(Y-Axis) 1950mm Stroke(Z-Axis) 320mm Power 7.5kw Rotating Speed 0-8000rmp Tool Holder Model 40bt Transport Package Polypropylene Plastics Packing Trademark Hualong Origin Putian, Fujian, China HS Code 84641010 Production Capacity 50PCS/Month

Packaging & Delivery

Package size per unit product 553.00cm * 320.00cm * 230.00cm Gross weight per unit product 5000.000kg

Product Description

3 axes CNC stone  processing center with the model of  HLCNC3319, is a professional countertop making and polishing machine. The max tools which can be hung are 20 pcs and because of mechanical main spindle used, the cutting and polishing speed is faster than others, and the finished processing products are excellent both inside and outside edges.

With high automaticity, it's easy to operate when using. The main application is listed as followings.

1. Applicable material: all kinds of stone, marble, manmade stone, quartz stone, granite, etc.

2. CNC stone processing center can do many processes, such as drilling, grinding, mainly used for kitchen countertop, bathroom vanity top making by automatic tools changing.

3. It's  maingly featured wtih high efficiency and low processing cost. Router can walk 50cm/ min, and grinder 1m/min.

4. It is easy to operate. There are some common used drawings in map storage, so just select the shapes you want to cut and adjust the cutting size, press "Start", and then the machine can finish job automatically.

5. Linear guideway in  "X, Y, Z" axis to guarantee accuracy and speed


6. Electric components in international standards to be easily sourced

7. Full machine can be loaded in 20 GP container.

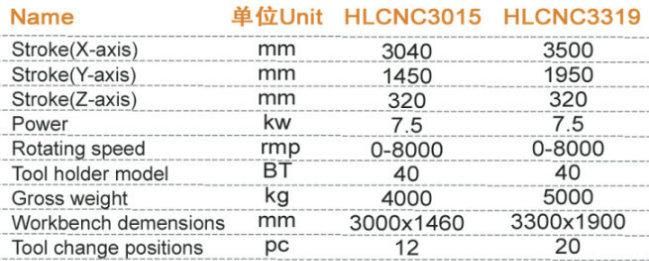

Technical data of the machine shown as below

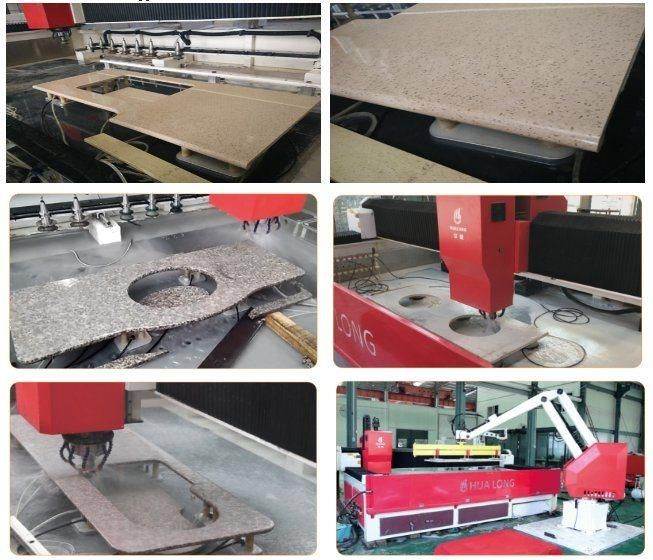

The finished products that our machine can process are shown as followings
