• Model NO.：800-4D-1
• Grinding Method：Dry and Wet Grind
• Certification：ISO, CE
• Condition：New

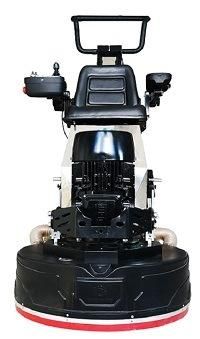

• Name：800-4D Remote Control Planetary Floor Grinder
• Power：15kw,20HP
• Rotating Speed：450-1950rpm
• Weight：600kg,1323lbs
• Voltage Amperage：380-440V,30.7A Three Phase
• Working Width：800mm(256mm*4)
• Inverter：380V 18.5kw,25HP
• Disc Diameter：256mm
• Package Type：Standard Wooden Case
• Usage：Grinding on Concrete, Marble, Terrazzo, Epoxy Floor
• Transport Package：88*142*152cm
• Specification：88*142*152cm
• Trademark：HIGH TECH GRINDING
• Origin：China
• HS Code：84642090
• Production Capacity：1000

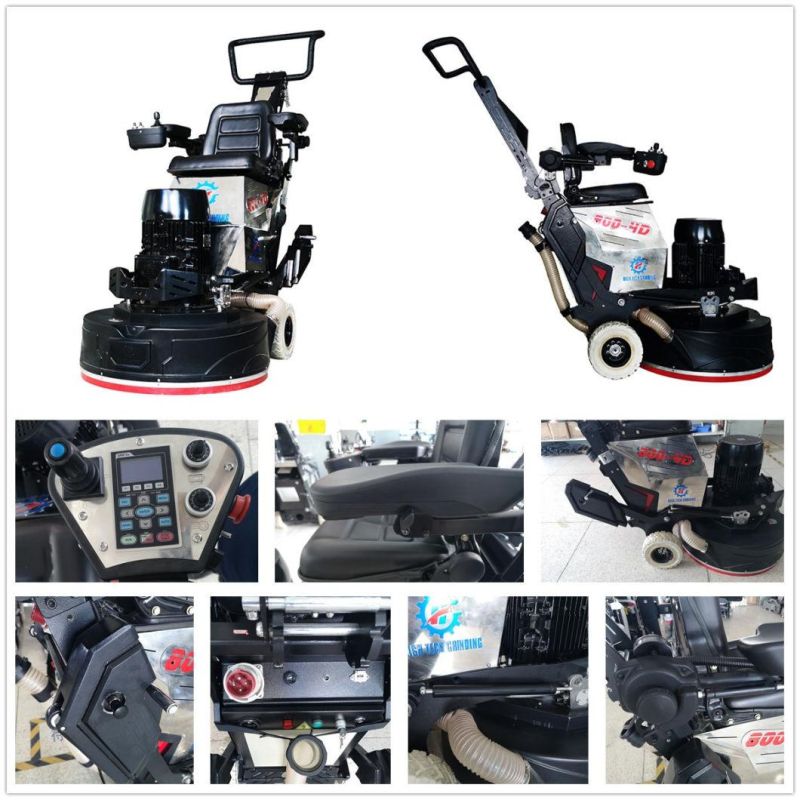

Production Details


1.Equip with a seat which can be adjusted forward and backward,enable the global floor labors to work with
   happiness and easiness.Ride on 800-4D and have a wider field of view,helping you to know every details
   of the floor ground.

 2.Four-head planetary rotating system produces a counter centrifugal force,which makes the machine work
   smoothly and stably.The counter centrifugal force and 600kg of grinding pressure make the machine work
   more efficiently.The stable driving system makes the grinding effect more evenly.

 3.Floating dust cover prevents the grinding pads from flying out due to foreign matters on the floor ground and
   hurt people.Adjust automatically according to the condition of floor to prevent dust from overflowing.What's
   more,there is no need to re-install the dust cover when changing the grinding discs.

 4.Extra weight with auxiliary elastic rods to reduce the force of using extra weight.The extra weight can be
   setting in three levels:increasing,normal grinding and reducing grinding pressure.

 5.The control penel is next to the armrest,which is easy to operate.And the operating status of the floor grinder
   can be grasped at anytime through the LCD screen on control panel.You can sit on the machine and operate
   with the control panel on your right side.

 6.Compare with the traditional floor grinder,the operator can sit on the machine and follow the machine to move
   forward and backward,the legs are not sour,feet aren't painful,and the work is finished excellent.

Package and Shipment

1.Do Quality Testing Before Packing;
2.Pack Machine With Poly-wooden Box;
3.Reinforce the Wooden Case and Label the Mark;
4.Send Them to Empty Place for Loading;
5.Load the Container;
6.The Thickness of Crate is 1.57inch.

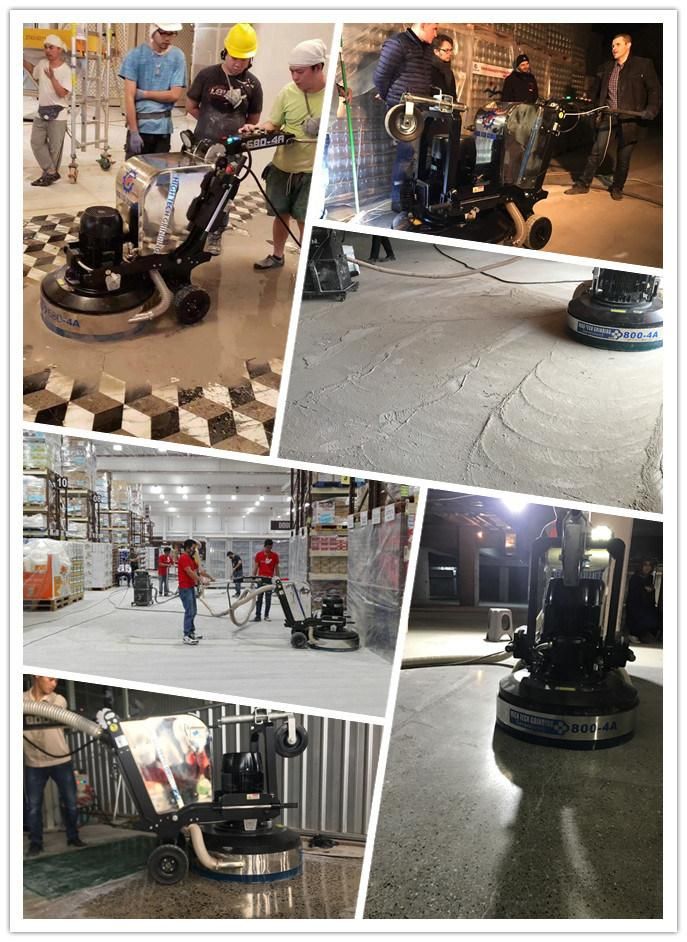

Customer Demo

Our company doing manufacturing and projects, we have floor engineering company doing all kinds
of floors around, and we fly to Egypt, Brunei, Malaysia, Thailand, Canada and Australia etc countries
doing polishing and guilding clients, we can provide the system products for your flooring business
with factory price and quality control advantages.

Our Certisfication

Owned many national certificates:CE,ISO9001,TUV,SGS,etc.
Awarded with more than 120 patents,sold to more than 120 countries.

Company Information

Xingyi Enterprise,one of the biggest system integrators who specialized in producing,developing and providing
floor polishing products and services. From the research and development,production of floor grinding
machine to the attempt and innovation of floor polishing and beautification, Xingyi has always been at the
frontier of technology.
Xingyi's Mission:Enable the global floor labors to work with health,relax and happiness.
For this mission,we constantly try, innovate and change to meet your needs.

If you have any problems,please don't be hesitate to contact us,thank you!
