1815 2 Heads Heavy Duty Stone/Marble CNC Router Machine

Jinan Guanjiahong CNC Machinery Co., Ltd.
  • Function：Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
  • Application Material：Granite
  • Automation：Automatic
  • Control：CNC
  • Motor Power：High Power
  • Certification：CE, SGS

Base Info

  • Model NO.：GJH 1815-2-2
  • Current：AC
  • Application：Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
  • Customized：Customized
  • Control System：Nc Studio, Shanghai
  • Guild Rail：PMI , Hiwin Square Rail
  • Ball Screw：PMI, Taiwan
  • Derive Motor：Yaskawa Servo
  • Transport Package：Plywood Case
  • Specification：SGS
  • Trademark：DONGTONG
  • Origin：Shandong China
  • HS Code：84609090
  • Production Capacity：50 Sets Per Month

Description

Basic Info.

Model NO. GJH 1815-2-2 Current AC Application Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Control System Nc Studio, Shanghai Guild Rail PMI / Hiwin Square Rail Ball Screw PMI, Taiwan Derive Motor Yaskawa Servo Transport Package Plywood Case Specification SGS Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per Month

Product Description

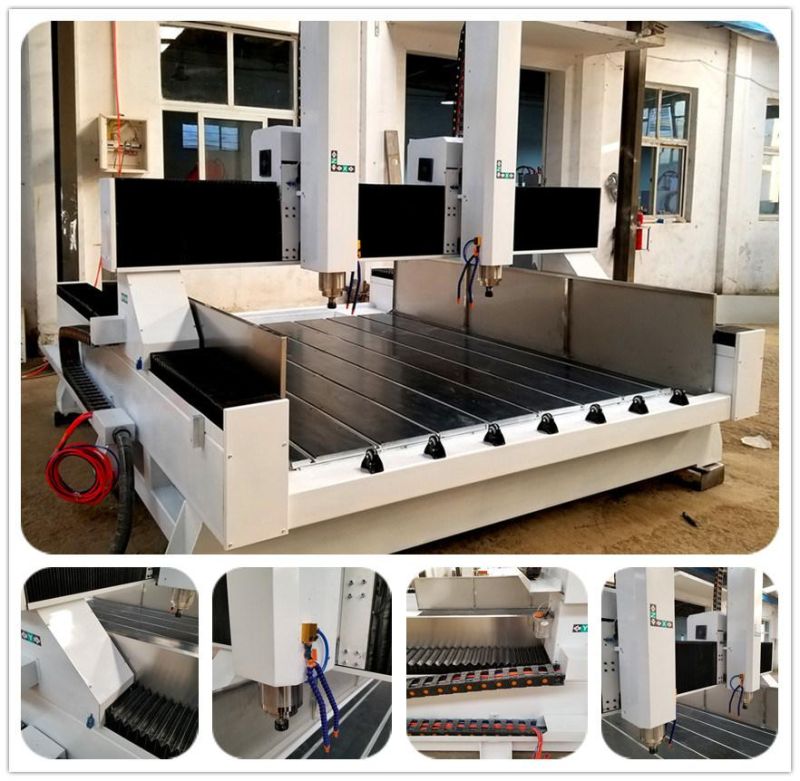

GJH-1815-2-2 Heavy duty stone / marble Cnc Router machine from professional cnc router machine manufacturer.


1815 2 Heads Heavy Duty Stone/Marble CNC Router Machine
1. Model: GJH-1815-2-2
2. Internationally advanced NC studio system which have memory of breakpoint can guarantee
    resumpti on of processing in case of  incident (breaking) or of work of the previous day.

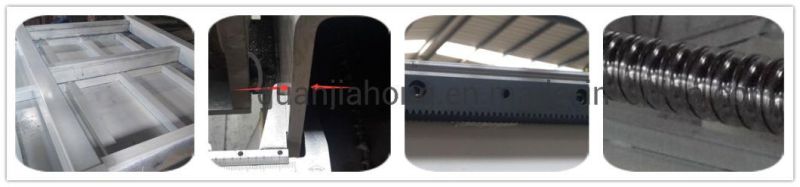

3. Imported linear square rails, double big slider, loading capacity,  smooth operation, high precision,
    long life, accurate operation.

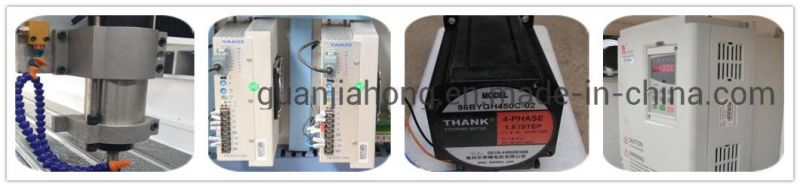

4. Constant power spindle motor, strong and accurate cutting, high efficiency.
1815 2 Heads Heavy Duty Stone/Marble CNC Router Machine


1815 2 Heads Heavy Duty Stone/Marble CNC Router Machine

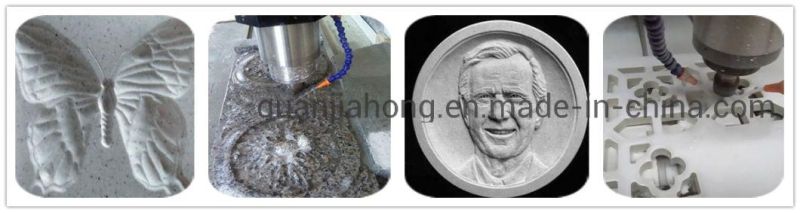

Granite, marble, bluestone, sandstone, glass and stone carving.


1815 2 Heads Heavy Duty Stone/Marble CNC Router Machine
NOPerformance indexPerformance indexParameter
1 Working area X area1800mm
   Y area1500mm
   Z area300mm
2 Table size 1800mm*2500mm
3 Accuracy Working precision0.05mm
   Repositioning precision0.05mm
4 Drive mode X axis Helical rack and pinion gear
   Y axis Helical rack and pinion gear
   Z axis Ball screw
5 Speed Max traverse speed30000mm/min
   Max engraving speed8000mm/min
6 Spindle (water-cooling) Spindle power5.5KW
   Spindle speed0_24000r/min
7 Working mode Stepper
8 Operating voltage AC220V/50HZ
9 Command code G code
10 Operating system NC Studio
11 Net weight 2520KG


1815 2 Heads Heavy Duty Stone/Marble CNC Router Machine
1815 2 Heads Heavy Duty Stone/Marble CNC Router Machine

1815 2 Heads Heavy Duty Stone/Marble CNC Router Machine


1815 2 Heads Heavy Duty Stone/Marble CNC Router Machine
1815 2 Heads Heavy Duty Stone/Marble CNC Router Machine


1815 2 Heads Heavy Duty Stone/Marble CNC Router Machine
1815 2 Heads Heavy Duty Stone/Marble CNC Router Machine


1815 2 Heads Heavy Duty Stone/Marble CNC Router Machine
Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.

After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. Free training advice towards our machine in ourfactory.
4. Free suggestion and consulting, technical support and service by email/fax/tel and
   tel and lifetime technical support.

If you have specific requirement for heavy duty stone cnc router, customization is savailable.
