• Model NO.：PF
• Finished Surface：Outer Surface Process
• Certification：CE, ISO
• Condition：New
• Color：Iron Grey
• Installatuon：Under The Guidance of Engineer
• After-Sale Service：Training, Technical Support, etc.
• Usage：Ore, Rock, Stone, etc.
• Warrenty：1 Year
• Delivery Time：7-15 Working Days
• Price Advantage：Accept The EXW and Offer Loweast Factory Price
• Factory Visit：Welcome
• Transport Package：International Packing Standard
• Specification：ISO, CE, SGS
• Trademark：TYM
• Origin：Henan, China
• HS Code：8474201000
• Production Capacity：39 Sets,Month

Basic Info.

Model NO. PF Finished Surface Outer Surface Process Certification CE, ISO Condition New Color Iron Grey Installatuon Under The Guidance of Engineer After-Sale Service Training, Technical Support, etc. Usage Ore, Rock, Stone, etc. Warrenty 1 Year Delivery Time 7-15 Working Days Price Advantage Accept The EXW and Offer Loweast Factory Price Factory Visit Welcome Transport Package International Packing Standard Specification ISO, CE, SGS Trademark TYM Origin Henan, China HS Code 8474201000 Production Capacity 39 Sets/Month

Product Description

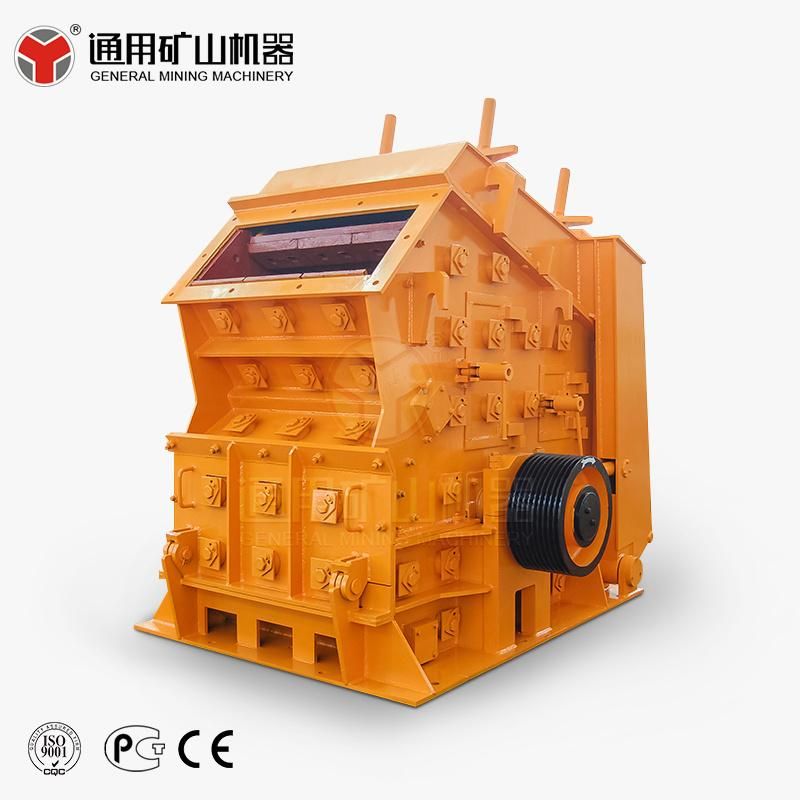

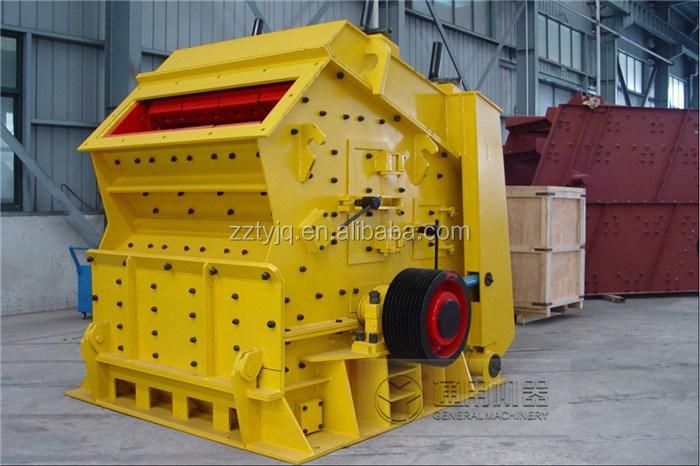

PF series hard rock counter-attacking crusher
Rock Crusher Crushing Equipment Iron Ore Crushing Plant Impact CrusherProduct introduction of Rock Crusher Crushing Equipment Iron Ore Crushing Plant Impact Crusher
The PF series hard rock counter-attacking crusher absorbs the domestic and foreign advanced technology. The hard rock whose granularity is less than 60-300mm can be processed. The granularity of 80% finished products is less than 30mm. The output of product is shaped as cube. The crusher is the first choice to make aggregates for high level road and hydraulic electricity industry.
 Working principle of Rock Crusher Crushing Equipment Iron Ore Crushing Plant Impact Crusher

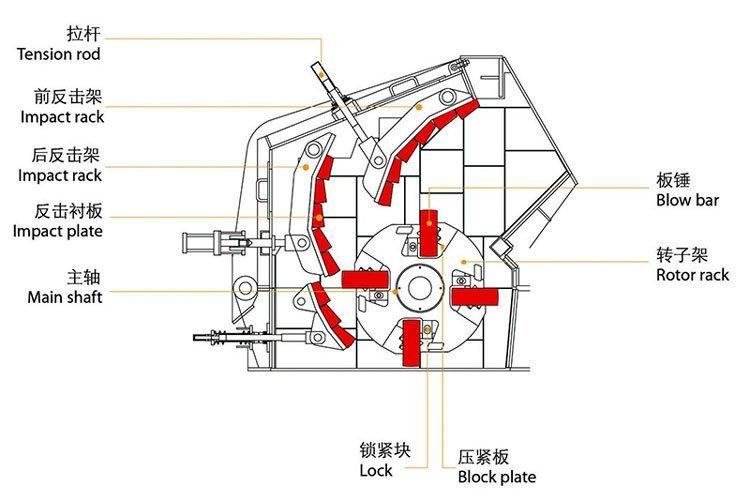

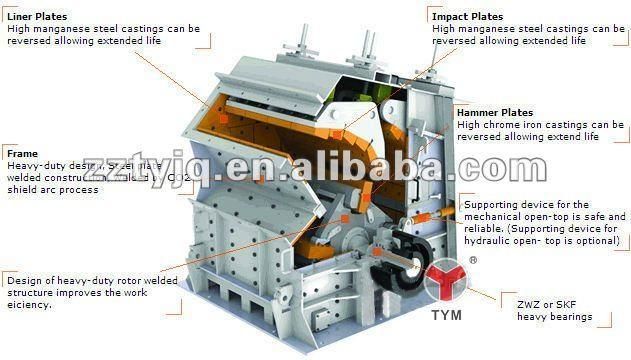

When the hard rock counter-attacking crusher works, the electric motor drives the rotor where installed hammers to rotate with high speed. When the materials get into the area which the hammers can be effective, under the impact function of the hammers at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers can be effective to be crushed again. The materials' size from big to small all will be crushed in the impact chamber repeatedly. The process won't stop till the material are crushed to the required size and then will be discharged from outlet.
 Technical date of Rock Crusher Crushing Equipment Iron Ore Crushing Plant Impact Crusher

Type	Rotor size (mm x mm)	Feeder Opening(mm)	Feeding Size (mm)	Production Capacity (t/h)	Motor Power (KW)	Weight (t)
PF-1007	Φ1000×700	400×730	300	35-50	37-55	9.45
PF-1010	Φ1000×1050	400×1080	350	50-80	55-75	12
PF-1210	Φ1250×1050	400×1080	350	70-120	110-132	14
PF-1214	Φ1250×1400	400×1430	350	80-160	132-160	18.58
PF-1315	Φ1320×1500	860×1520	500	160-260	180-260	24.2

Features and Benefits of impact crusher :
 1.High qualified raw material, less wear, high productivity under any circumstances. Top manufacturing process is the basis for extraordinary machine.
 2.Strong product commonality can reduce cost. Two-cavity impact crusher can becomes three-cavity machine by adding grinding racks, and no need to change other parts.
 3.Heavy type rotor, finite element endurance analysis, optimized design, reasonable structure and enhancing moment of inertia lead to bigger crushing ratio and better abrasion resistance.
 4.Static and dynamic balancing test for the welding rotor should be done before assembling. To make sure the rotor have a smoothly running and long working life.
 5.Main shaft is finished by quality forging, adopts keyless design and world advanced cover tightening connection to ensure the reliable working and make the maintenance easier.
 6.Unique locking device for hammers makes the tightening moment of force more safe and bigger. And the replacement of hammers can be more simple and convenient.
 7.Standard design for liners increase the interchangeability, decrease the repertory and variety of liners.
 8.Simple but practical locking device lock the shell 1 and shell 2 together. This device has a easy operation and saves locking time.
 9.Unique hydraulic device design is convenient for opening the fame racks to replace wear parts and adjust the discharge size.
10.Simple structure for impact racks and grinding racks. Easy operation, long working life, convenient maintenance and low cost.
