• Model NO.：2PG400*250
• Finished Surface：Thread Process
• Certification：CE, ISO
• Condition：New
• Color：as Requirements
• Brand：Hengxing
• Price：Lowest Price for The Same Parameter
• Drawing：Offer
• Installation：Engineer Oversea Service
• Yield：13-35t,H
• Power：30kw
• Weight：4500kg
• Warranty：1 Year
• After Sale Service：Supply for The Using Life
• Name：Low Price 2 Roller Stone Crusher From China Facto
• Transport Package：Standard Container, Small Parts by Wooden Box
• Specification：ISO, CE
• Trademark：HengXing
• Origin：China
• Production Capacity：100sets One Year

Basic Info.

Model NO. 2PG400*250 Finished Surface Thread Process Certification CE, ISO Condition New Color as Requirements Brand Hengxing Price Lowest Price for The Same Parameter Drawing Offer Installation Engineer Oversea Service Yield 13-35t/H Power 30kw Weight 4500kg Warranty 1 Year After Sale Service Supply for The Using Life Name Low Price 2 Roller Stone Crusher From China Facto Transport Package Standard Container, Small Parts by Wooden Box Specification ISO, CE Trademark HengXing Origin China Production Capacity 100sets One Year

Product Description

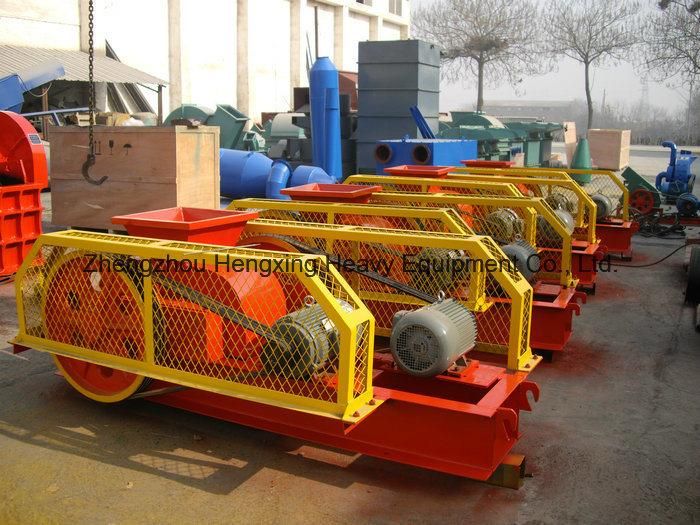

Low Price  2 Roller Stone Crusher From China Factory   :
2 roller stone crusher   is also called double roll crusher, roller crusher, teeth roller crusher, and it is suitable for crushing materials whose feeding granularity is smaller than 80mm and whose final granularity is 50mm-20mm. It is widely applied in many industries such as cement, chemistry, power station, mining, metallurgy, building materials, refractory materials and coal.

2 Roller Stone Crusher Machine Working Principle

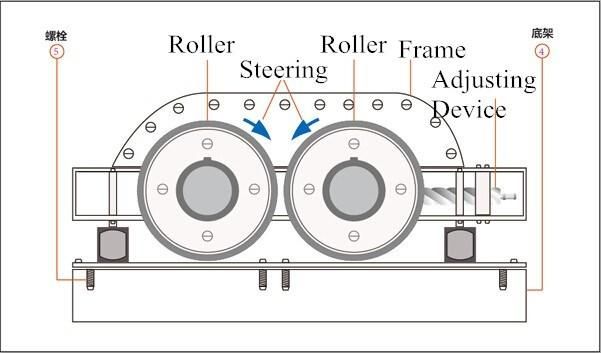

2 roller stone crusher  consists of roll wheel, roll bearing, pressing device, adjusting device and driving device etc. Discharging size adjustment: between two roller equipped with cuneate or gasket adjusting device, top of the wedge device capped with adjustment bolts. When the adjustment bolts pull upward wedge which will bear against the fixed wheel to make it deviate from the movable roller wheel, then the gap between wheels become large, discharging size become bigger, otherwise the opposite, gasket device is through the quantity or thickness to adjust the materials size.

When The 2 Roller Stone Crusher  adding gaskets the gap between wheels become large, when reducing gaskets the gap between wheels become small, so the discharging size becomes small. Driving structure is two motors through triangle belt drive to grooved pulley which drag roller rotating according to relative direction. In crushing stage, material is broken by roll wheel; final product is discharged from chassis. For safety, transmission part should be installed safety guard according to actual situation.


 Features of 2 roller  stone crusher
1). It has simple structure, and takes up smaller space, and the operation and maintenance of this machine is very convenient.
2) This double roll crusher is equipped with safety protection device
3). The operational cost is low, stable operation, high efficiency, saving energy, high crushing efficiency.
4). There is equipped dustproof plant inside the machine and the sealing ability is excellent, so that thereis little powder dust and lower working noises,
so that the working environment is greatly improved.
5). The gap of the roll can be adjusted according to the requirement of the customers

2 Roller Stone crusher Technical Parameter

Model	Feeding size(mm)	Discharging size(mm)	Capacity  (t/h)	Motor Power(kw)	Weight(t)	Dimension(mm)
2PG400*250	<35	<2-8	2-10	5.5*2	1.3	2110*870*810
2PG610*400	<65	<2-20	5-20	15*2	3.9	3510*1420*1030
2PG750*500	<75	<2-25	10-40	18.5*2	9.5	4210*1630*1260
2PG800*600	<80	<2-25	12-45	22*2	10.8	4505*1780*1320
2PG1000*700	<100	<3-30	20-65	30*2	14.9	5310*2175*1595
2PG1200*800	<120	<3-35	35-80	37*2	25.5	6290*2270*1870
2PG1500*800	<130	<3-45	50-120	75*2	33.7	7460*2410*2290
2PG1600*1000	<150	<3-50	60-140	90*2	41.2	8220*2680*2475
