• Model NO.：HSNC-500
• Application：Art & Craft, Stone Industry
• Source Voltage：380V
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Color：Red and Ivory
• Guide Rail：Linear Guide
• Dimensions of Working Table：3300*2000
• Gearing：Rack Gear
• Head Rotation：0,90,180,270 Degree
• Head Tilting：0,45,90 Degree
• Table Rotation：0-360 Degree
• Table Tilting：0-85 Degree
• Max. Cutting Thickness and Length：100mm,3300mm
• Motor：Servo Motor
• Countertop Cutting：Drilling and Milling
• Operation System：Italian Esa Brand
• Software：Italian Pegasus CAD Cam Drawing Software
• Machine Structure：Monobloc Bridge Saw
• Transport Package：Polypropylene Plastics Packing
• Specification：5700(L)*3260(W)*2765(H)
• Trademark：Hualong
• Origin：Putian, Fujian, China
• HS Code：84641010
• Production Capacity：50 Pieces,Month
• Package size per unit product：570.00cm * 326.00cm * 276.50cm
• Gross weight per unit product：5800.000kg

Basic Info.

Model NO. HSNC-500 Application Art & Craft, Stone Industry Source Voltage 380V Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Color Red and Ivory Guide Rail Linear Guide Dimensions of Working Table 3300*2000 Gearing Rack Gear Head Rotation 0/90/180/270 Degree Head Tilting 0/45/90 Degree Table Rotation 0-360 Degree Table Tilting 0-85 Degree Max. Cutting Thickness and Length 100mm/3300mm Motor Servo Motor Countertop Cutting Drilling and Milling Operation System Italian Esa Brand Software Italian Pegasus CAD Cam Drawing Software Machine Structure Monobloc Bridge Saw Transport Package Polypropylene Plastics Packing Specification 5700(L)*3260(W)*2765(H) Trademark Hualong Origin Putian, Fujian, China HS Code 84641010 Production Capacity 50 Pieces/Month

Packaging & Delivery

Package size per unit product 570.00cm * 326.00cm * 276.50cm Gross weight per unit product 5800.000kg

Product Description

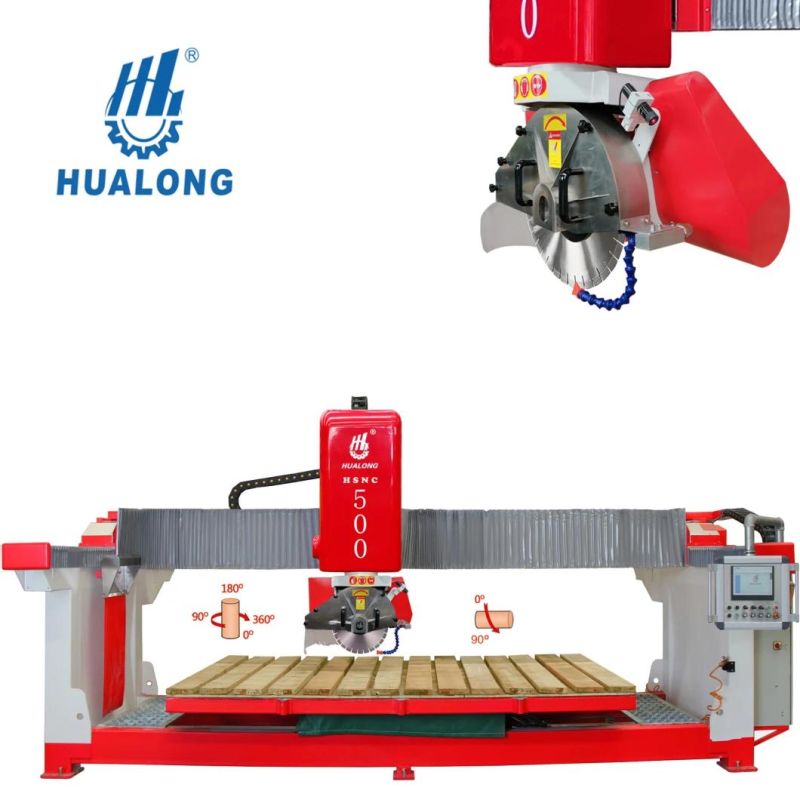

Full Automatic CNC Bridge Stone Cutting Machine HSNC-500 with function of 0°-90°-180°-270° full automatic positioning, chamfering and cutting and countertop drilling and milling,  is suitable for  processing stone slab cut to size, tombstone, skirtboard etc.






Main Features

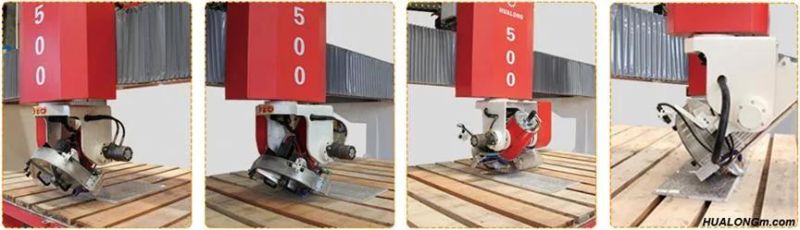

1.Blade can tilt 0-90° ,full automatic vertical and horizontal switch cutting repeatedly by one-button, 0°-90°-180°-270° automatic positioning chamfering cutting.

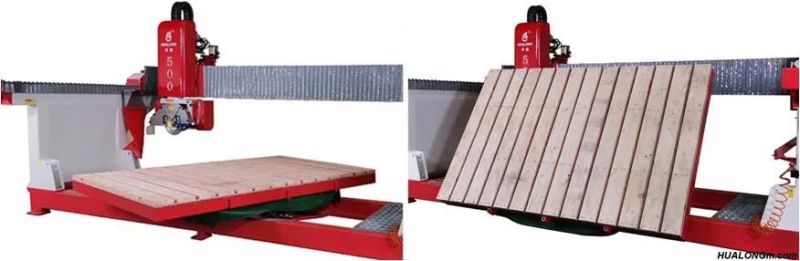

2.Worktable can rotate 0-360° and tilt 0-85°, easy for cutting direction changing and slab loading.

3. Crossbeam and carling adopt Taiwan's Hiwin linear guide to move, which ensure high precision of cutting and long life.

4. Using Italian ESA operation system and Italian Pegasus CAD CAM drawing software.

5. Electric components adopts Siemens or Schneider brand

6. Laser checking and calibration instrument to aid in lining up the cut.

7. Monobloc structural frame is easy for loading, transportation and installation.

8. Countertop Driling and milling, Cutting round and oval shape.



Detailed Images



Linear Guide

Brand: Hiwin

Original: Taiwan, China


Famous products, top quality use on crossbeam and carling for good performance and long lifespan.

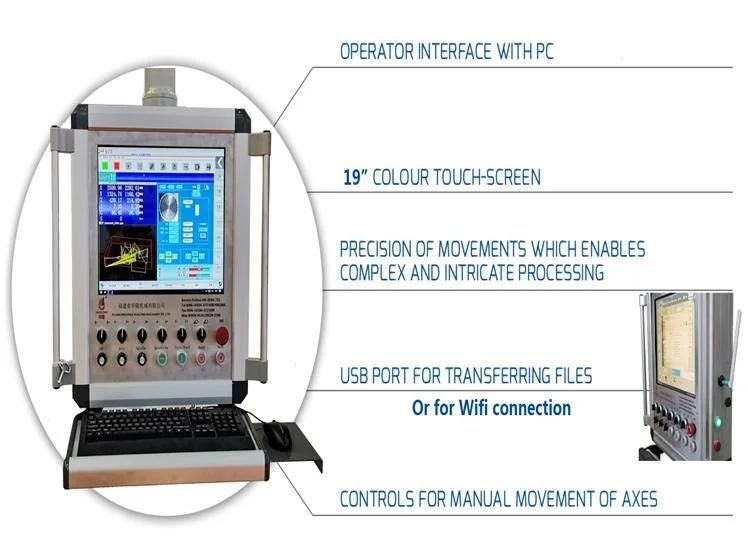

Control system


Brand: Italian ESA operation system

Machine is equipped with Italian ESA servo motor, ESA driver, ESA controller to achieve easy and accurate cutting.

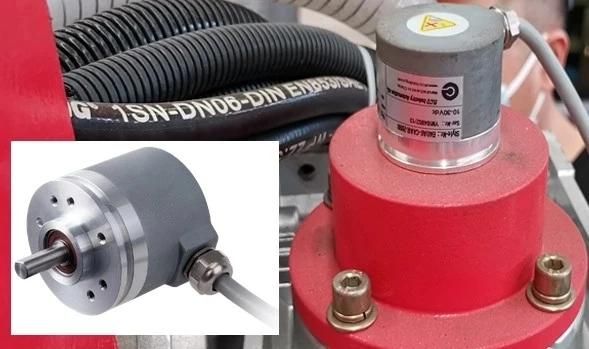

Machine Part

Name: Incremental Encoder

Brand: ELCO from Germany


For the determination of head movement in  X, Y, Z direction and worktable rotation to ensure position precision without the slightest deviation.
