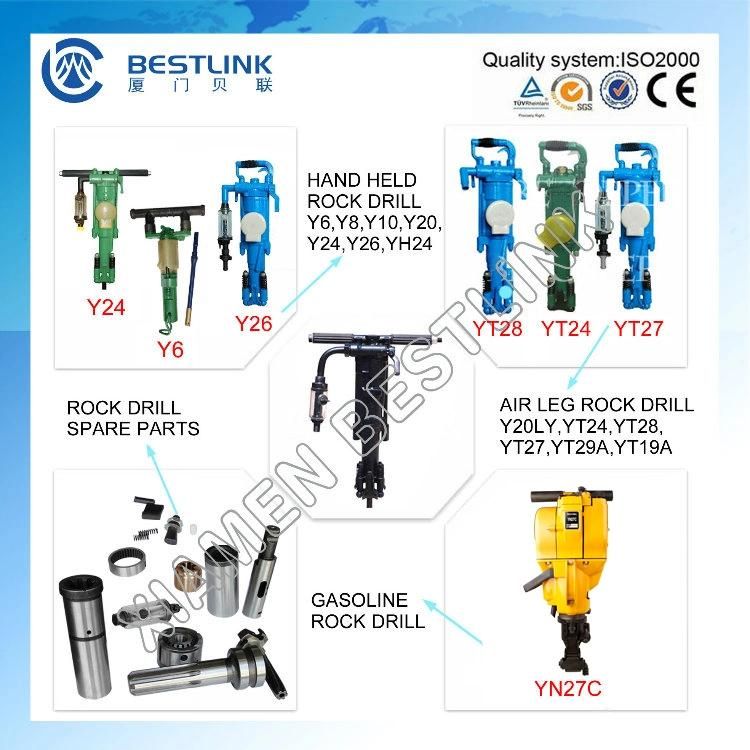

Portable Hand Held Pneumatic Rock Drill Y24 Jack Hammer
Xiamen Bestlink Factory Co., Ltd.- Type:Core Drill
- Drill Direction:Vertical
- Depth of Drilling:0-100 M
- Drilling Speed:0-50 M,H
- Automation:Manual
- Layout:Vertical
Base Info
- Model NO.:Y24 Jack Hammer
- Control:Artificial
- Precision:Normal Precision
- Application:Machinery & Hardware, Construction, Stone Industry
- Certification:CE
- Brand Name:Bestlink
- Certificate:CE
- Drilling Method:Dry Drilling
- Place of Origin:Fujian, China
- Shank:22*108mm or 25*108mm
- Transport Package:Carton
- Specification:68.5*25.8*20.5CM
- Trademark:none
- Origin:Fujian, China
- HS Code:84671100
- Production Capacity:20000PCS Per Month
Description
Basic Info.
Model NO. Y24 Jack Hammer Control Artificial Precision Normal Precision Application Machinery & Hardware, Construction, Stone Industry Certification CE Brand Name Bestlink Certificate CE Drilling Method Dry Drilling Place of Origin Fujian, China Shank 22*108mm or 25*108mm Transport Package Carton Specification 68.5*25.8*20.5CM Trademark none Origin Fujian, China HS Code 84671100 Production Capacity 20000PCS Per MonthProduct Description
Portable Hand Held Pneumatic Rock Drill Y24 Jack Hammer1. Y20&Y24 are intended for dry drilling, YH24 for wet drilling
2. Suitable for either drilling downward or incline of blast holes in medium-hard rock, of for second blasting operation.
3. Centrally grouped control, nimble starting, stable running and easy maintenance.
Instruction of Y24

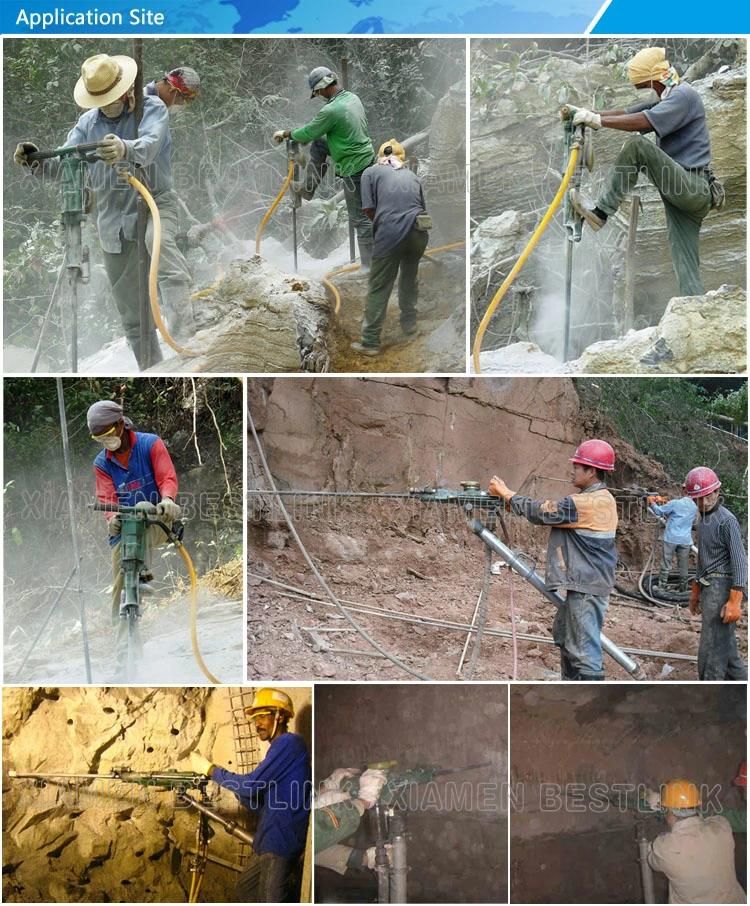

The rock drill is widely used for dry drilling in the medium-hard and hard rock(f=8-18). It's suitable for drilling works in surface mine, quarry for boulder blasting and other dry drilling working.
FY200B oil reservior is matched with this rock drill to ensure the fine lubrication.
Advantage of Y24
1. Dry Drilling Machine
2. Great Efficiency & Speed
3. Stable Running & Easy Maintenance
4. Widely used in Construction o, Mines, Bridges, Roads
Specification of Y24
Y24
Weight 24kg
Length 604mm
Cylinder dia. 70mm
Piston stroke 70mm
Work pressure 0.4~0.63MPa
Impact frequency* ≥ 27HZ
Air consumption* ≤ 55L/s
Air pipe inner dia. 19mm
Shank head dia 34~42mm
Shank dimensions(hex× Length)at0.4Mpa 22× 108± 1mm
FY200B oil reservior:
Capacity 200ml

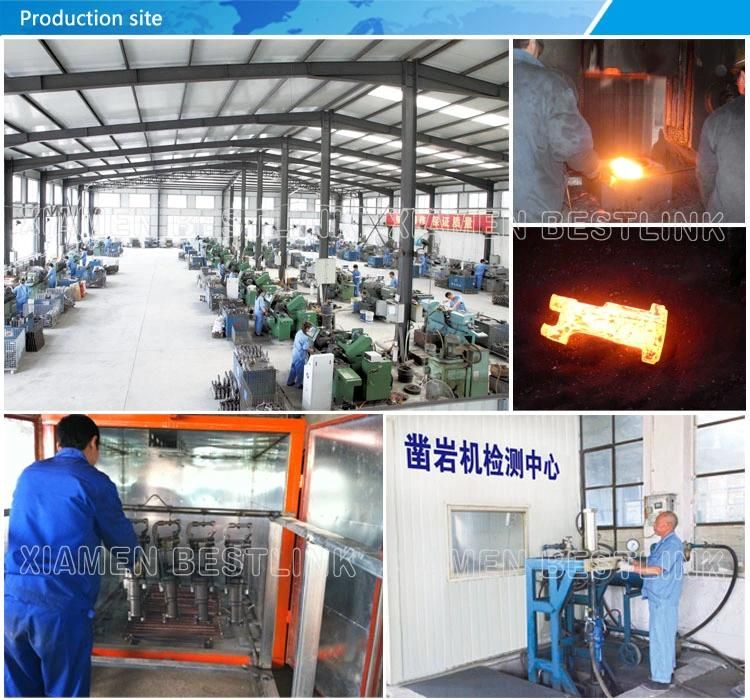

Our Enterprise emphasizes "Technology Improve Quality, Well Quality Occupy Market".
By this point, we have got good reputation from both domestic and foreign customers.
We peruse actively the new norms, high efficiency, simple operate products to achieve
The break through of the best quality for our customers, and then develop and enlarge market. Now our customers have throughout Middle-East, Africa, South-America and
Other countries and areas.
Model | Y20 | Y24 | Y26 | |
Weight | kg | 18 | 24 | 26 |
Air consumption | L/s | 25 | ≤50 | ≤47 |
Length | mm | 605 | 604 | 650 |
Shank | mm | 22*108 | 22*108 | 22(25)*108 |
Bore Dia | mm | 30-42 | 30-42 | 30-42 |
Drill depth | m | 3 | 5 | 5 |
Impact rate | Hz | 34 | 30 | 27 |
Hose connection | mm | 16 or 19 | 19 | 19 |
