Automatic Stone Bridge Saw with Head Rotation 90 Degrees Cutting Granite Marble Quartz (HQ600D)
Xiamen Aga Import and Export Co., Ltd.- After-sales Service：24 Hours on Line Services
- Warranty：1 Year Warranty
- Type：Laser Cutting Machine
- Usage：Granite, Marble, Quartz Sandstone Limestone Other Engineered Stones
- Application：Machinery & Hardware, Construction, Stone Industry
- Source Voltage：380V
Base Info
- Model NO.：HQ600D
- Automation：Automatic
- Cutting Ability：High Speed
- Control：CNC
- Certification：ISO, CE
- Blade Rotation：0 - 90 Degree
- Table Tilting：0-85 Degree Easy for Materials Loading
- Blade Size：400-600 mm 16′′-24′′
- Cut Length：3200 mm 126′′
- Cut Width：2000 mm 78′′
- Cut Thick：180 mm 7′′
- Spindle Motor：15 Kw 20 HP
- Weight：6, 200 Kg
- Transport Package：Plastic Packing
- Specification：Size (L*W*H): 5.9*3.5*2.6m
- Trademark：AGA
- Origin：Xiamen, China
- HS Code：84641090
- Production Capacity：200sets,Mon
Description

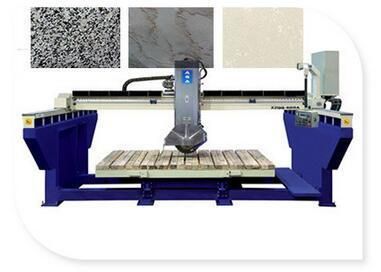

Stone bridge saw introduction:

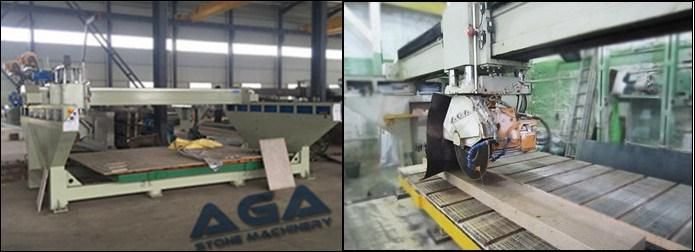

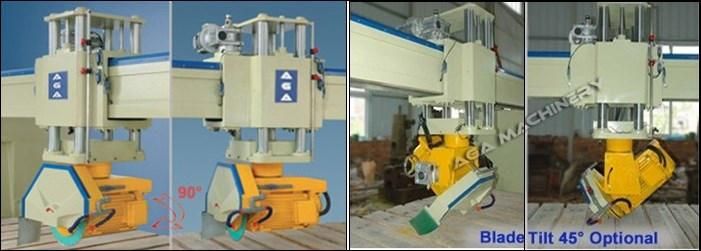

Bridge saw blade travels along the bridge automatically and is able to turn 90° for making square cut. Blade tilting 45° for miter cut is optional.

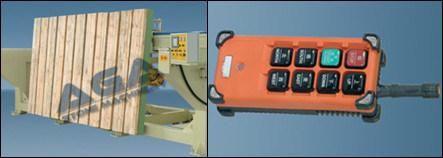

The bridge saw table tilts 0°-85° hydraulic for easy load of matersials. Wireless remote provides easy control of the saw.

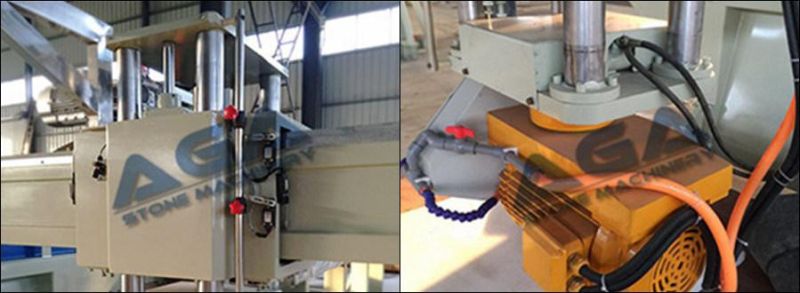

Machine head is with four strong pistions providing very stable performance.

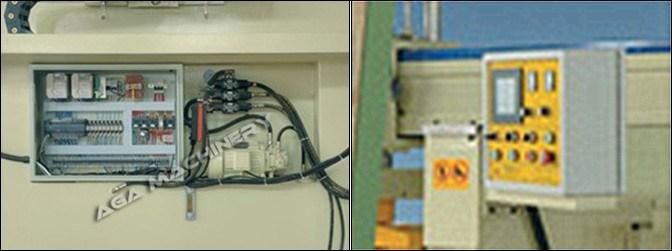

This bridge saw is computer control and able to program for up to 999 repeat cuts automatically and abls capable of manual operation.All functions are achieved on the control panel making its uers very friendly.
The cechanical body of this saw is made of very strong cast iron for stability and long lifetime. It is able to cut 3200mm in length and 2000mm in width and 180mm in thickness.Undertaking of the bridge saw:
1) ISO, CE Certification.
2) Lifetime: normally 15 years or more if properly maintained.
3) Warranty for one year.
4) 24 hour technical support Internet or by Telephone, free intructions and problem solving.

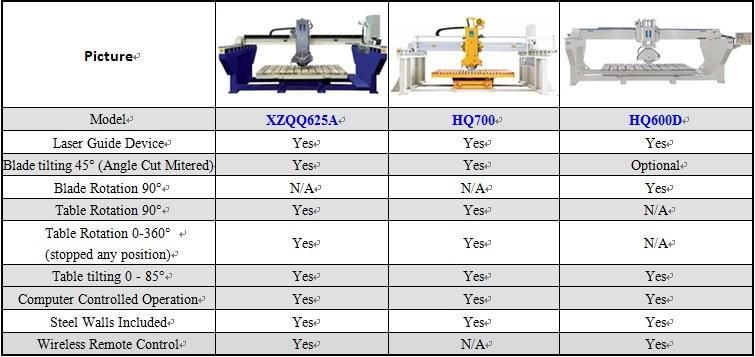

Model models for option:
FAQs:
1) Payment:
T/T in advance We accept 30% deposit , 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock. Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
About AGA:
1) AGA is professional:
AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.
2) AGA is popular in world market:
The equipment have been successfully exported to world market in U.S.A, Canada, Europe, Mid East, Egypt, India,etc. Customers are happy with our machines.
3) AGA is passionate:
We care about customers because by choosing us you are giving a chance make your machine more productive that also mackes your products unrivaled in the competitive market. We supply pre-sell service and after-sell service.
4) Products of AGA:
Stone cutting machine, multi blades block cutter, automatic bridge cutting machine, bridge saw, edge cutting machine, edge polishing machine, profile cutting machine, arm polisher machine, splitting machine, pressing machine, stone crusher.
