• Model NO.：PEW250x1200, PEW400x600, PEW760, PEW860
• Finished Surface：Hole Process
• Certification：CE, ISO
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Sevice：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：50-350tph

Basic Info.

Model NO. PEW250x1200, PEW400x600, PEW760, PEW860 Finished Surface Hole Process Certification CE, ISO Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Sevice for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 50-350tph

Product Description

Introduction of China Capacity 50-300t/H Stone Jaw Crusher for Mining

New generation Stone Jaw Crusher, pew series jaw crusher is born with innovative significance. It is newly designed and improved by our experts on basis of their more than 20 years' crusher manufacturing and designing experience. The unique design concept makes this series crusher achieve perfect combination between crushing efficiency and operating cost. Meanwhile, it has wide range of application, particularly suitable for crushing hard rock, such as basalt, river pebbles.



Application of China Capacity 50-300t/H Stone Jaw Crusher for Mining

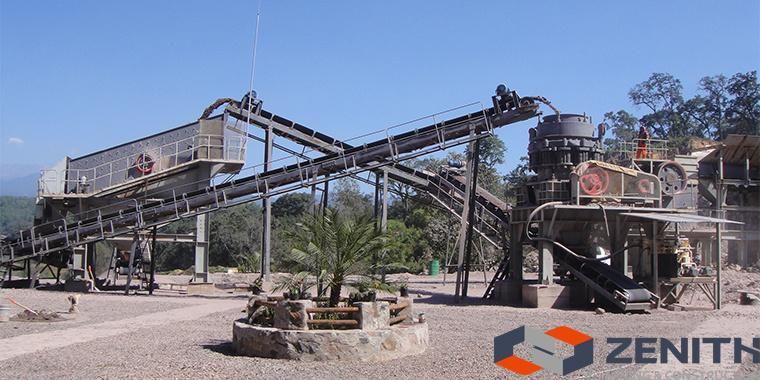

Stone Jaw Crusher is widely used in mineral, quarry, building materials, road, railway, water conservancy and hydropower.
The angle between the fixed jaw and movable jaw becomes smaller.
The movable jaw plate leaves the fixed jaw plate under the affection of drawbar and spring, and then the crushed materials are discharged from the lower outlet of the crushing cavity.




Working Principle of China Capacity 50-300t/H Stone Jaw Crusher for Mining

The motor drives the belt wheel, and makes movable jaw up and down by eccentric shaft, when the movable jaw down;
The angle between the fixed jaw and movable jaw gets smaller, and the materials can be crushed to reach the crushing target;
When the movable jaw rises, the angle between the fixed jaw and movable jaw becomes larger; the movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring; and then the crushed materials are discharged from the lower outlet of the crushing cavity.



The features of China Capacity 50-300t/H Stone Jaw Crusher for Mining:

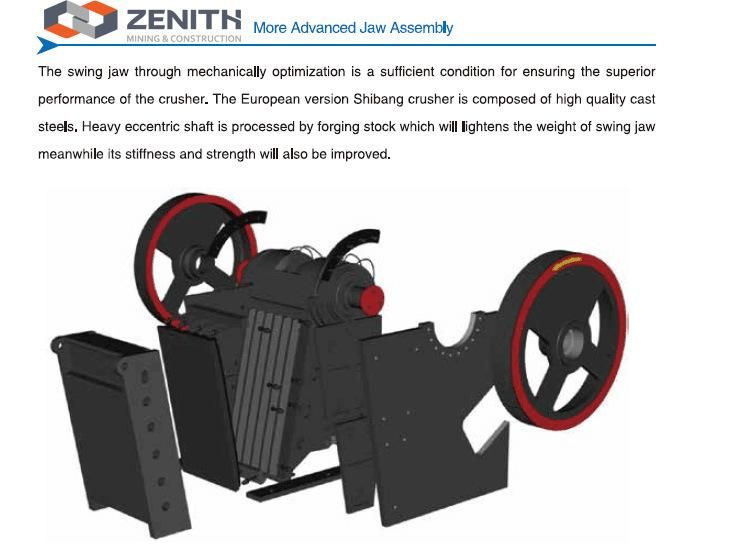

1. Durable moving jaw assembly.

2. Integral cast steel bearing housings.

3. Fast and safe setting adjustment.

4. Reasonable cavity design.

5. Larger-size and larger-carrying-capacity bearings

6. Compact & robust structure


 Parameters of China Capacity 50-300t/H Stone Jaw Crusher for Mining:


Model	Feed Inlet Size (mm)	Max Feed Size (mm)	Outlet Range (mm)	Capacity (t/h)	Motor Power (KW)	Weight (ton)	Overall Dimension(mm)
PEW760	760x1100	620	75-200	150-350	110-132	24	2600× 2500× 2200
PEW860	860x1100	720	100-225	200-500	132-160	32	3300× 2320× 3120
PEW1100	1100x1200	930	150-275	300-650	185-200	59.2	4140× 2660× 3560
PEW400x600	400x600	350	35-85	15-70	37	6.8	1920× 1460× 1840
PEW250x1200	250x1200	220	20-40	20-50	37	6	1400× 2050× 1310
PEW250x1000	250x1000	220	20-40	15-50	30	5.6	1400× 1850× 1310
