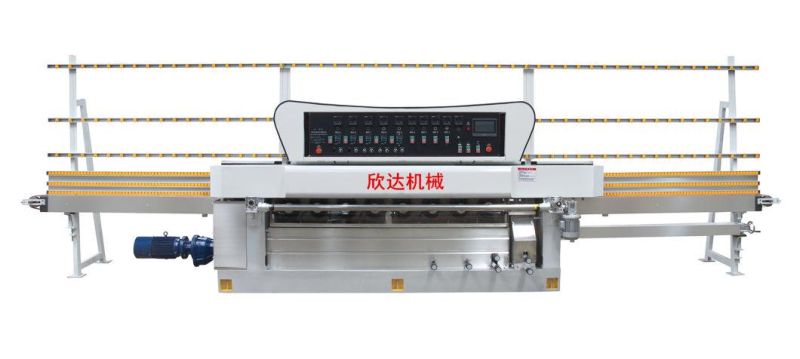

XDYB-180 Night heads automatic stone round edge machine(1+8)
Yunfu City Xinda Machinery Co., Ltd.- Type：Stone Polishing Machine
- Control：PLC
- Automation：Automatic
- Precision：High Precision
- Application：Marble
- Type for Grinding Machine：Disc Grinding Machine
Base Info
- Model NO.：XDYB-180
- Grinding Machine Type：Vibration Polishing Machine
- Grinding Method：Wet Grind
- Certification：CE
- Condition：New
- Conditiaon：New
- Container Type：20GP(DC)
- Transport Package：by Film Package
- Trademark：XINDA
- Origin：Yunfu City, China
- HS Code：84642090
- Production Capacity：800
Description
Basic Info.
Model NO. XDYB-180 Grinding Machine Type Vibration Polishing Machine Grinding Method Wet Grind Certification CE Condition New Conditiaon New Container Type 20GP(DC) Transport Package by Film Package Trademark XINDA Origin Yunfu City, China HS Code 84642090 Production Capacity 800Product Description
Description:
The machine adopts a PLC program to detect the electric currency,the spindles will compensate the feeding automatically according to different stones.Equipped with a touch screen,for easy operation.
Various kinds of profiles can be polished,such as round,semicircular and French sides,etc.
It is equipped with one vertical saw blade for grooving,three diamond wheels and five polishing wheels.The finished surface is smoother than original.High precision,simple and efficient in operation,low cost and easy maintenance.
Technical parameters:
| Parameters | XDYB-180 |
| Packing size(L×W×H) | 4m×1.2m×1.7m |
| Machine size(L×W×H) | 7m×1.2m×2m |
| Timing belt length in/out side | 2m |
| Height of timing belt | 0.8m |
| Max workpiece weight of frame | 3000KG |
| Body weight | 3600KG |
| Voltage | 380V-50HZ |
| Installed power | 28KW |
| Processing speed | 0.5-4m/min |
| Min size of stone | 60mm |
| Stone Thickness range | 3-60mm |
| Motor | 380V 50-60HZ 2.2-4KW |
| Base and beam | Cast iron |
| Control system | PLC |
Exhibition:
FAQS:1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before shipment
2) Delivery time:
The machine can be shipped within 15 workdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical support 24 hour on line.
