PLC System Infrared Automatic Stone Bridge Cutting Machine
FUJIAN NAN'AN HENGLONG MACHINERY CO.,LTD.- Type：Infrared Automatic Bridge Cutting Machine
- Usage：Granite, Marble
- Application：Machinery & Hardware, Construction, Mineral Industry, Stone Industry
- Source Voltage：380V
- Automation：Automatic
- Cutting Ability：High Speed
Base Info

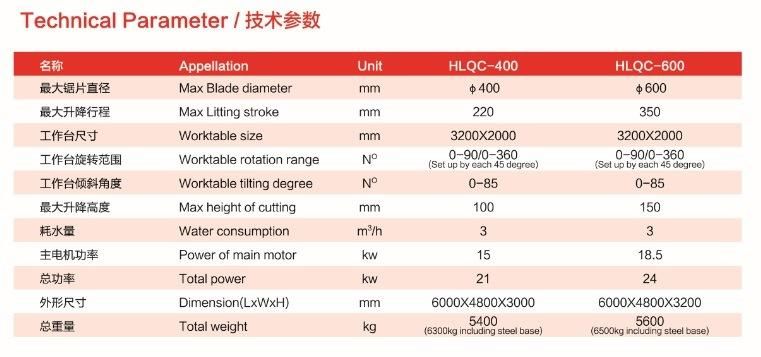

- Model NO.：HLQC-600,800
- Certification：SONCAP, ISO, CE
- Max Blade Diameter：600mm
- Max Litting Stroke：350mm
- Worktable Size：3200*2000mm
- Worktable Rotation Range：0-90°,0-360°
- Max Height of Cutting：150mm
- Water Consumption：3 M3,H
- Power of Main Motor：18.5kw
- Total Power：24kw
- Total Weight：5600kg
- Transport Package：Standard Export Packaging
- Specification：6000*4800*3200mm
- HS Code：84641090
- Production Capacity：20sets ,Month
Description
Basic Info.
Model NO. HLQC-600/800 Certification SONCAP, ISO, CE Max Blade Diameter 600mm Max Litting Stroke 350mm Worktable Size 3200*2000mm Worktable Rotation Range 0-90°/0-360° Max Height of Cutting 150mm Water Consumption 3 M3/H Power of Main Motor 18.5kw Total Power 24kw Total Weight 5600kg Transport Package Standard Export Packaging Specification 6000*4800*3200mm HS Code 84641090 Production Capacity 20sets /MonthProduct Description
Product Description
HLQC-600/800 infrared automatic stone bridge cutting machine has two type, adopting PLC system and Human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control left-right feeding,adjusting the speed according to stone material, using hydraulic lifting system which equiped through 4 guide post, also this machine provide the unique side beam protection device, main spare parts adopt imported well-quality materials.
The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble.
More information please contact us
