• Model NO.：cnc-3000
• Control：CNC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE, SGS
• Name：Stone Cutting Machine (Diamond Wire Saw Machine)
• Function：Cutting Marble, Granite, Slate, Nature Stone, etc
• Max Processing Size：3000*2000*1500mm
• Main Motor：11kw
• Outline Dimension：7800*6300*3950mm
• Gross Weight：6500kg
• Water Consumption：4m3,H
• Control Type：CNC
• Certificates：CE, SGS, ISO9001
• Transport Package：Load in a 20 Feet Container
• Specification：7800*6300*3950mm
• Trademark：Xianda
• Origin：Jinjiang, Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. cnc-3000 Control CNC Certification API, CCC, UL, SONCAP, GOST, ISO, CE, SGS Name Stone Cutting Machine (Diamond Wire Saw Machine) Function Cutting Marble, Granite, Slate, Nature Stone, etc Max Processing Size 3000*2000*1500mm Main Motor 11kw Outline Dimension 7800*6300*3950mm Gross Weight 6500kg Water Consumption 4m3/H Control Type CNC Certificates CE, SGS, ISO9001 Transport Package Load in a 20 Feet Container Specification 7800*6300*3950mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

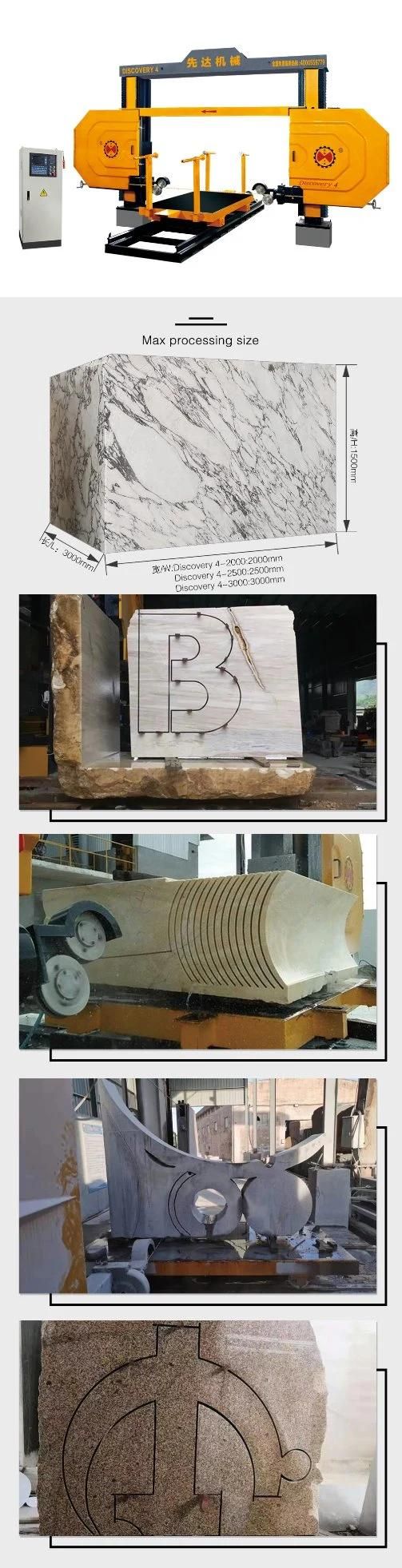

CNC Stone Wire Saw Cutting Machine for marble&granite block



Application

CNC-2000/2500/3000 Diamond Rope Saw function: Cutting column slabs, semi circular slabs, English letters, and other diversified compllicated special shape. Materials the wire saw machine can cut include marble, granite, natural stone etc.






Wire saw machine (Rope saw), wire cutting machine, cutting column / cylinder slabs.




Marble Granite CNC Diamond Wire Saw Stone Cutting Machine CNC-2000/2500/3000 adopts CNC systerm, Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes.
1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.
3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel, guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.
4. Worktable is running by lead screw and railway.
5. There has automatic alarm if wire broken.
6. Aluminum wheel diameter is 1600mm. One fly wheel slide through sheave, oil pump control rope tension.

Keywords: Stone machine, stone cutting machine, marble cutter, wire cutting machine

Technical Parameter

Parameter	Unit	CNC-2000	CNC-2500	CNC-3000
Max processing size (L*W*H)	mm	3000*2000*1500	3000*2500*1500	3000*3000*1500
Dimension of worktable	mm	2500*1300	2500*1300	2500*1300
Main motor	Kw	7.5	7.5	7.5
Gross motor	Kw	11	11	11
Outline dimension(L*W*H)	mm	6500*6300*3800	7000*6300*3800	7500*6300*3800
Gross weight	Kg	5000	5500	6000
Water consumption	M3/h	4	4	4

Xianda machinery







Fujian Jinjiang Xianda Machinery Co. Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine, wire saw stone cutting machine, block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company, we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Exhibition

Our after-sale service Team

We are a vigorous and creative team with great passion, we are always trying to provide better service for you, if you meet any problems about stone cutting machine, please contact us at any time suits you.

Other stone cutting machines we produce: Diamond wire saw machine, bridge cutting machine, bridge saw and a series of stone machine for special shape processing.
For more information, you may refer our home page: HTTP: //chinaxianda. En. Made-in-China. com/


FAQ

1. Manufacturer Profiles

We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985.
We own 70% China market share at special shape stone cutting machine series.

We are a company which is specially for producing stone machines for exporting.

2. Quality Control

We have our own experienced QC.

Our machine will be strictly inspected.

We will provide a Testing Video for each machines before shipping out if required by customer.

3. Delivery time

Based on order quantity, normally three weeks against payment.

4. Warranty

All the machines have one year warranty.

5. After Services

Our marketing team will response for your question within 24 hours.
Technical support will be available in any time.
Free replacement will provide once the failure confirmed caused by our product quality.
