• Model NO.：PFW 1210II, PFW 1214II, PFW 1315II, PFW 1318II
• Finished Surface：Hole Process
• Certification：CE, ISO
• Condition：New
• Color：Iron Grey
• Export Markets：Global
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Year
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. PFW 1210II, PFW 1214II, PFW 1315II, PFW 1318II Finished Surface Hole Process Certification CE, ISO Condition New Color Iron Grey Export Markets Global Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Year Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 1000 Set/Year

Product Description

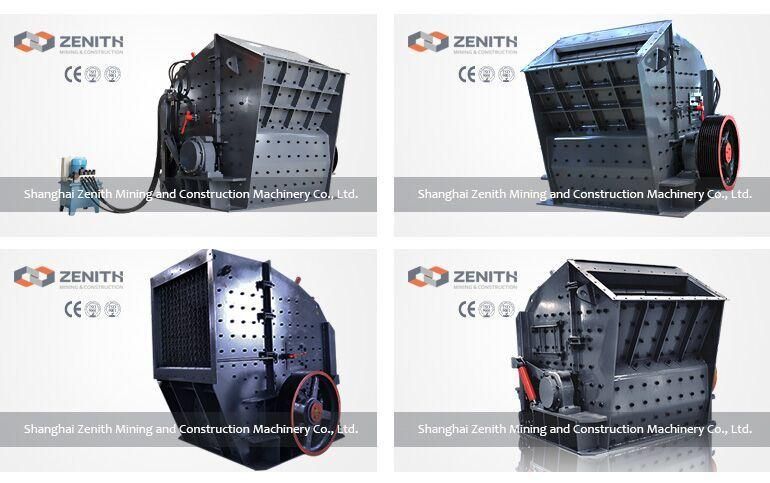

Hot sale Large Range Applied gypsum impact crushers

gypsum impact crushers is optimized and widely applied in the first and secondary crushing. It can crush material like granite, basalt, bluestone, etc the longest side of which is less than 500mm, and anti-pressure strength is not more than 320Mpa, and the final product is ideal device for aggregation used in highway and railway surface as well as water and electricity industry.

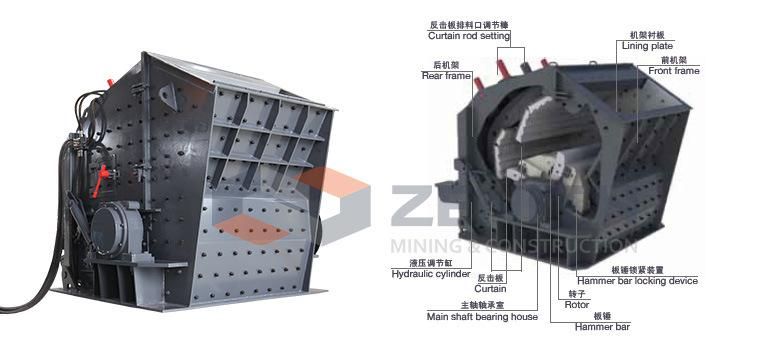

gypsum impact crushers working principle

When the gypsum impact crushers works, the motor drives the rotor rotate with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won't stop till the material are crushed to the required size and then discharged from outlet.

gypsum impact crushers features:

1. High reduction ratio and crushing efficiency.
2. The impact crusher is with unique simple structure, keyless connection.
3. Hammer is made of high chrome; liner board is made of wearable materials.
4. More suitable for crushing hard rock, high efficiency, low consumption.
5. The final product of impact crusher is in the shape of a cube, the discharge grain size is adjustable to simplify the crushing circuit.

technical data of gypsum impact crushers:

Model	Rotor Φ×L(mm)	Feed Opening(mm)	Max Feeding(mm)	Capacity(t/h)	Power(kw)	Motor Model	Machine Size(mm)
PFW1214II	1150×1400	1100×1430	500	130-200	4-132	Y315M-4/132	2400×2310×2550
PFW1315II	1300×1500	1200×1530	600	180-320	4-160	Y315L1-4/160	2700×2570×2800
PFW1318II	1300×1800	1200×1830	700	240-400	4-200	Y315L2-4/200	2700×2870×2800
PFW1415II	1400×1500	1450×1530	800	240-450	4-200	Y315L2-4/200	3000×2700×3070

Three-curtain cavity hydraulic impact crusher:

Model	Rotor Φ×L(mm)	Feed Opening(mm)	Max Feeding(mm)	Capacity(t/h)	Power(kw)	Motor Model	Machine Size(mm)
PFW1214III	1150×1400	570×1430	250	90-170	4-132	Y315M-4/132	2550×2310×2100
PFW1315III	1300×1500	625×1530	300	180-270	4-160	Y315L1-4/160	2960×2570×2380
PFW1318III	1300×1800	625×1830	300	220-300	4-200	Y315L2-4/200	2960×2870×2380
PFW1415III	1400×1500	800×1530	350	280-350	4-200	Y315L2-4/200	3120×2650×2660
