• Model NO.：BRT70T-600x300-MF
• Control：Artificial
• Certification：CE
• Warranty：1 Year
• Suitable Stone：Granite, Marble, Sandstone, Limestone, Concrete
• Voltage：as Per Client′s Request
• Capacity：800 PCS Per Hour
• Transport Package：Plywood Box or Naked Packing
• Specification：as per machine model
• Trademark：BESTLINK
• Origin：Fujian, China
• HS Code：84791090
• Production Capacity：20sets Per Month

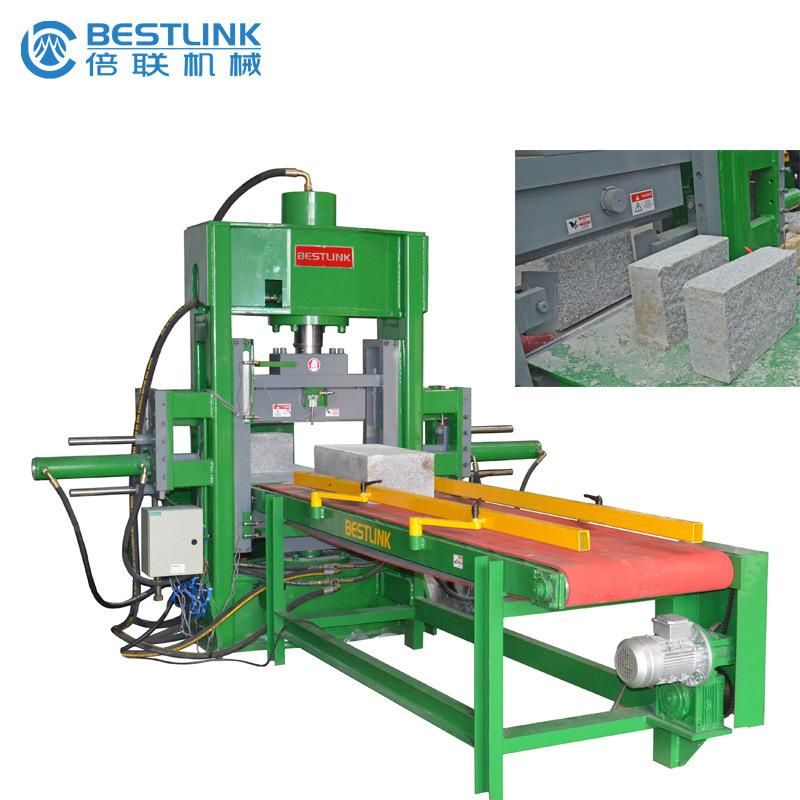

Online Videos:     http://xmbestlink.en.made-in-china.com   Introduction vedio in general   http://xmbestlink.en.made-in-china.com   working in america(BRT70T)   http://youtu.be/a9yt9a-jetYBRT160T    https://xmbestlink.en.made-in-china.com    BRT50(with side blade) New model at 2014 Xiamen Stone Fair  http://youtu.be/--BH-hGRTiE      BRT70T-600x300-MF automatic stone splitter with side blades and belt conveyor on 2015 Xiamen Stone Fairhttp://youtu.be/Q8fR6FGZZ2A    BRT70T-600x300-MF automatic stone splitter with side blades and belt conveyor

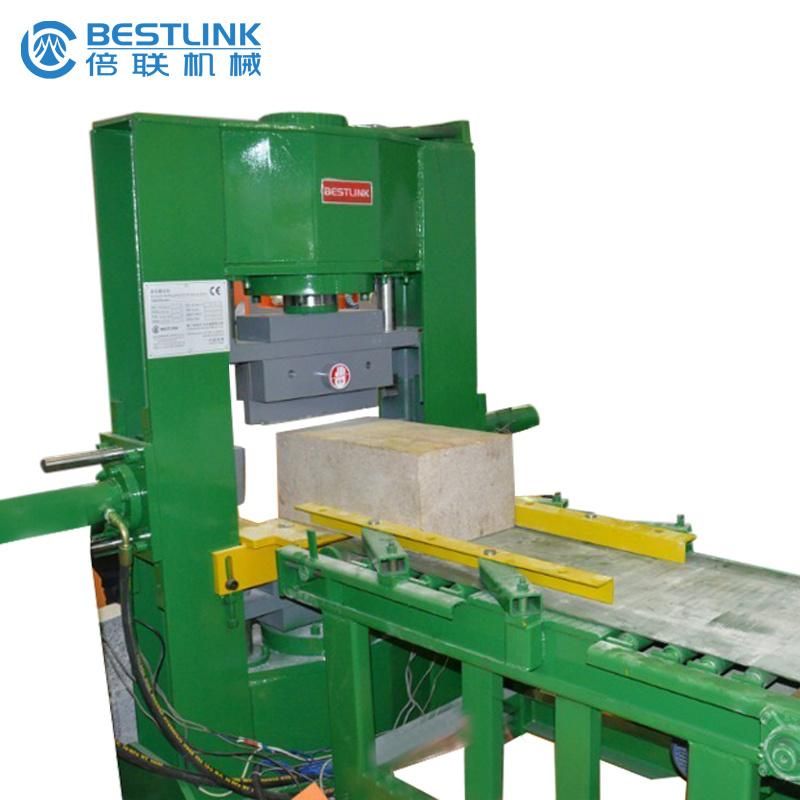

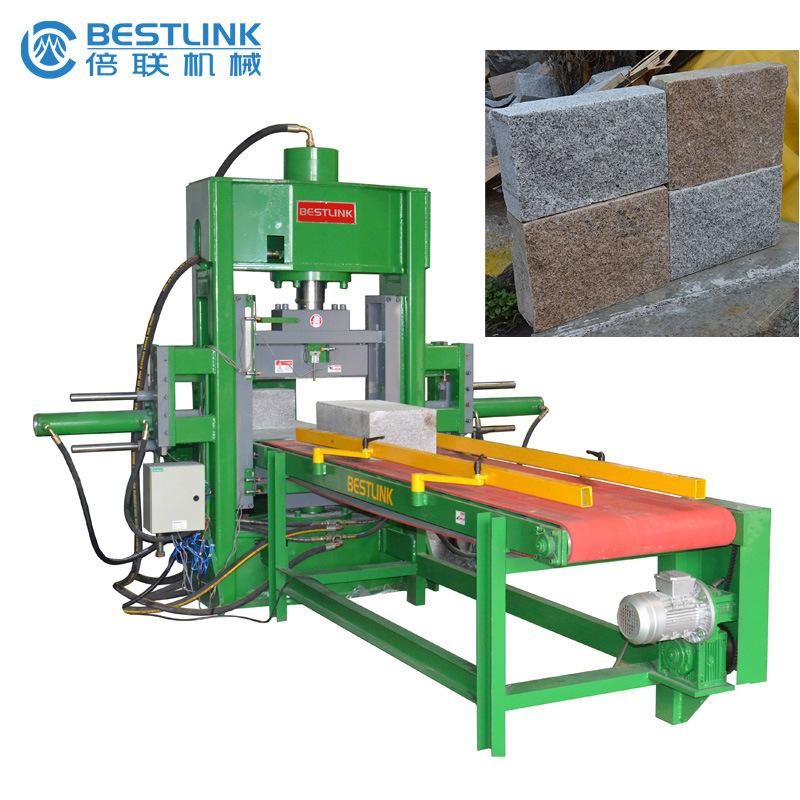

Hydraulic splitting machine
It suitable for splitting all types of natural and artifical stones,used for the production of large and small materials for mosaic and stone flooring.and characterized by high reliability and easy handling,every splitting machine can be integrated in a production line,especially designed according to your needs.
Using our splitting machines you could produce a wide range of products like: Cobble stones, Paving stones, Tiles for paving and cladding, Wall stones and Kerb stones, etc. Our machines are known also as splitters, hydraulic splitting machines, stone splitter or stone cutter (for rustic products).
The hydraulic system of our machines mainly uses the hydraulic components of German Bosch Rexroth with stable performance, no oil leakage, low noise and long service life and so on.
Electrical system of our machines is safe, reliable, convenient and flexible and the components are from the brands ofSchneider and Omron.
The machines can be operated automatically or manually and move continuously or single-step. Equipped with a separate control cabinet, the electric control part can be operated by a total station and a button box. The start-up and operation is very convenient.
The character of the machine is of intelligent gear cutting head, can adjust itself according to the condition of the stone face, and then, generate hydraulic power to split the stone down in a spot. Therefore it is of high speed, good quality, low consumption and so on, which can improve products quality and production efficiency in a high degree.

Our Advantage:
1.Complete full series with different models for choice
2.International brand-name core components
    German Bosch Rexroth
    Omron and Schneider
    Siemens
3.Blade adaptation system with floating teeth
4.Design according to client's request available
5.Combination of production line with suitable conveyor available
6.CE certificate

There are several models for choice:
Closed-frame models:
BRT320T-1200*800-M
BRT200T-1200*400-M
BRT160T-1000*400-M
BRT120T-1000*300-M
BRT70T-800*300-M
BRT40T-600*200-M
Open-frame models:
BRT160T-500*550
BRT100T-400*400
BRT70T-400*350
BRT40T-240*320
BRT20T-160*380
 SpecificationsBRT50T-600×300MM-MFBRT70T-600×300MM-MFBlade width600mm600Max splitting width600mm600Max splitting height300mm300Max splitting power50tons70tonsElectric power7.5kw11Electric voltage380V, 50HZ380V, 50HZConveyor dimension(L*W*H)1400*750*700mm2500*7500*8000mmMain machine dimension(L*W*H)1145*1000*2030mm2500*1000*2450mmMachine Weight4000kg4500KGOil tank capacity400L550LOil tank weight600KG800KG
