• Model NO.：PF series
• Finished Surface：Cut Off Tool
• Condition：New
• Color：Customized
• Power：30-350kw
• Weight：3.5-26.5t
• Transport Package：Standard Packing
• Specification：CE
• Trademark：HC
• Origin：Gongyi City, Henan Province, China
• Production Capacity：50sets, Month

Basic Info.

Model NO. PF series Finished Surface Cut Off Tool Condition New Color Customized Power 30-350kw Weight 3.5-26.5t Transport Package Standard Packing Specification CE Trademark HC Origin Gongyi City, Henan Province, China Production Capacity 50sets/ Month

Product Description

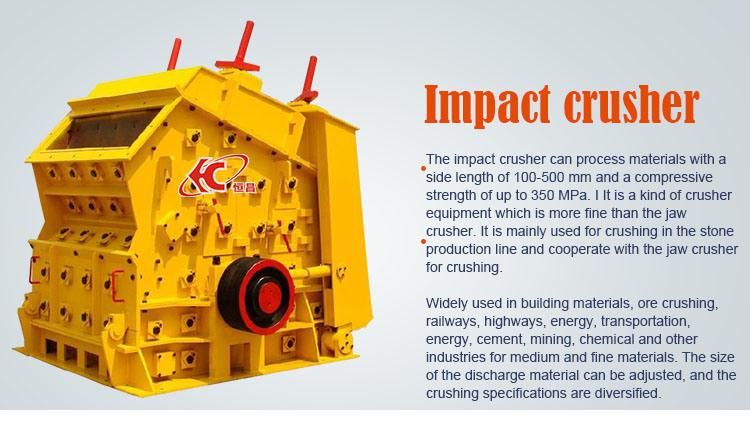

impact crusher for ore rock crushing plant
The impact crusher can process materials with a side length of 100-500 mm and a compressive strength of up to 350 MPa. It has a large crushing ratio and a cubic particle after crushing. Widely used in building materials, ore crushing, railways, highways, energy, transportation, energy, cement, mining, chemical and other industries for medium and fine materials. The size of the discharge material can be adjusted, and the crushing specifications are diversified.

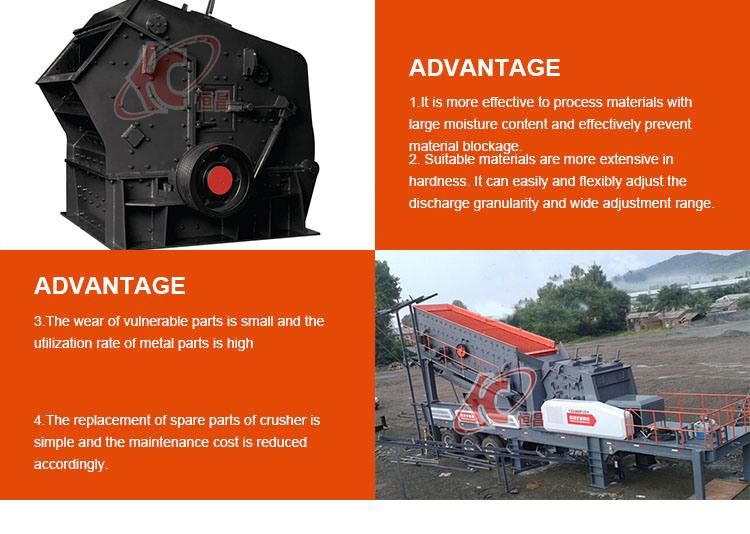

Advantages of  impact crusher for ore rock crushing plant

1. Impact crusher is more effective to deal with large wet materials and effectively prevent material clogging.

2, the impact crusher applies to a wider range of material hardness.

3, can be convenient and flexible adjustment of the discharge particle size, wide range of adjustment.

4, wearing parts wear small, high metal utilization rate.

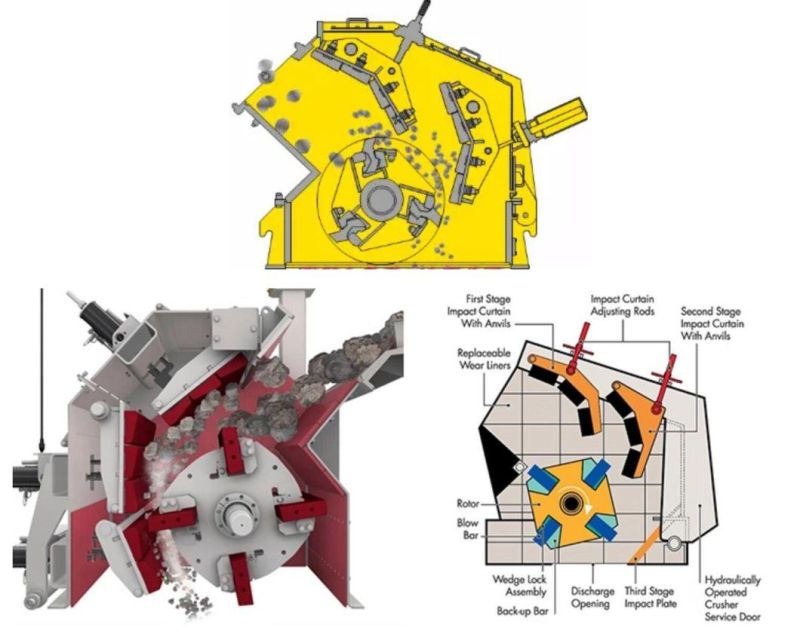

Impact crusher working principle

The impact crusher is a crushing machine that uses impact energy to break up materials. When the machine is working, the rotor rotates at a high speed under the driving of the motor. When the material enters the action area of the hammer, it collides with the hammer on the rotor, and then is thrown to the counter-attack device to break again, and then rebounds from the counter-attack. Returning to the hammer action zone, the process is repeated, and the process is repeated, and the material is broken into the counter-attack cavity from large to small, until the material is broken to the required particle size.












Compare to other crushers, our impact crusher has bigger reduction ratio and can fully use the high speed impactenergy of entire rotor. But because the impact crusher board hammer isextremely easy to wear, it also is restricted in the hard material staveapplication. Impact crusher is usually used to break thick garrulous, garrulousor the limestone, the coal, the calcium carbide, the quartz, the dolomite, thecuring iron ore, the gypsum and the industrial chemicals which are hardfollowing brittle material.

The ideal entering material granularity of our PF type impact crusher is 100-500mm,themost greatly is not surpass the rating. The materail granularity user canajusts the hammer head and the impact board and th gap between component,according to theirs demands.

Technical Parameter

Model	Rotor Size (mm)	Max.Input Size (mm)	Output size (mm)	Motor power (kw)	Capacity (t/h)	Weight (kg)
PF_0807	850 × 700	300	≤ 25=85%	30	10-25	3500
PF_1007	1000 × 700	300	≤ 25=85%	37	15-30	6500
PF_1010	1000 × 1050	350	≤ 25=85%	55-75	50-80	12100
PF_1210	1250 × 1050	350	≤ 25=85%	110-132	70-120	14000
PF_1214	1250 × 1400	400	≤ 25=85%	132-160	130-180	18500
PF_1315	1300 × 1500	500	≤ 25=85%	160-200	180-260	23500
PF _ 1320	1320× 2000	500	≤ 25=85%	300-350	300-350	26500

Our service

1) Installation and guidance
When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and
commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client's factory.

(2)Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating
regulations, maintenance methods and steps, safety, etc.

(3)Warranty:
Three guarantees of our product quality, warranty for one year (not include man-made damaged). We will maintain the machine for
free for the quality problem. If the damage is caused by your improperly operation, the cost of the maintenance burden by you. we
also provide you the life-long follow-up service.


FAQ:

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q: What is your terms of payment ?

A: 30% advanced payment by T/T, balance paid before shipment.

Why Choose Us?

1.We are true Manufacturer.

2.Alibaba Assessed Gold Supplier.

3.Inspected by the Inspection Institution of ISO CE Certification.

4.100% QC inspection Before Shipmeng.

5.Best Quality & Best Service with Competitive price
