• Model NO.：PF Series
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Year
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：40-850tph

Basic Info.

Model NO. PF Series Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Year Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 40-850tph

Product Description

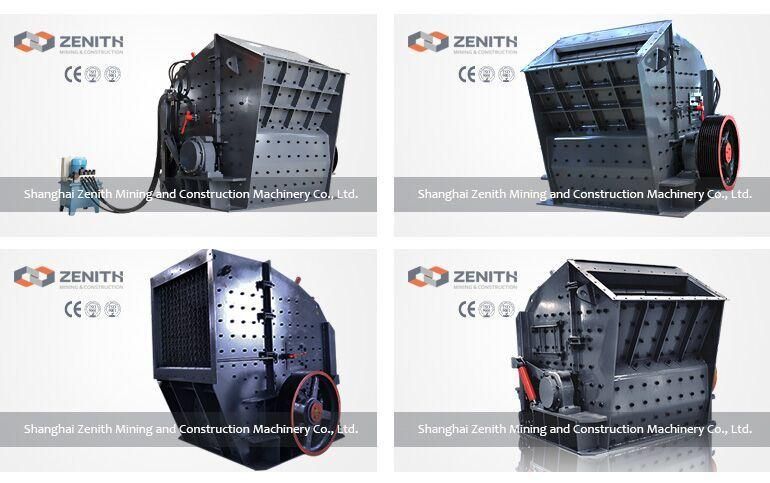

Impact Crusher, Impact Crusher Machine (PF Series) introduction

Zenith impact crusher is optimized and widely applied in the first and secondary crushing. It can crush material like granite, basalt, bluestone, etc the longest side of which is less than 500mm, and anti-pressure strength is not more than 320Mpa, and the final product is ideal device for aggregation used in highway and railway surface as well as water and electricity industry.



Impact crusher features:

1) Locking sleeve assembly Connection
2) Blow bar with high chrome
3) Hydraulic or hand opening
4) Special impact plate
5) Cubical shape of final product
6) Easy maintenance
7) Reliable performance

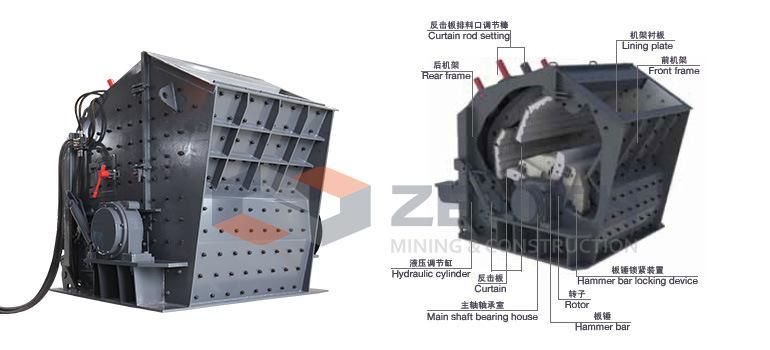

Impact crusher Product Description This series of product is a Three cavity crusher with three-level impact plates. The impact plate of rear chamber plays a role in reeling. The  impact crusher machine can handle materials with a side length below 100-800mm, and it is applicable for crushing medium hard materials. The crusher's compressive strength is up to 350MPa, the discharge particle size is relatively small, the material particle size is good, and particles are shown in a cubic shape. The rotor components are elaborated, the dynamic and static balance of rotor is good, and the machine can be in smooth operation with low noise. impact crusher machine Application: This series of product is usually applied in the secondary crushing, and the compressive strength is up to 350MPa. The impact crusher is applicable for crushing limestone, concrete, basalt, and especially applicable for the preparation of road stone. It is widely used in various fields of mining, smelting, building materials, highway, railway, water conservancy and chemical industry, etc.

Model	Rotor Φ×L(mm)	Feed Opening(mm)	Max Feeding(mm)	Capacity(t/h)	Power(kw)	Motor Model	Machine Size(mm)
PF1010	Φ1000×1050	400×1080	350	50-80	4-75	Y280S-4/75	2455×2086×2800
PF1210	Φ1250×1050	400×1080	350	60-120	6-110	Y315L1-6/110	2590×2050×2810
PF1214	Φ1250×1400	400×1430	350	80-160	6-132	Y315L2-6/132	2590×2400×2810
PF1315	Φ1300×1500	860×1520	350	120-260	6-200	Y355M3-6/200	2930×2760×3050
