• Model NO.：PF
• Certification：CE, ISO, SONCAP, CCC
• Condition：New
• Color：as Required
• Adjustment Range (mm)：0-60
• Transport Package：Suitable for Sea Transportation
• Specification：ISO CE SGS SONCAP
• Trademark：Raytone Machinery
• Origin：Shandong Linyi
• HS Code：8464909000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. PF Certification CE, ISO, SONCAP, CCC Condition New Color as Required Adjustment Range (mm) 0-60 Transport Package Suitable for Sea Transportation Specification ISO CE SGS SONCAP Trademark Raytone Machinery Origin Shandong Linyi HS Code 8464909000 Production Capacity 50 Sets Per Month

Product Description

Brief introduction
By adopting the developed technology and unique structural design, finished products processed by impact crusher boasts cubic shape without tension and cracks. It can crush stone smaller than 500mm with the compression strength lower than 350MPa, such as granite, limestone, concrete, etc. Impact crusher is widely used in all kinds of ore crushing, railway, highway, energy, cement, chemical industry, construction, etc. the output size can be adjusted.



Performance features
1. With the big feed opening and spacy crushing cavity, the impact crusher is suitable to crush bulky materials with a large capacity.
2. Clearance between the impact bracket and the hammer is adjustable, thus the shape and size of the finished products is easily controlled.
3. It is of compact structure, high rigidity and large rotary inertia.
4. The high-chrome hammer is wearable.
5. Easy maintenance and the low operation cost.
6. With the high crushing ratio, comprehensive functions and good wearing resistance, this machine boasts high price performance ratio.

Work Principle

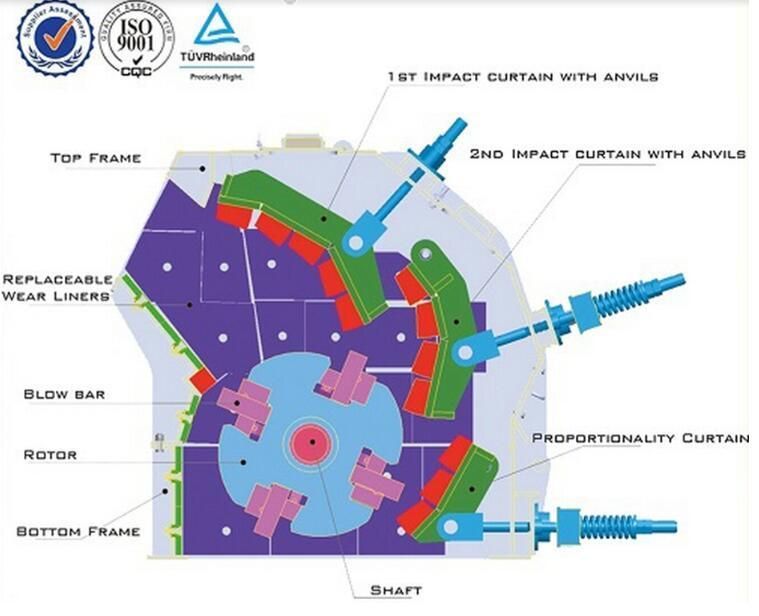

PF series Impact crusher crushes materials with impact force. When the materials enter the blow bar, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the materials will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine. The size and shape of the finisher powder can be changed by adjusting the gap between the impact rack and rotor support. The machine employs self-weigh security device in its back frame. When other objects enter the impact cavity, they will be forced out of the machine by the impact rack in the front and back of the machine.
Specifications


Model	Max   Feeding(mm)	Adjustment  Range (mm)	Capacity (t/h)	Motor  Power (kw)	Overall  Dimension  (L*W*H)(mm)	Rotor Size(mm)
PF1108	150	0-60	15-70	55-75	2600*1650*2300	1100*800
PF1210	200	0-60	20-100	90-110	3270*2000*2550	1200*1000
PF1214	250	0-60	30-160	110-132	3270*2400*2550	1200*1400
PF1315	300	0-60	40-200	132-160	3470*2470*2710	1300*1500
PF1518	400	0-60	50-250	200-250	3870*2970*3110	1500*1800

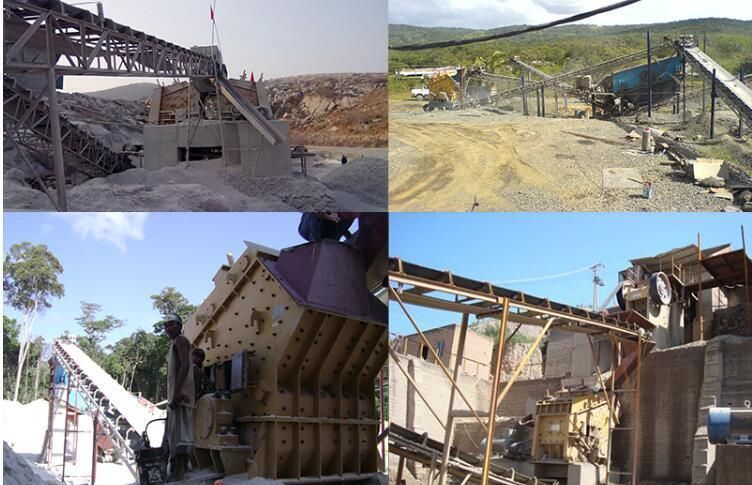

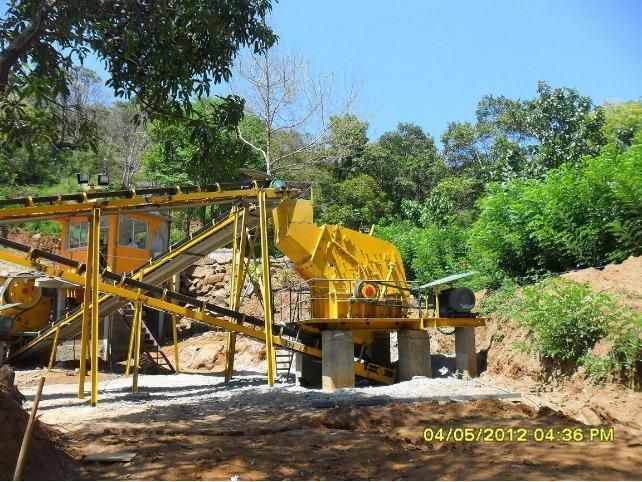

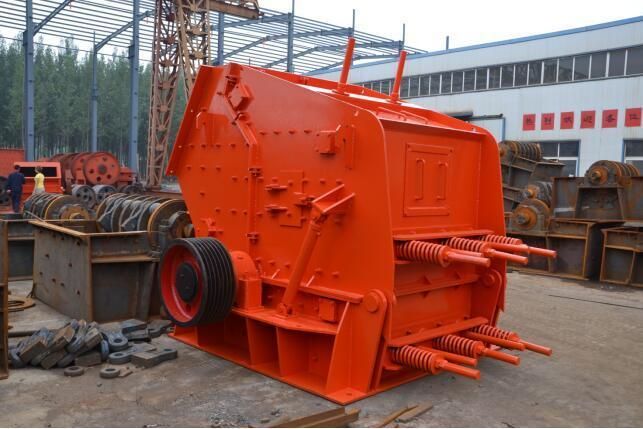

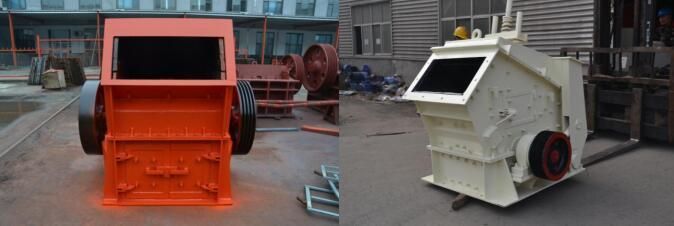

Products Show
