• Model NO.：PF1315
• Finished Surface：Thread Process
• Certification：CE, ISO, GOST, SONCAP, UL, CCC, API
• Condition：New
• Color：Yellow
• Export Markets：Global
• Crusher：Impact
• Transport Package：Export Standard by Container
• Specification：jaw crusher
• Trademark：kilomega
• Origin：Ningbo, China
• HS Code：84742090
• Production Capacity：800t,H

Basic Info.

Model NO. PF1315 Finished Surface Thread Process Certification CE, ISO, GOST, SONCAP, UL, CCC, API Condition New Color Yellow Export Markets Global Crusher Impact Transport Package Export Standard by Container Specification jaw crusher Trademark kilomega Origin Ningbo, China HS Code 84742090 Production Capacity 800t/H

Product Description

Additional Info.


Trademark: HJ
Packing: Nude, Spare Parts Should Be Paked in Wooden Case.
Standard: PF1010
Origin: China
HS Code: 8474100000
Product Description

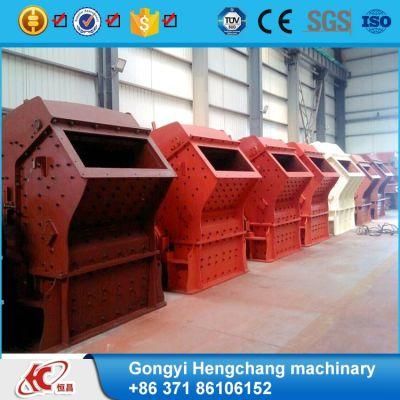

Advantage of impact crusher:
1. Economy (save energy and current consumption)
2. Big opening size (reach to 500mm)
3. Special impact plate
4. Cubical shape of grain size
5. Delivery in time

Impact Crushers are used in both primary and secondary crushing applications of aggregate, and in recycle crushing of reinforced concrete, asphalt and other construction and debris. The impact crusher processes various kinds of material with crushing compression strength not more than 350 mpa, featuring firm structure, stable performance, large capacity, even producing granularity, convenient maintenance and economical running expense, and widely applied in the areas of mining, construction material, smelting, railway, highway, water conservancy, etc.

Service (one-stop service)
Pre-sale service: Selection, designing and manufacturing plant as your request.
Selling service: Designing paper, confirmation detail of sales contract
After-sale service: Installation and trial run, train operator and so on.

Type	Spec.	Opening (mm)	Max. Feeding Size (mm)	Capacity (t/h)	Motor Power (KW)	Weight (t)
PF-0607	Φ  644 ×  740	320 ×  770	100	10-20	30	4300
PF-0807	Φ  850 ×  700	400 ×  730	300	15-30	30-45	6500
PF-1008	Φ  1000 ×  800	400 ×  830	300	30-60	37-55	10500
PF-1010	Φ  1000 ×  1050	400 ×  1080	350	50-90	55-75	12500
PF-1210	Φ  1250 ×  1050	400 ×  1080	350	70-130	90-110	15800
PF-1212	Φ  1250 ×  1250	400 ×  1300	350	100-150	110-132	17500
PF-1214	Φ  1250 ×  1400	400 ×  1430	400	100-180	132-160	19800
PF-1315	Φ  1320 ×  1500	860 ×  1520	500	160-250	180-260	24000
PF-1320	Φ  1320x2000	860x2030	500	300-350	300-375	29000
