Stone Processing Machinery

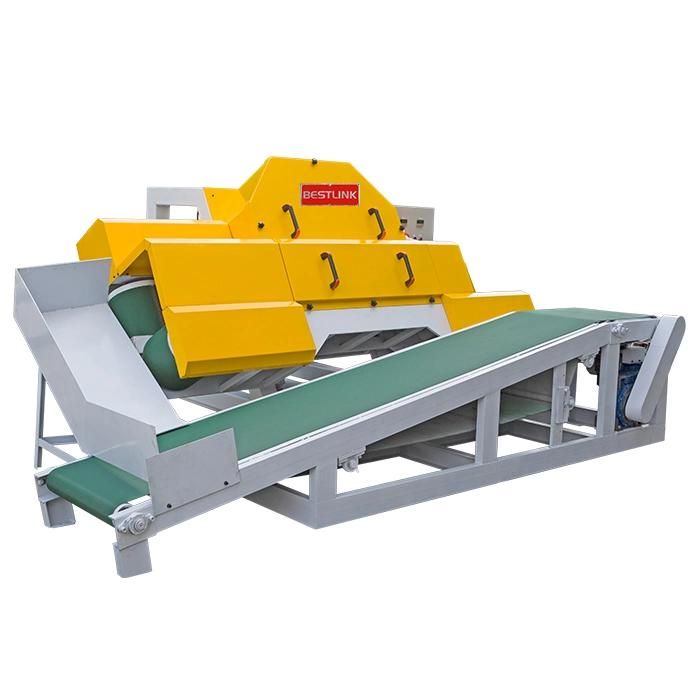

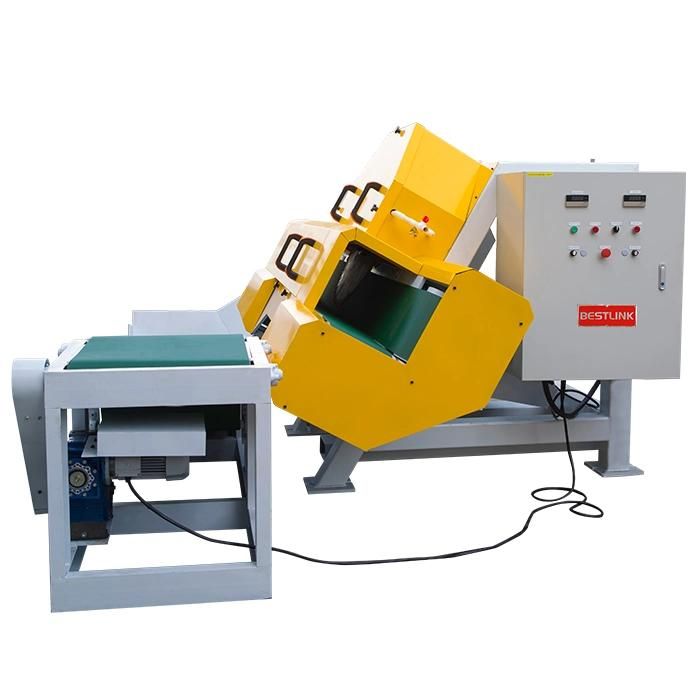

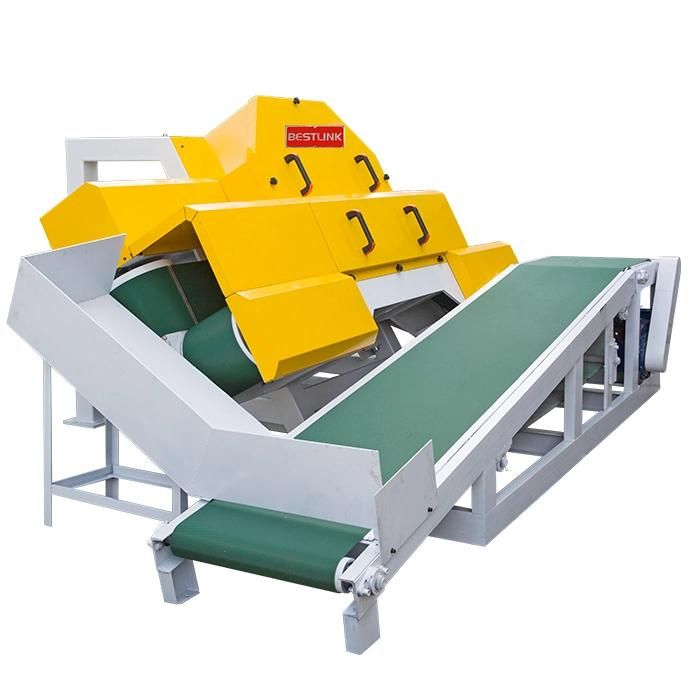

Mighty Stone Saw with Belt 30HP 60HP

Xiamen Bestlink Factory Co., Ltd.
  • Type:CNC Cutting Machine
  • Usage:Granite, Marble, Limestoe
  • Application:Construction, Mineral Industry, Stone Industry
  • Source Voltage:380V
  • Automation:Automatic
  • Cutting Ability:High Speed

Base Info

  • Model NO.:30HP 60HP
  • Control:CNC
  • Certification:ISO
  • Transport Package:Naked
  • Specification:800mm-1200mm
  • Trademark:BESTLINK
  • Origin:China
  • HS Code:84791090
  • Production Capacity:200sets Per Month

Description

Technical Parameter60HP30HPDimensions (L×W×H)3700mm×1600mm×1730mm3100mm×1600mm×1730mmMachine Weight2720kg2040kgMain Motor Power45kw22kwElectricity3 Phase, 240/460V3 Phase, 240/460VAmperage172/86A86/43AWater Consumption3.5m³/h3m³/hBlade Size1000mm-1200mm750mmBlade Speed Standard(Adjustable)780rpm900rpmMax. Cutting Depth300mm250mmConveyor Belt Speed(Adjustable)600mm/min-2450mm/min600mm/min-2450mm/minMighty Stone Saw with Belt 30HP 60HP
