• Model NO.：XZQQ625A
• Control：CNC
• Certification：ISO, CE
• Max Cut Size(L*W)：3200*2000 mm
• Table Rotation：0-360°
• Table Size：3200*2000 mm
• Max Blade Size：625mm
• Payment：T,T
• Spindle Mortor：15kw
• Transport Package：Plastic Packing
• Specification：table tilting 0-85 degree
• Trademark：AGA
• Origin：China
• HS Code：84641010
• Production Capacity：300sets,Month

Basic Info.

Model NO. XZQQ625A Control CNC Certification ISO, CE Max Cut Size(L*W) 3200*2000 mm Table Rotation 0-360° Table Size 3200*2000 mm Max Blade Size 625mm Payment T/T Spindle Mortor 15kw Transport Package Plastic Packing Specification table tilting 0-85 degree Trademark AGA Origin China HS Code 84641010 Production Capacity 300sets/Month

Product Description

Granite Marble Stone Bridge Saw with Miter Head 45 Angle
1.Product No.:XZQQ625A
2. Good services and warranty.
3. High power and easily operation.

Granite Marble Stone Bridge Saw Info:

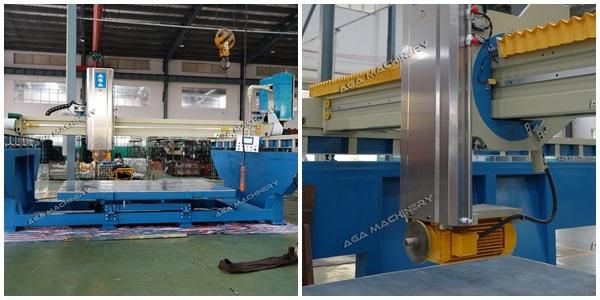

The mechanical body is made of very strong cast iron for stability and long lifetime. It also provides covered oil bath for the movements of bridge rails.

The machine is a popular bridge saw that widely used in trimming and fabricating slab, tile, countertops, etc. It is able to cut 3200mm length and 2000mm width and 175mm thick (126"×78" ×7").



The laser guide and sensors gives high accuracy for the machining tolerance.

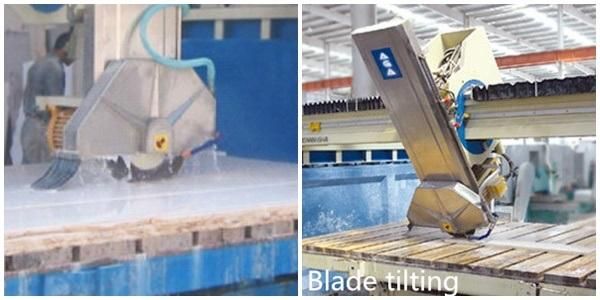

The blade travels on the beam and it also provides power tilting 0 - 45 degree for mitre edge trim.

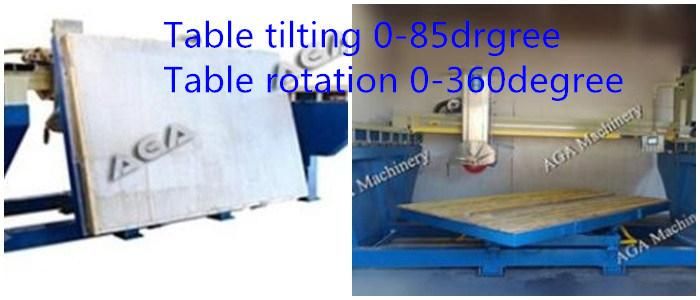

The table turns 0 - 360 degree automatically and it also tilts 0 - 85 degree hydraulic for easy load and unload of the material.


This monobloc bridge saw machine is computer control and able to program for up to 99 repeat cuts automatically and also capable of manual operation.



Usage:
Automatic Bridge Saw for cutting granite marble and other stones.

Granite Marble Stone Bridge Saw Specification:


Blade size	400-625mm  16"-25"
Cut length	3200mm   126"
Cut width	2000mm   78"
Cut thick	170mm      7"
Blade tilt	0 - 45°
Table rotate	0 - 360°
Table tilt	0 - 85°
Spindle motor	15kW     20HP
Size (L×W×H)	6×3×2.6 m
Weight	7200 Kg

Granite Marble Stone Bridge Saw Features:
1.Computer control operation
2.Cutting slabs into tiles and cut to size
3.Blade tilting: 45°
4.Table tilting: 0-85°
5.table rotation: 0-360° (stopping at each 45°)

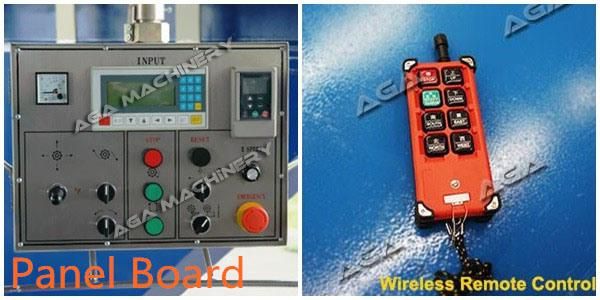

6.Laser guide with wireless remote
7.Spindle Motor:15Kw (20HP)
8.Movements of bridge rails
9.Automatic water control
10.Warranty: one year
11.Longevity:15 years

Guarantee & after sale service:
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.

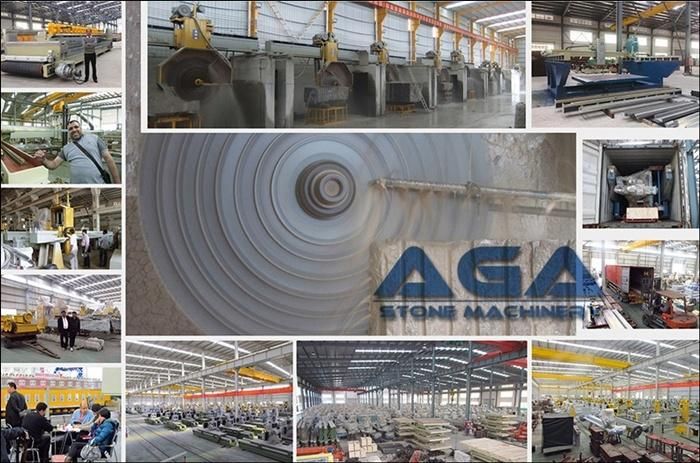

AGA Company:
AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable. the products include bridge saw, block  cutter, polishing machine as well as equipments for other construction stones. the equipments have been successfully exported to world stone market in usa, canada, europe, mid east, egypt, india, etc.


AGA understands that machinery creates value for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers  in their pursuit of a true competitive advantage. our philosophy is all about  professional entrepreneurship and perfectly serving our clients and the mission is to help customers because by choosing us you are giving us a chance to make your machine more productive that also make your products unrivaled in the competitive market and we are happy to do that professionally and passionately.

AGA Product:
Stone cutting machine multi blades block cutter, automatic bridge cutting machine, bridge saw, edge cutting machine, edge polishing machine, profile cutting machine, arm polisher machine, splitting machine, pressing machine, stone crusher.

Keyword :
bridge saw, bridge cutting machine, bridge cutter, granite saw, marble saw, stone process machine, granite sawing machine.
