• Model NO.：HLQC-600,800
• Cutting Ability：High Speed
• Max Blade Diameter：600mm
• Max Litting Stroke：350mm
• Worktable Size：3200*2000mm
• Worktable Rotation Range：0-90°,0-360°
• Max Height of Cutting：150mm
• Water Consumption：3 M3,H
• Power of Main Motor：18.5kw
• Total Power：24kw
• Total Weight：5600kg
• Transport Package：Standard Export Packaging
• Specification：6000*4800*3200mm
• Trademark：Henglong
• Origin：Fujian, China
• Production Capacity：30~50sets ,Month

Basic Info.

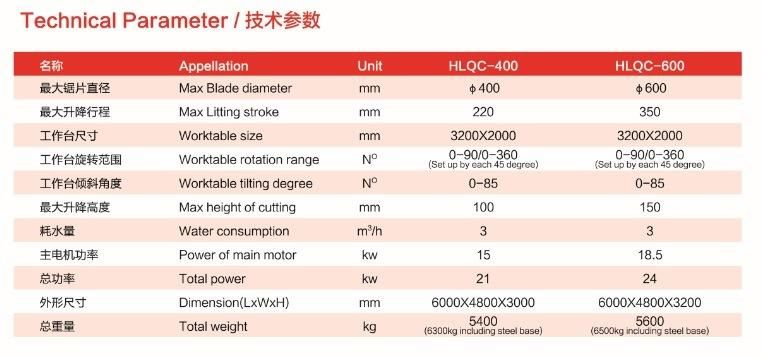

Model NO. HLQC-600/800 Cutting Ability High Speed Max Blade Diameter 600mm Max Litting Stroke 350mm Worktable Size 3200*2000mm Worktable Rotation Range 0-90°/0-360° Max Height of Cutting 150mm Water Consumption 3 M3/H Power of Main Motor 18.5kw Total Power 24kw Total Weight 5600kg Transport Package Standard Export Packaging Specification 6000*4800*3200mm Trademark Henglong Origin Fujian, China Production Capacity 30~50sets /Month

Product Description

Product Description

HLQC-600/800 infrared automatic stone bridge cutting machine has two type, adopting PLC system and Human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control left-right feeding,adjusting the speed according to stone material, using hydraulic lifting system which equiped through 4 guide post, also this machine provide the unique side beam protection device, main spare parts adopt imported well-quality materials.

The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble.

More information please contact us
