Stone Cutting Machine-Bridge Tyoe Block Cutting Machine for Marble and Granite
FUJIAN NAN'AN HENGLONG MACHINERY CO.,LTD.- Type：CNC Cutting Machine
- Usage：Ceramics, Fire Brick, Red Brick, Jadestone, Cement Brick, Concrete Curb, Granite, Marble
- Application：Machinery & Hardware, Art & Craft, Mineral Industry, Stone Industry
- Source Voltage：380V
- Automation：Automatic
- Cutting Ability：High Speed
Base Info
- Model NO.：HLLD-2200,2500,3000
- Control：Artificial
- Certification：SONCAP, ISO, CE
- Power of Main Motor：55-75kw
- Saw Blade Diameter：2200-3000mm
- Cutting Length：3500mm
- Cutting Width：2300mm
- Lifting Stroke：1350mm
- Total Power：67-87kw
- Gross Weight：12500-14000kg
- Transport Package：Staandard
- Specification：7800*4500*4500-7800*4500*4800
- Trademark：hl&sm
- Origin：Shuitou Xiamen China
- Production Capacity：200sets,Year
Description
Basic Info.

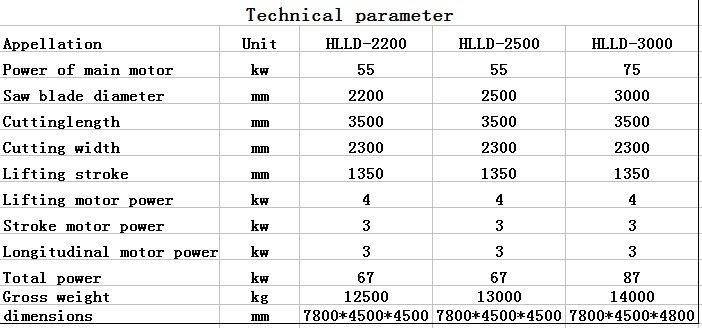

Model NO. HLLD-2200/2500/3000 Control Artificial Certification SONCAP, ISO, CE Power of Main Motor 55-75kw Saw Blade Diameter 2200-3000mm Cutting Length 3500mm Cutting Width 2300mm Lifting Stroke 1350mm Total Power 67-87kw Gross Weight 12500-14000kg Transport Package Staandard Specification 7800*4500*4500-7800*4500*4800 Trademark hl&sm Origin Shuitou Xiamen China Production Capacity 200sets/YearProduct Description
HLLD-2800/3500Heavy size bridge type block cutting machine
1. This machine uses inverter to control left-right feeding and adjusts speed according to the stone material. It uses hydtaulic lifting system, combination of chrome-plated guide pin and wear guide bush with small gap,wearable,beautiful structure. The guide sleeve with multi-layer seals with waterproof,dustproof,anti-spill, improving the service life. Foeward-backward slicing uses high-precision screw nut driving, qutonatic slicing, main spare parts adopt imported good quality materials, the blodk can be place on the ground directly to enconomize the worktable and maintance costs; Thus the whole machine is featured by it's high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy-operating to suit granite and marble block with high value.
