• Model NO.：KE600-1, KE750-1, KE760-1, KE860-1, KJ125-1
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：50-1000tph

Basic Info.

Model NO. KE600-1, KE750-1, KE760-1, KE860-1, KJ125-1 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 50-1000tph

Product Description

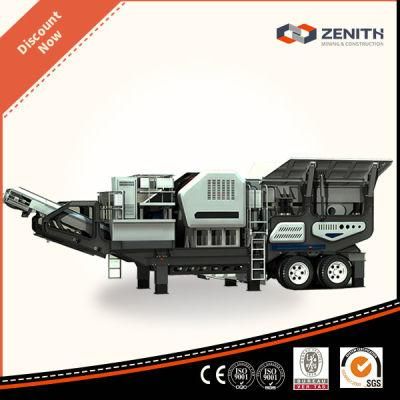

2019 hot sale new design mobile stone crusher plant

mobile stone crusher plant provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. Mobile Crusher Plant, mobile stone crusher plant concept is fully adaptable to all mobile crushing needs, it set up a new range of business opportunities for coarse and fine crushing. It can eliminate the obstacles of the crushing places and circumstances, and offer the high efficient and low cost project plants for the client. To the client, it is the best choice.

mobile stone crusher plant features:

1. mobile stone crusher plant series high performance crusher
2. Incorporated the feeder, belt conveyor and vibrating screen into the crusher
3. Steering traction axis, convenient for road transportation
4. Support legs on truck, quick to set-up
5. Electric motor and control cabinet are incorporated

mobile stone crusher plant Application

The mobile stone crusher plant is applied to multistage crush large materials, and then screen the discharges according to their different specifications. The whole set plants is widely used to mine, building material, highway, rail way and hydropower industries, etc., finish crushing and screening operations at one time, produce required size and output for consumers.


mobile stone crusher plant parameters:


Parameter model	Transport length (mm)	Transport height (mm)	Transport width (mm)	Max. height (mm)	Max. width (mm)	Belt conveyor height (mm)	Total weight (ton)
YF938J69	11200	3900	2450	4700	2900	2600	42
YF1142J710	13000	4400	2450	5100	3100	2600	55
YF1349J912	15000	4800	3000	5600	3300	2800	72

Configuration

Parameter model	Feeder spec	Jaw crusher	Belt conveyor	Extended belt conveyor	Generator	Capacity (t/h)	Power (kw)
YF938J69	GZD-960X3800	PE600X900	B650X7M	Optional	Optional	70-150	91.5
YF1142J710	GZD1100X4200	PE750X1060	B800X9M	Optional	Optional	90-200	134
YF1349J912	GZD-1300X4900	PE900X1200	B1000X11M	Optional	Optional	150-300	146
