• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max. Cut Size(L*W)：3200*2000mm
• Max. Cut Thick：170mm
• Table Tilting：0-85 Degree
• Table Rotation：0-360 Degree
• Blade Tilting：0-45 Degree
• Spindle Motor：15 Kw 20HP
• Repeat Cutting：99 Repeat Cutting by Program
• Dimention(L*W*H)：6*5*2.6m
• Step Cutting：Two Way Cutting
• Transport Package：Plastic Packing
• Specification：Weight: 7200kg
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641010
• Production Capacity：200sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max. Cut Size(L*W) 3200*2000mm Max. Cut Thick 170mm Table Tilting 0-85 Degree Table Rotation 0-360 Degree Blade Tilting 0-45 Degree Spindle Motor 15 Kw 20HP Repeat Cutting 99 Repeat Cutting by Program Dimention(L*W*H) 6*5*2.6m Step Cutting Two Way Cutting Transport Package Plastic Packing Specification Weight: 7200kg Trademark AGA Origin Xiamen, China HS Code 84641010 Production Capacity 200sets/Month

Product Description

Monoblock CNC Machine Stone Bridge Saw with Blade Tilting 45 Degrees for Miter Cut Automatically
Product. No XZQQ625A
The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble and quartz.
The design of the machine provides the user safe and easy exploitation, high performance and productivity.

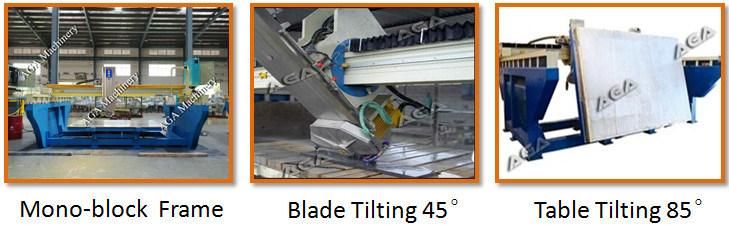

1) Miter cut:
Bridge saw blade tilts 0-45 degree for miter cut very excellent in cutting and fabricating slab, countertop, vanitytop, etc.
2) Table tiltting&rotating:
Bridge saw table tilts 0-85 degree for easy load of materials and it can rotate 0-360 degree stopped at any angle to change the cutting position easily.
3) Monoblock frame:
Bridge saw is made with mono frame, provides mouh more stable performance in cutting stones.

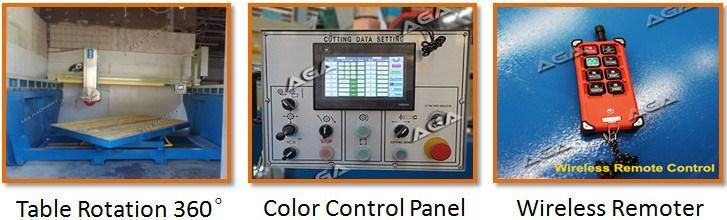

4) Color touch screen:
This saw is computer control and with color display touch scree, all functions are operated on the control panle making its user very friendly.
5) Wireless remote:
Wireless remote provides easy control of the saw.

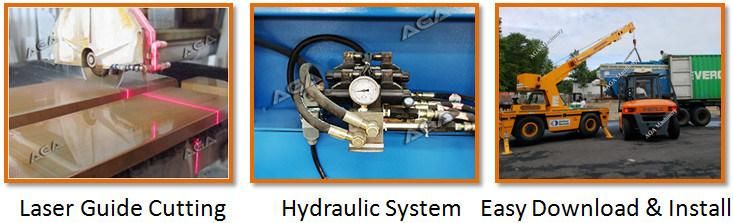

6) Laser guide cutting:
Laser guide and sensors show precision cutting every time.
.
.

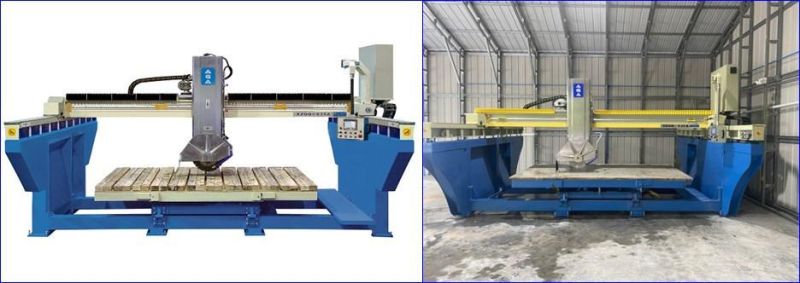

Bridge saw pictures:


All comandulli machines are manufactured not only to perform consistently at the highest level for many years, but also to enable longevity of the machine.
The machine structure goes through a metallization process, and is finished with a special cataphoresis painting treatment allowing both a long rust free life, and great looks.



Maximize your production with Monoblock Granite Bridge Saw XZQQ625A

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

Undertaking of the bridge saw:
1)  ISO, CE Certification.
2)  Lifetime: normally 15 years or more if properly maintained.
3)  Warranty for one year.
4)  24 hour technical support Internet or by Telephone, free intructions and problem solvig.

Key words:
Stone bridge saw, granite bridge saw, granite cutting machine, stone cutting machine, slab saw, stone saw, granite saw, slab sawing machine, bridge saw, bridge cutting machine, granite saw, bridge sawing machine, tiles cutter, cnc machine, cnc cutting machine, cnc stone machine, marble cutting machine, etc.
 FAQ:
1) Payment:
T/T in advance We accept 30% deposit , 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock. Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
