• Model NO.：HQ400-600
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max. Length of Cutting (Table Size)：3200*2000mm
• Max. Cut Thick：110mm,180mm,230mm
• Blade Tilt：0-45 Degree (Optional for Hq700)
• Table Tilt：0-85 Degree
• Table Rotate(Hq400/600)：0-90 Degree
• Table Rotate (Hq700)：0-360 Degree
• Transport Package：Water-Proof Package
• Specification：Cast iron
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84649090
• Production Capacity：200sets,Month

Basic Info.

Model NO. HQ400-600 Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max. Length of Cutting (Table Size) 3200*2000mm Max. Cut Thick 110mm/180mm/230mm Blade Tilt 0-45 Degree (Optional for Hq700) Table Tilt 0-85 Degree Table Rotate(Hq400/600) 0-90 Degree Table Rotate (Hq700) 0-360 Degree Transport Package Water-Proof Package Specification Cast iron Trademark AGA Origin Xiamen, China HS Code 84649090 Production Capacity 200sets/Month

Product Description

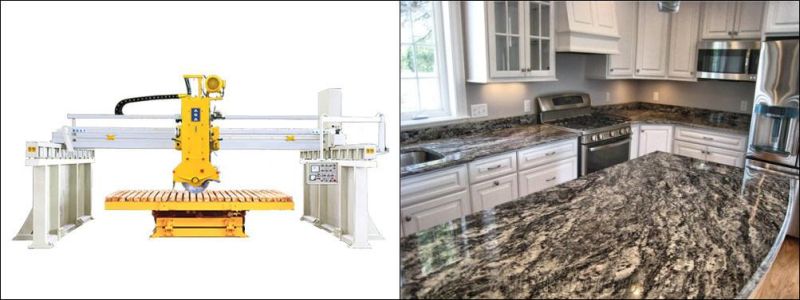

Premium Infrared Stone Bridge Saw Cutting Granite Marble Slabs Tiles Automatically
Machine model: HQ400-HQ600
1) Robust bridge saw preferable for cutting granite, marble, quartz, sandstone, limestone and engineered stones.
2) Provides excellent performance in cutting and fabricatting slab, tiles, kitchen tops, counter tops, vanity top, etc.
3) The whole bridge saw is featured with high cutting efficiency, high cutting precision, high stability, easy to operate.


Granite bridge saw marble bridge saw specification:

Model	HQ600	HQ400
Blade tilting 45° (Angle Cut Mitered)	N/A	N/A
Table Rotation 90°	Yes	Yes
Table Rotation 0-360°  (stopping at each 45°)	Optional	Optional
Table tilting 0 - 85°	Yes	Yes
Power Of Spindle Motor	18.5kw / 25 HP	15kw / 20 HP
Max Length of Cutting: (Table Size)	3200 x 2000mm / 126"x78"	3200 x 2000mm / 126"x78"
Max Thick of Cutting:	180 mm 7"	110 mm 4"
Steel Walls Included	Optional	Optional

Marble bridge saw granite bridge saw introduction:
Main structures of the marble granite bridge saw are made of very strong cast iron and stainless steel for protection. Powered table tilts 0-85 degree hydraulic for easy load of material. It can turn 0°-90°(optional: 0°-360° stopping automatically at 45°,90° and any angle) changing the cutting position easily.

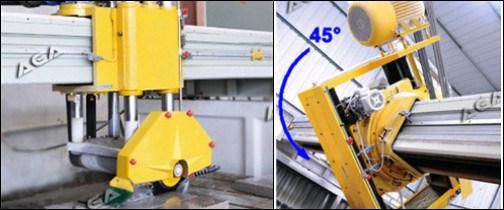

The blade goes left and right, up and down, the bridge beam moves forward and backward. It moves flexible movements in X, Y, Z axis by screw. Blade tilt 45 degree for mitered cuts available for model HQ700.


The bridge saw is made with PLC standard. Electric system is simple and easy to operate. All functions are operated on the control panel with color touch screen. Electric parts are all from good international brands ensuring stable performance.
This stone cutting machine is an full automatic laser cutting machine. Laser guide shows the cutting position that makes the cutting easier and make precise cut +/-0.2mm. Cutting slabs, tiles, counter tops highly and perfect.

Key words:
Stone cutting machine, granite cutting machine, marble cutting machine, stone bridge saw, bridge saw, bridge cutting machine, bridge cutter, slab cutting machine, stone saw, granite saw, marble saw, stone sawing machine, slab saw, tiles cutting machine, cnc machine, cnc cutting machine, etc.

FAQ:
1) Payment:
T/T in advance, we accept 30% deposit, 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 days ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

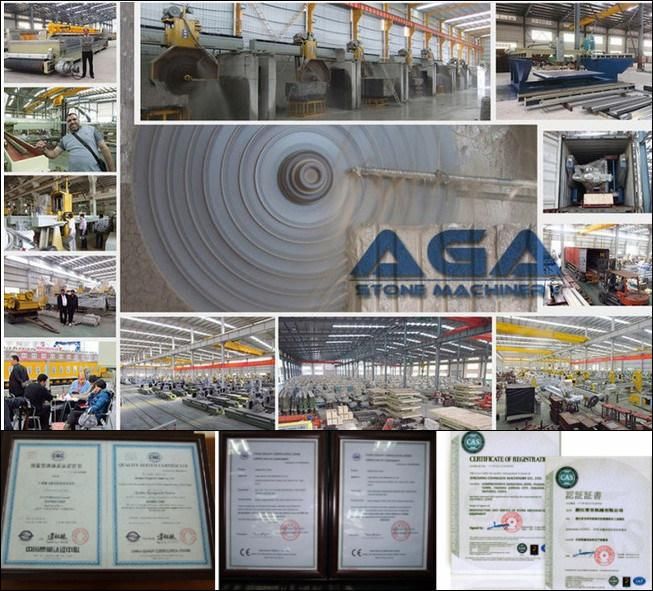

AGA Machienry:

AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.
