• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max. Cut Size(Table Size)：3200*2000mm
• Max. Cut Thick：170mm
• Blade Size：400-625mm
• Table Tilting：0-85 Degree Easy for Materials Loading
• Table Rotation：0-360 Degree Stopped Any Postion
• Blade Tilting：0-45 Degree for Miter Cut
• Spindle Motor：15 Kw 20HP
• Transport Package：Plastic Packing
• Specification：Dimention (L*W*H): 6*5*3m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84649090
• Production Capacity：200sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max. Cut Size(Table Size) 3200*2000mm Max. Cut Thick 170mm Blade Size 400-625mm Table Tilting 0-85 Degree Easy for Materials Loading Table Rotation 0-360 Degree Stopped Any Postion Blade Tilting 0-45 Degree for Miter Cut Spindle Motor 15 Kw 20HP Transport Package Plastic Packing Specification Dimention (L*W*H): 6*5*3m Trademark AGA Origin Xiamen, China HS Code 84649090 Production Capacity 200sets/Month

Product Description

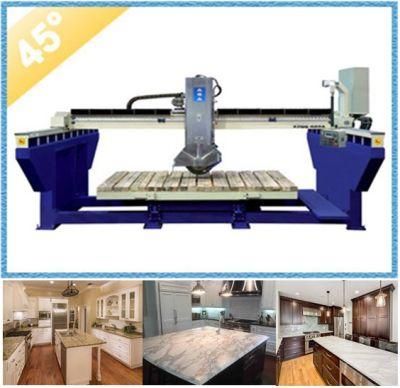

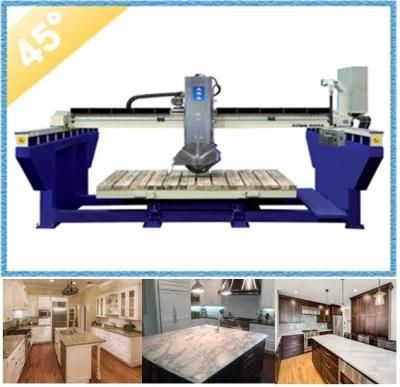

Robust Stone CNC Machine Cutting Granite Marble Quartz Countertops Automtiaclly
Product No.XZQQ625A

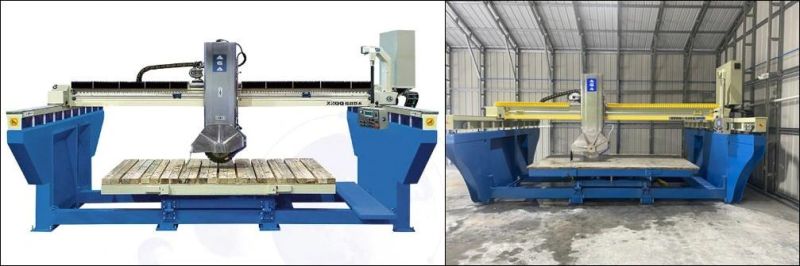

The whole bridge saw is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, preferable for cutting high value granite and big size marble and quart.


Monoblock bridge saw provides excellent performance in cutting and fabricating slabs, tiles, counter tops, bench tops, vanity tops, etc. We sent quite a lot to the marble granite fabricators, customers paid and they receive the saw and very happy.

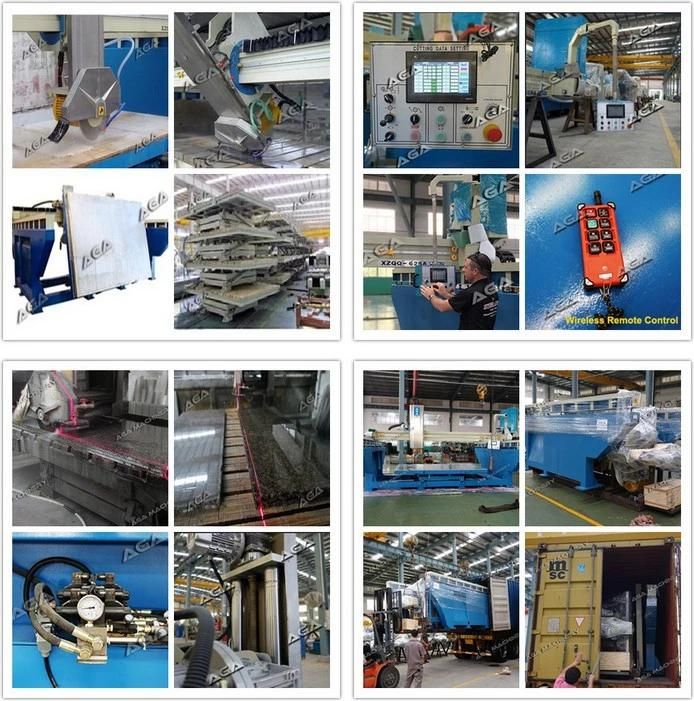

Granite bridge saw features:
1) Bridge saw blade provides autoamtic tilting of 0-45 degrees for miter cuts.

2) Bridge saw main structures are made of very strong cast iron and stainless steel for protection. Main spare parts adopt imported well-quality materials.

3) Bridge saw worktable tilts 0-85 degrees hydraulic for easy load of granite marble materials. Table also rotates 0-360 stopping automatically at any angle easy for cutting direction changing.

4) This bridge saw is PLC control system, programmable, fully automatic & smooth feeding.
Electric system is very simple and easy to operate. Touch-sensitive operating system, friendly human-machine interface design.

5) Wireless remote provides easy control of the saw making its users very friendly.

6) Bridge Saw equipped with infrared device, precise cutting location reachable.

7) Electric parts of international name brand adopted, reliability guaranteed.

8) Monobloc structural frame is easy for loading, transportation and installation.


Granite bridge saw specification:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

FAQ:
1) Payment:
T/T in advance, 30% deposit, 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock. Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.



AGA Machinery:

AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.
