• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max. Length of Cutting (Table Size)：3200*2000mm
• Max. Cut Thick：170mm
• Table Tilting：0-85 Degree Easy for Materials Loading
• Table Rotation：0-360 Degree Stop at Any Position
• Blade Tilting：0-45 Degree for Miter Cut
• Repeat Cutting：99 Repeat Cutting by Program
• Power of Spindle Motor：15 Kw 20HP
• Weight：7200kg
• Transport Package：Plastic Packing
• Specification：Dimention (L*W*H): 6*5*3.05m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84649090
• Production Capacity：200sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max. Length of Cutting (Table Size) 3200*2000mm Max. Cut Thick 170mm Table Tilting 0-85 Degree Easy for Materials Loading Table Rotation 0-360 Degree Stop at Any Position Blade Tilting 0-45 Degree for Miter Cut Repeat Cutting 99 Repeat Cutting by Program Power of Spindle Motor 15 Kw 20HP Weight 7200kg Transport Package Plastic Packing Specification Dimention (L*W*H): 6*5*3.05m Trademark AGA Origin Xiamen, China HS Code 84649090 Production Capacity 200sets/Month

Product Description

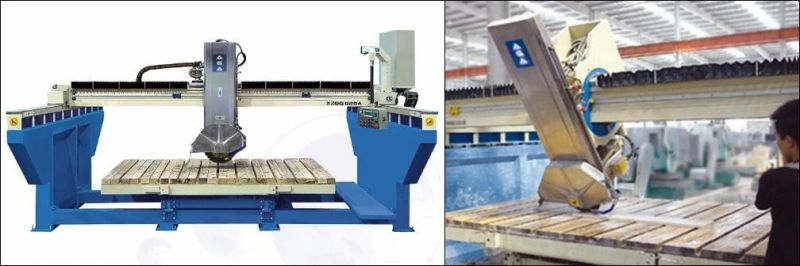

Automatic CNC Machine Stone Bridge Saw with 45 Miter Cut for Granite Marble Quartz Cutting
Product No.XZQQ625A
Granite bridge saw 625A is made with U.S standard full of options including mono frame, pendant control panel, touch screen, wireless remote, head tilting, table rotation and tilting, hydraulic pump, etc. It's hot sales in the market at the right price.


High quality bridge saw made with full functions. It's the best machine in China. The machine blade can tilt 45  degrees for miter cut automatically.

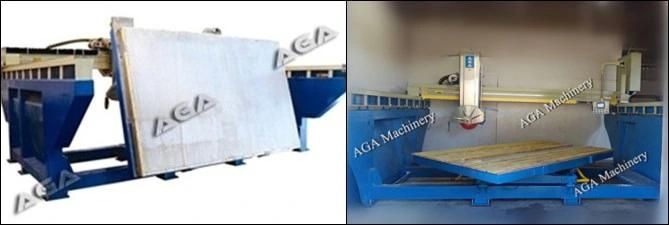

Bridge saw table tilts 0°-85° for easy load of materials and it rotates 0°-360° stopped at any angle to change cutting position.

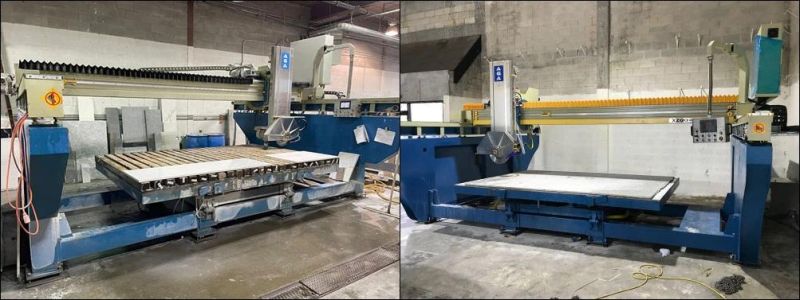

Bridge saw working in cusotmers' shops, what you see, what you get.


CNC machine stone bridge saw specifications:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

CNC machine stone bridge saw introduction:
Are you sourcing a reliable bridge saw for your marble granite fabrication? Bridge saw XZQQ625A is robust with full options, including mono frame, pendant control panel, touch screen, wireless remote, head tilting, table rotation and tilting, hydraulic pump, etc.
The tilting blade provides 45 degree for mitred cuts very excellent performance in cutting granite marble stones.
Functional table turns 0 - 360 degree automatically stopped any position and also tilts 0 - 85 degree Hydraulic for easy load of material.
This saw is computer control and with color Display Touch Screen. All functions are operated on the color touch screen making users very friendly.
Laser guid and sensors show precision cutting position every time.
Besides, the wireless remote provides easy control of the saw.
Please maximize your granite marble production with high quality machine.



FAQ
1) Payment:
T/T in advance, 30% deposit, 70% before shipment.
2) Delivery time:

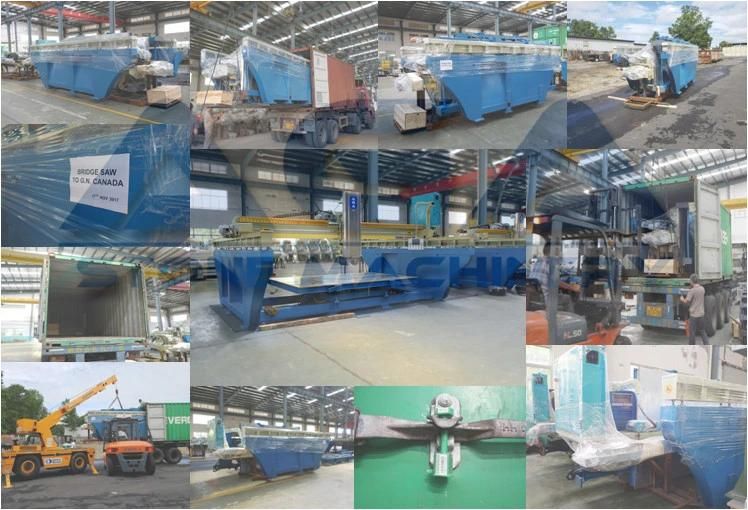

The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock. Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
