• Model NO.：PQ1414
• Finished Surface：Cut Off Tool
• Certification：CE, ISO, SONCAP, CCC
• Condition：New
• Color：as Required
• Adjustment Range(mm：0-100
• Max Feeding(mm)：400
• Capacity (T/H)：100-350
• Motor Power (Kw)：132*2
• Rotor Speed(R/Min)：590
• Size of Feeder Opening (mm)：1400*800
• Transport Package：Suitable for Sea Transportation
• Specification：ISO CE SGS SONCAP
• Trademark：Raytone Machinery
• Origin：Shandong Linyi
• HS Code：8464909000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. PQ1414 Finished Surface Cut Off Tool Certification CE, ISO, SONCAP, CCC Condition New Color as Required Adjustment Range(mm 0-100 Max Feeding(mm) 400 Capacity (T/H) 100-350 Motor Power (Kw) 132*2 Rotor Speed(R/Min) 590 Size of Feeder Opening (mm) 1400*800 Transport Package Suitable for Sea Transportation Specification ISO CE SGS SONCAP Trademark Raytone Machinery Origin Shandong Linyi HS Code 8464909000 Production Capacity 50 Sets Per Month

Product Description

Performance features

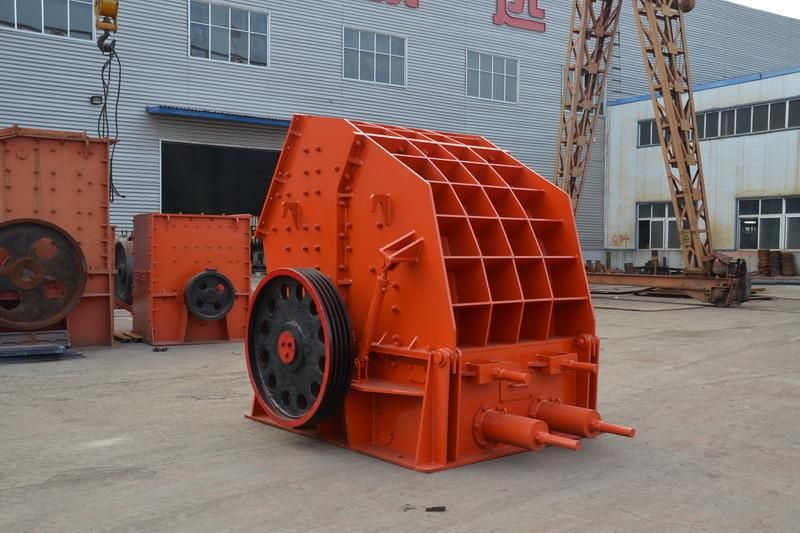

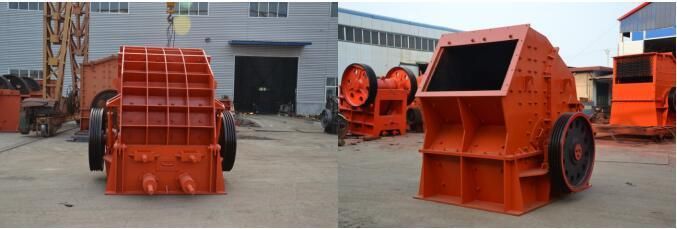

PQ heavy hammer crusher has all advantages of impact and hammer Crusher, the hammer with great weight and durable service. It has advantages of large reduction ratio, great production, particles shapeliness, simple structure, easy maintenance, etc.
Adopt new design idea. Comparing with the same type produces, it has larger production and higher qualified rate, shapeliness particles, lower energy consumption. The replacement of wearing parts is very convenient, and the maintenance cost is low. This equipment can replace the primary, secondary crushing of traditional jaw crusher and impact crusher, thus reduce the equipment investment.



Brief introduction
PQ series heavy hammer crusher crushed by the collisions between high-speed hammer and materials, and the features are in its simple structure. High reduction ration, high efficiency, etc.  PQ series heavy hammer crusher were developed for both dry and wet crushing of brittle, medium-hard materials for mining, cement, coal, metallurgic, construction material, road building, and petroleum and chemical industries.

Work Principle
PQ series heavy hammer crusher's main parts of efficient compound crusher is rollers with hammer, the rollers consists of main shaft, sphere plate, axis roll and hammer. Motor drives roller in high speed running inner the crushing champ, the materials is send from top into the crusher, by the striking, impacting, shearing and grinding into power. After first crushing, the material size is not to meet the requirements of raw materials, and large materials return to break zone continue to crush. PQ heavy hammer crusher can adjust the bottom impact plate and hammer clearance to adjust the particle size of the discharge.

Specifications

Model	Max  Feeding(mm)	Adjustment   Range(mm)	Capacity   (t/h)	Motor  Power (kw)	Rotor  Speed(r/min)	Size of  Feeder Opening (mm)
PQ1414	400	0-100	100-350	132*2	590	1400*800
PQ1618	500	0-100	150-450	160*2	550	1620*900
PQ1818	600	0-100	250-500	200*2	550	1820*900
PQ2018	600	0-100	300-600	250*2	550	2020*900
PQ2522	700	0-100	400-800	315*2	520	2520*1000
