• Model NO.：PQK 1618
• Finished Surface：Cut Off Tool
• Certification：CE, ISO, SONCAP, CCC
• Condition：New
• Color：as Required
• Adjustment Range (mm)：0-100
• After-Sales Service Provided：Engineers Available to Service Machinery
• Structure：Resonable and Stable
• Warranty：One Year Excluding Wearing Parts
• Motor Type：AC Motor
• Transport Package：Suitable for Sea Transportation
• Specification：4650*2830*2760mm
• Trademark：Raytone Machinery
• Origin：Shandong Linyi
• HS Code：8464909000
• Production Capacity：40 Set,Sets Per Month

Basic Info.

Model NO. PQK 1618 Finished Surface Cut Off Tool Certification CE, ISO, SONCAP, CCC Condition New Color as Required Adjustment Range (mm) 0-100 After-Sales Service Provided Engineers Available to Service Machinery Structure Resonable and Stable Warranty One Year Excluding Wearing Parts Motor Type AC Motor Transport Package Suitable for Sea Transportation Specification 4650*2830*2760mm Trademark Raytone Machinery Origin Shandong Linyi HS Code 8464909000 Production Capacity 40 Set/Sets Per Month

Product Description

Brief introduction

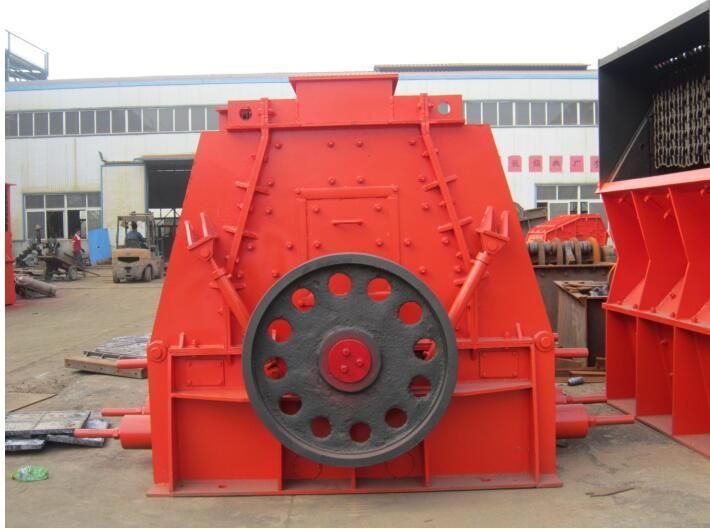

PQK series reversible hammer crusher crushed by the collisions between high-speed hammer and materials, it can replace the motor head to change the direction of rotation to save hammer head exchange time and the features are in its simple structure, High reduction ration, high efficiency, etc.  PQK series reversible hammer crusher were developed for both dry and wet crushing of brittle, medium-hard materials for mining, cement, coal, metallurgic, construction material, road building, and petroleum and chemical industries.



Performance features
1. This is no sieve, which solves the problem of blocking caused by high temperature of materials;
2. The rotor can turn in the front and back, so that the hammer head and crushing board receive same abrasion;
3. The gap of discharge port is adjustable, so the granularity is even, the production is high and the energy consumption is low.
4. The crushing chamber is easy to open, so the wearing parts can be changed easily. Besides, the large machine adopts the hydraulic cylinder.
5. Adjustable impact plate.
Work Principle

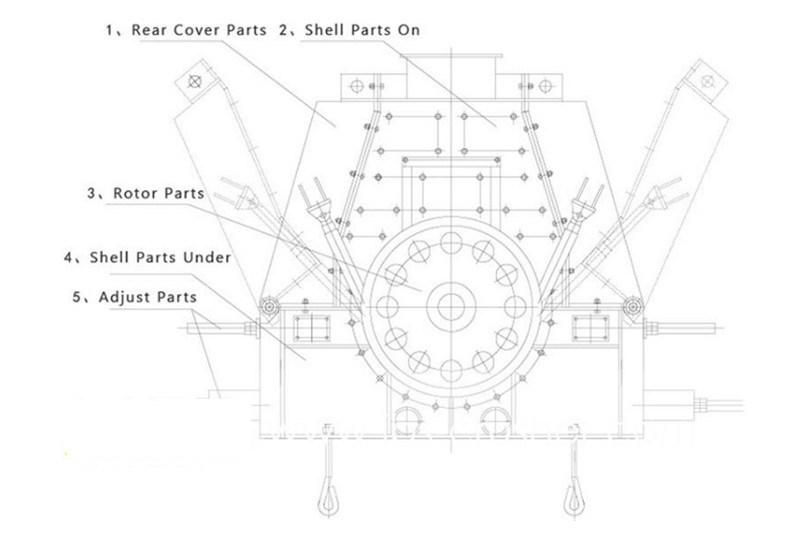

The main parts of efficient compound crusher is rollers with hammer, the rollers consists of main shaft, sphere plate, axis roll and hammer. Motor drives roller in high speed running inner the crushing champ, the materials is send from top into the crusher, by the striking, impacting, shearing and grinding into power. After first crushing, the material size is not to meet the requirements of raw materials, and large materials return to break zone continue to crush. PQK reversible hammer crusher can adjust the bottom impact plate and hammer clearance to adjust the particle size of the discharge.
Specifications

Model	Max  Feeding (mm)	Adjustment  Range (mm)	Capacity   (t/h)	Motor  Power (kw)	Overall Dimension   (L*W*H)(mm)	Size of Feeder   Opening(mm)
PQK1414	200	0-100	100-350	132*2	4400*2450*2320	500*1300
PQK1618	300	0-100	150-450	160*2	4650*2830*2760	650*1400
PQK1818	300	0-100	250-400	200*2	4850*3440*2760	650*1600
PQK2018	300	0-100	300-600	250*2	4900*3640*2760	650*1800
