• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：Artificial
• Certification：ISO, CE
• Max. Cut Size(L*W)：3200*2000mm
• Max. Cut Thick：170mm
• Table Size(L*W)：3200*2000mm
• Table Tilting：0-85 Degree Easy for Materials Loading
• Table Rotation：0-360 Degree Stop at Any Position
• Blade Tilting：0-45 Degree for Miter Cut
• Spindle Motor：15kw
• Transport Package：Water-Proof Package
• Specification：machine dimention: 6*5*3m
• Trademark：AGA
• Origin：China
• HS Code：84641010
• Production Capacity：500sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control Artificial Certification ISO, CE Max. Cut Size(L*W) 3200*2000mm Max. Cut Thick 170mm Table Size(L*W) 3200*2000mm Table Tilting 0-85 Degree Easy for Materials Loading Table Rotation 0-360 Degree Stop at Any Position Blade Tilting 0-45 Degree for Miter Cut Spindle Motor 15kw Transport Package Water-Proof Package Specification machine dimention: 6*5*3m Trademark AGA Origin China HS Code 84641010 Production Capacity 500sets/Month

Product Description

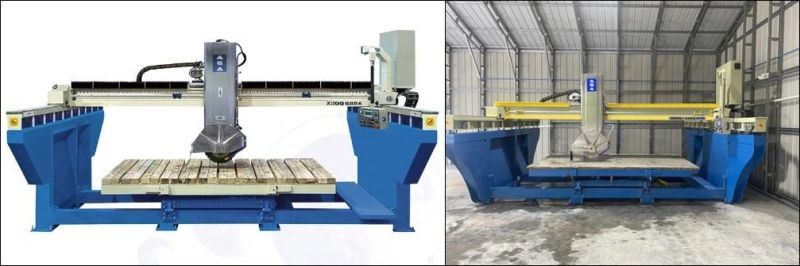

Infrared Stone Bridge Saw Cutting Granite Marble Quartz Countertops with 45 Miter Cut
Product No.XZQQ625A
Machine adpots PLC system and Human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control leftright feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through 4 guide post, also this machine provide the unique side beam protection device, main spare parts adopt imported well-quality materials.


Stone brige saw description:

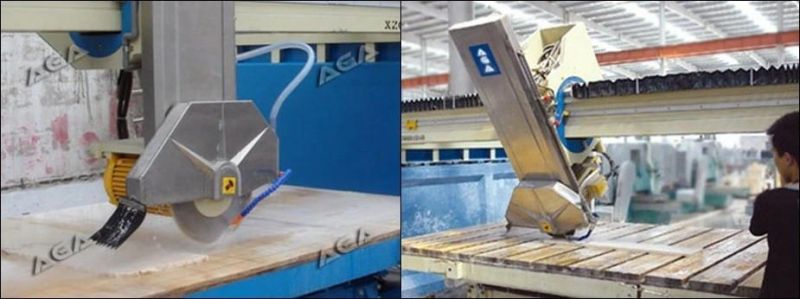

1) Miter Cut:

Bridge saw head tilts 45 degree for miter cuts automatically.

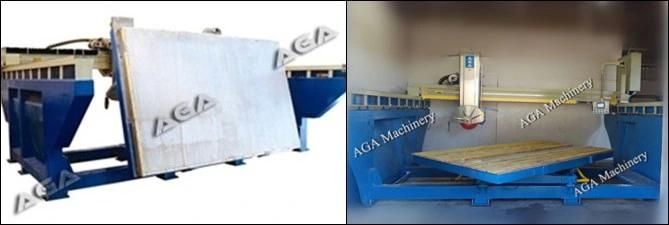

2) Table Tilting and Rotating:

Bridge saw table tilts 0-85 degree hydraulic for easy load of material. Table also turns 0°-360° stopping automatically at any angle to cut stones easily.

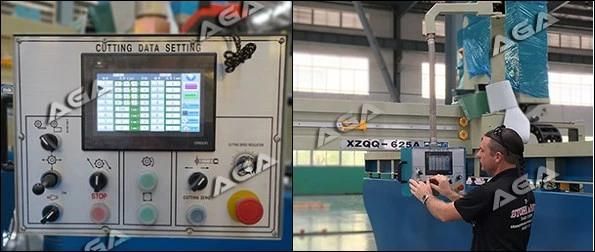

3) Color Display Control Panel:

This saw is PLC control, electric system is very simple and easy to operate. All functions are operated on the color touch screen control panel with live data.


4) Wireless remote and Laser guide:

Wireless remote provides easy control of this machine. It makes users convient to operate this machine. Besides, stone cutting is guided by laser sensor which shows precision cutting position.


5) Hot sales in market:

The high-tech automatic stone bridge saw is preferable for marble granite cutting. We ship it out throughout the world, such as U.S.A, Canada, Australia, Europe, Mid East, Egypet, India, etc. It turns much more in your long term stone business.


Granite bridge saw specification:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

Key words:
Stone bridge saw, granite bridge saw, bridge saw, stone saw, stone cutting machine, slab saw, stone saw, granite cutting machine, marble bridge saw, marble cutting machine, cnc machine, cnc cutting machine, slab cutting machine, tiles cutting machine, bridge cutting machine, etc.

 FAQ:
1) Payment:
T/T in advance We accept 30% deposit , 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock. Time for ocean shipping depends on where you are located.

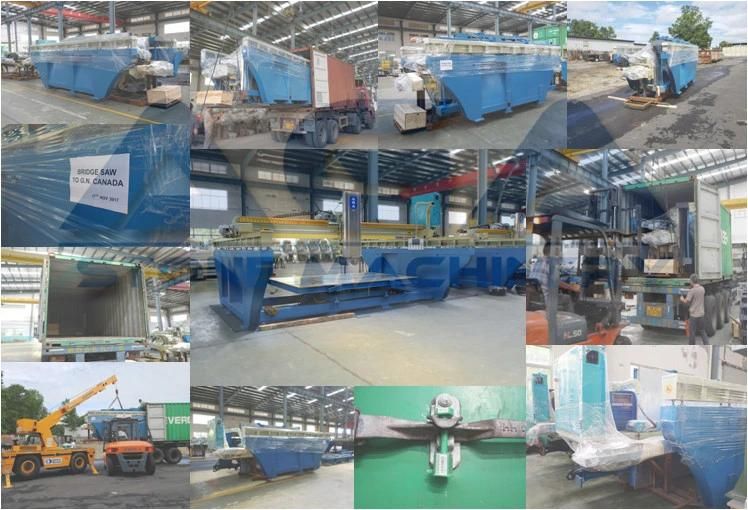

3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.


If you have any questions please feel free to contact us, we're more than happy to serve you!
