• Model NO.：CPE
• Finished Surface：Cut Off Tool
• Certification：CE, ISO, GOST, SONCAP, UL, CCC, API
• Condition：New
• Color：as Customers Request
• Power(W)：30kw
• Capacity(T/H)：5-21
• Place of Origin：Shanghai, China (Mainland)
• Brand Name：Chuangshen
• Model Number：CPE250X400
• Dimension(L*W*H)：1450X1315X1296
• Weight：6500(Excluding Motor)
• Warranty：Mainframe Is One Year (Excluding The Quick Wear PA
• Transport Package：Export Standard
• Specification：Industrial Grade
• Trademark：chuangshen
• Origin：Shanghai China
• Production Capacity：5set,Day

Basic Info.

Model NO. CPE Finished Surface Cut Off Tool Certification CE, ISO, GOST, SONCAP, UL, CCC, API Condition New Color as Customers Request Power(W) 30kw Capacity(T/H) 5-21 Place of Origin Shanghai, China (Mainland) Brand Name Chuangshen Model Number CPE250X400 Dimension(L*W*H) 1450X1315X1296 Weight 6500(Excluding Motor) Warranty Mainframe Is One Year (Excluding The Quick Wear PA Transport Package Export Standard Specification Industrial Grade Trademark chuangshen Origin Shanghai China Production Capacity 5set/Day

Product Description

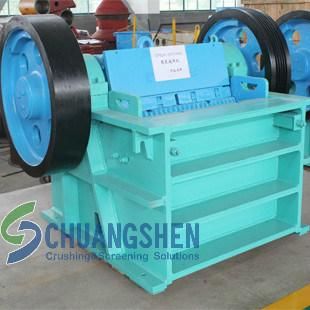

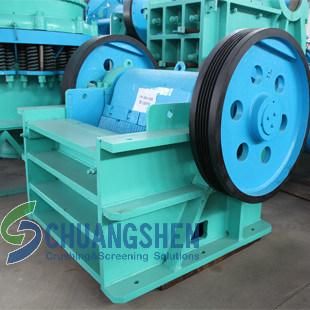

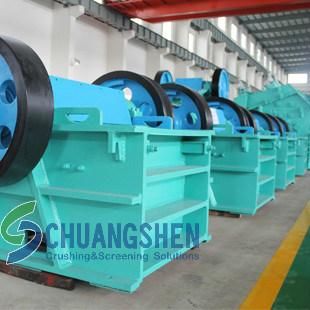

2013 new jaw crusher for sale



I.CPE Series Jaw Crushers

This series of products in china from 1990 to 2005 during the design of a new generation of jaw crusher, the great crushing ration, unform sizes,easy maintenance and operating cost. It is widely used in mining,metallurgical industry, building material, hightway, railway,water conservancy and chemical industries. Various material with compressive resistance less than 320MPA can be crushed.



II.CPE Series Jaw Crushers are appropriate for

1. Widely applied in mining, road&railway, concrete, chemical and building material industries.
2. Ores and rocks with various hardness
3. Concrete basis and steel structure basis
4. Stationary, half-mobile and mobile applications




III.Main advantages of CPE Series jaw crushers

high reduction ratio, uniform production size, long service life, simple construction, excellent productivity, easy maintenance, low energy consume and so on, they are the priority products as the primary crushing.





Model	Feed Opening Size (mm)	Max Feeding Size(mm)	Discharging Size (mm)	Capacity (t/h)	Eccentric Shaft Revolutions (r/m)	Power (kw)	Total Weight (excluding motor)(t)	Over Dimensions (LxWxH)(mm)
CPE-250x400	250x400	210	20-80	5-21	300	15	2.8	1450x1315x1296
CPE-400x600	400x600	340	40-100	16-64	275	30	6.5	1565x1732x1586
CPE-500x750	500x750	425	50-100	45-100	275	55	10.3	1890x1916x1870
CPE-600x900	600x900	500	65-160	48-120	250	55/75	15.5	2305x1840x2298
CPE-620x900	620x900	500	95-145	50-112	250	55/75	14.3	2540x1876x2338
CPE-750x1060	750x1060	630	80-140	115-208	250	110	28	2450x2472x2840
CPE-800x1060	800x1060	650	100-200	136-229	250	110	30	2610x2556x2800
CPE-870x1060	870x1060	670	200-260	288-336	250	110	30.5	2660x2556x2800
CPE-900x1200	900x1200	750	100-200	144-304	200	110	50	3335x3182x3025
CPE-1000x1200	1000x1200	850	195-265	315-342	200	110	51	3435x3182x3025
CPE-1200x1500	1200x1500	950	150-350	300-800	180	160	100.9	4200x3732x3843
CPE-1500x1800	1500x1800	1200	220-350	450-1000	180	280	122	5160x3660x4248
CPEX-150x750	150x750	120	18-48	8-25	320	15	3.5	1380x1658x1025
CPEX-250x750	250x750	210	25-60	13-35	330	22	4.9	1545x1667x1330
CPEX-250x1000	250x1000	210	25-60	16-52	330	30/37	6.5	1530x1992x1380
CPEX-250x1200	250x1200	210	25-60	20-60	330	37	7.7	1900x2192x1430
CPEX-300x1300	300x1300	250	20-90	20-85	300	75	11	1570x2320x1724
