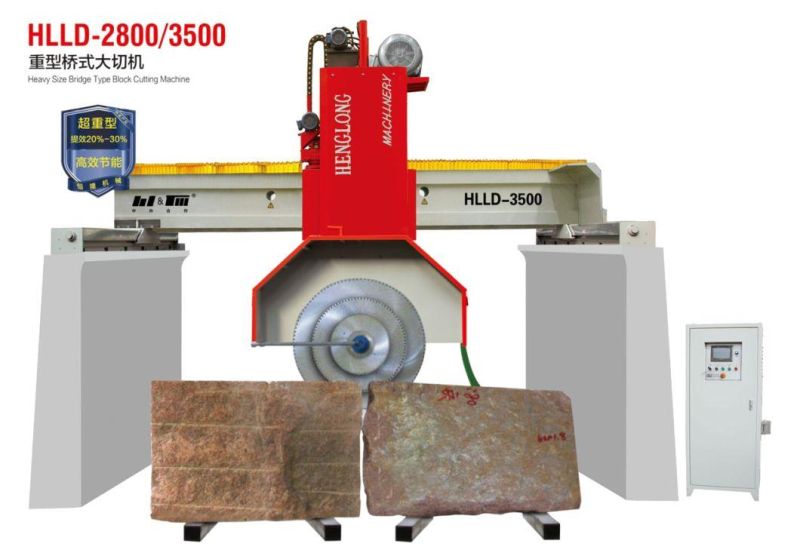

Hydraulic Lifting Heavy Size Bridge Tile Cutter Marble Granite Cutting Machine
FUJIAN NAN'AN HENGLONG MACHINERY CO.,LTD.- After-sales Service：Provide
- Warranty：1 Year
- Type：Hydraulic Cutting Machine
- Usage：Ceramics, Cement Brick, Concrete Curb, Granite, Marble
- Application：Construction, Stone Industry
- Source Voltage：380V
Base Info
- Model NO.：HLLD-2800,3500
- Automation：Automatic
- Cutting Ability：High Speed
- Certification：SONCAP, ISO, CE
- Power of Main Motor：55kw
- Saw Blade Diameter：2500mm
- Cutting Length：3600mm
- Cutting Width：2300mm
- Total Power：67kw
- Gross Weight：13000kg
- Transport Package：Standard Export Packaging
- Trademark：Henglong
- Origin：Fujian, China
- HS Code：84641090
- Production Capacity：20 Sets,Month
Description
Basic Info.
Model NO. HLLD-2800/3500 Automation Automatic Cutting Ability High Speed Certification SONCAP, ISO, CE Power of Main Motor 55kw Saw Blade Diameter 2500mm Cutting Length 3600mm Cutting Width 2300mm Total Power 67kw Gross Weight 13000kg Transport Package Standard Export Packaging Trademark Henglong Origin Fujian, China HS Code 84641090 Production Capacity 20 Sets/MonthProduct Description
Product description:
This machine uses inverter to control left-right feeding ,adjusts speed according to the stone material.
It uses hydraulic lifting system,combination of Chrome-plated guide pin and wear guide bush ,with small gap,wearable,beautiful structure,and Guide Sleeve with multi-layer seals.with waterproof,dustproof,anti-spill,improving the service life.
Forward - backward slicing uses high-precision screw nut driving ,automatic slicing ,main spare parts adopt imported good-quality materials;the block can be placed on the ground directly to economize the worktable and its maintenance costs .
Thus the whole machine is featured with high cutting effciency ,high slicing precision ,flatness of plate after cutting ,high stability,easy-operating to suit granite and marble block with high value.

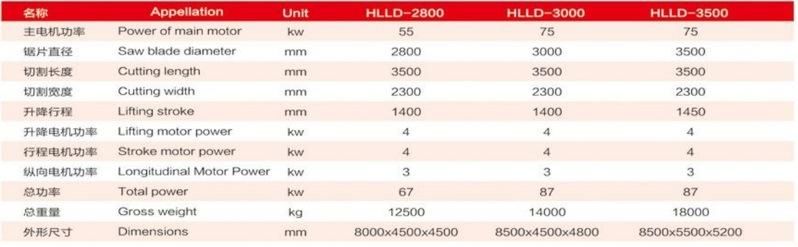

Technical Parameters:
