• Model NO.：APM350-2000
• Cutting Ability：High Speed
• Control：PLC
• Certification：ISO
• Use for：Circular Stone Slab Polishing
• Processing Diameter：350-2000mm
• Processing Length：1300mm
• Grinding Number：10
• Efficiency：≈7min,M²
• Gross Motor：27.5kw
• Water Consumption：6m³,H
• Gross Weight：5000kgs
• Specification：5200x1700x2900mm
• Trademark：XIANDA
• Origin：Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. APM350-2000 Cutting Ability High Speed Control PLC Certification ISO Use for Circular Stone Slab Polishing Processing Diameter 350-2000mm Processing Length 1300mm Grinding Number 10 Efficiency ≈7min/M² Gross Motor 27.5kw Water Consumption 6m³/H Gross Weight 5000kgs Specification 5200x1700x2900mm Trademark XIANDA Origin Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

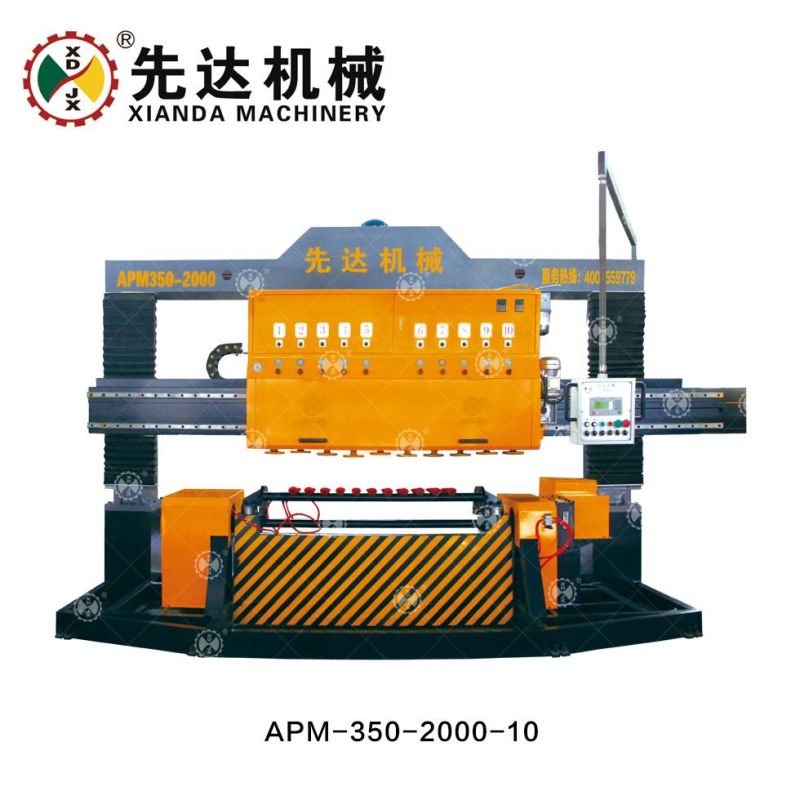

marble granite stone arc slab circular slab polishing machine for stone processing

APM-350-2000,Arc Slab Polishing Machine fix the arc slab by vacuum sucker, replaced conventional clamping fixing on both sides, solved the deviation of the squareness and inclination which were generated by  the steps trimming-grinding, at the meanwhile, clear the customer's concerns about arc slab edge & angle damage. Machine adopt linear guides, multi grinding head and PLC system. it has a high-precision, high efficiency, easy operation and others, it is the ideal equipment for arc slab polishing.


Parameter	Unit	APM-350-2000-10	APM-350-2000-12
Processing diameter	mm	φ350-φ2000	φ350-φ2000
Processing length	mm	1300	1300
Grinding number	piece	10	12
Gross motor	kw	27.5	32
Efficiency	min/m²	≈7	≈8
Outline dimension	mm	5200x1700x2900	5800x1700x2900
Water consumption	m³/h	6	7
Gross weight	kg	5000	6000

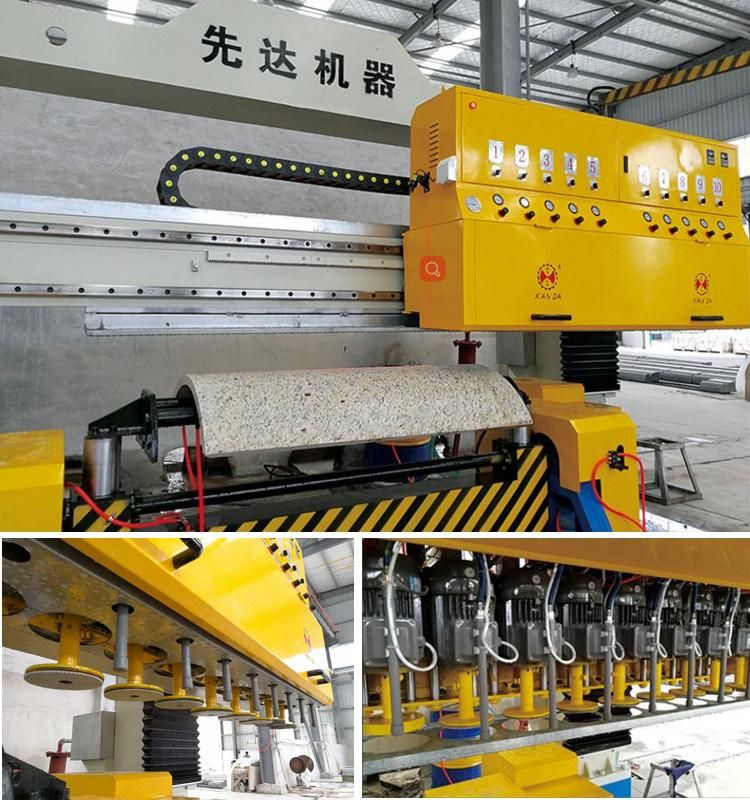

Product Show



Factory Overviews



Certifications



Our Services



We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.

32 years' Manufacture Experience.Special shape stone cutting machine more than 70% market occupied in China.

Top 5 stone cutting machine manufacturer with ISO&CE certificate.

Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.

We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.

After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.

We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.
