• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max. Cut Size(L*W)：3200*2000mm
• Max. Cut Thick：170mm
• Table Tilting：0-85 Degree Easy for Materials Loading
• Table Rotation：0-360 Degree Stopped Any Postion
• Blade Tilting：0-45 Degree for Miter Cut
• Repeat Cutting：99 Repeat Cutting by Program
• Spindle Motor：15 Kw 20HP
• Weight：7200kg
• Transport Package：Plastic Water-Proof Package
• Specification：Dimention (L*W*H): 6*5*2.6m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641010
• Production Capacity：200sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max. Cut Size(L*W) 3200*2000mm Max. Cut Thick 170mm Table Tilting 0-85 Degree Easy for Materials Loading Table Rotation 0-360 Degree Stopped Any Postion Blade Tilting 0-45 Degree for Miter Cut Repeat Cutting 99 Repeat Cutting by Program Spindle Motor 15 Kw 20HP Weight 7200kg Transport Package Plastic Water-Proof Package Specification Dimention (L*W*H): 6*5*2.6m Trademark AGA Origin Xiamen, China HS Code 84641010 Production Capacity 200sets/Month

Product Description

Reliable Granite Bridge Saw Stone CNC Machine Cutting Countertops Automatically
Product No.XZQQ625A
Monoblock granite bridge saw XZQQ625A comes from full functions, including strong steel frame, pendant control panel, color touch screen, wireless remote, laser guide, tilting blade, tilting and rotation table, hydraulic pump, etc. If you're sourcing a reliable bridge saw, this is exactly what you need.Bridge saw XZQQ625A is controlled by microcomputer for cutting granite, marble, quartz and other engineered stones. Robust for cutting and fabricating slab, countertop, vanity top, etc.


Granite bridge saw/marble bridge saw/cnc machine specification:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

Maximize your granite marble stone production with the Monoblock Automatic Bridge Saw.

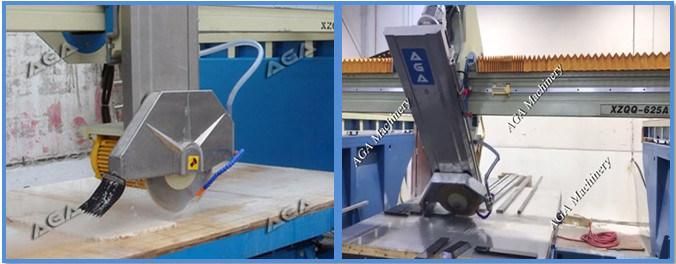

1) Bridge saw head provides 45 degree for miter cut, preferable for cutting slabs and countertops.
2) The max.cut size of stone can be 3200 × 2000mm×170mm in Length× Width×Thickness.
Bridge saw table tilts 0-85 degree hydraulic for easy load of material. It rotates 0°-360° stopping automatically at 45°, 90° and any angle for changing cutting position.

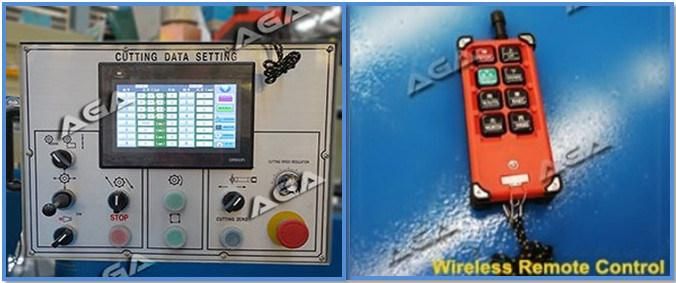

3) This granite bridge saw is PLC control, electric system is very simple and easy to operate. All functions are operated on the color touch screen control panel with live data.
4) Wireless remote provides easy control of the saw making its users very friendly.
5) Besides, stone cutting is guided by laser sensor which shows precision cutting every time in +/-0.2mm making beautiful slabs, tiles, counter tops, etc.

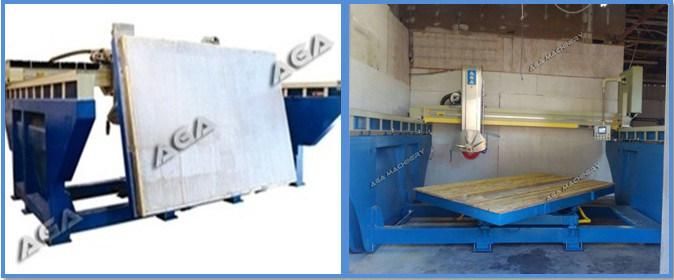

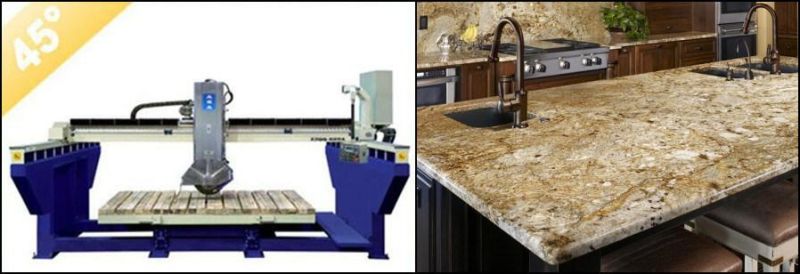

Granite bridge saw/marble bridge saw pictures to share with you:


Key words:
Stone bridge saw, granite bridge saw, marble bridge saw, stone saw, granite saw, marble saw, slab saw, stone cutting machine, marble cutting machine, granite cutting machine, tile cutting machine, slab cutting machine, tile cutter, cnc machine, cnc cuttin machine, slab cut to size machine, slab sawing machine, tiles cutting machine, etc.

 FAQs:
1) Payment:
T/T in advance We accept 30% deposit , 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
