• Model NO.：1325
• Application：Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• Table Size：1300*2500
• Guild Rail：Hiwin Square Rail
• Ball Screw：PMI, Taiwan
• Drive Mode：Stepper
• Control System：Nc Studio, Shanghai
• Transport Package：Plywood Case
• Specification：CE
• Trademark：DONGTONG
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. 1325 Application Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Table Size 1300*2500 Guild Rail Hiwin Square Rail Ball Screw PMI, Taiwan Drive Mode Stepper Control System Nc Studio, Shanghai Transport Package Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per Month

Product Description

Professional cnc router machine maufacturer  for 9 years!

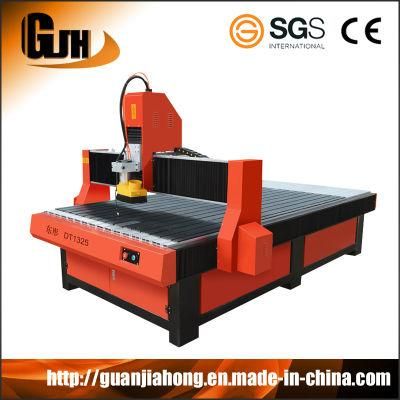

1. DT1325 specially designed for advertisement.
2. The machines'body is strong, rigid, high precision, eliable and durable.
3. Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high-precision...
4. Using well-known domestic brands of water-cooled brushless spindle, low noise, and strong cutting ability, to ensure the long time working.
5. High-performance driven motor to ensure that the machines high speed and accuracy
6. Designer perfectly, selects the best machine accessories, to minimize the failure rate preferred
7. Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing
8. Compatibility, compatible Type3/ Artcam/ Castmate/Wentai, and so on a variety of CAD/CAM design software


1. Woodworking industry: Three-dimensional wave board processing, cabinet door, craft wooden door, folding screen, process window milling shape carved furniture products.
2. Advertising industry: Advertising signs, PVC board, chevron board, double color boards, logo making, acrylic cutting, plastic molding, characters, crystal cutting, plate making, cutting PVC board, acrylic, LED/neon trough, the hole shape literally cut, blister light boxes mould
3. Arts and crafts industry: In the wood, bamboo, marble, organic board, double color boards, such as material for a variety of exquisite design and text on the sculpture.

It is our pleasure to produce any tpye cnc machines as per your requirement.




NO	Performance index	Performance index	Parameter	Optional
1	Working area	X axis	1300mm
		Y axis	2500mm
		Z axis	150mm
2	Table size		1300mm*2500mm
3	Precision	Processing precision	0.02mm
		Repositioning precision	0.02mm
4	Drove mode	X axis	Helical rack and pinion
		Y axis	Helical rack and pinion
		Z axis	Ball screws
5	Speed	Max travel speed	50000mm/min
		Max engraving speed	20000mm/min
6	Spindle(water-cooling)	Spindle power	3KW	0.8KW_3KW
		Spindle speed	0_24000r/min
7	Running mode		stepper	Servo
8	Operating voltage		AC220V/50HZ
9	Command code		G code
10	Operating system		NC STUDIO
11	Net weight		1300KG

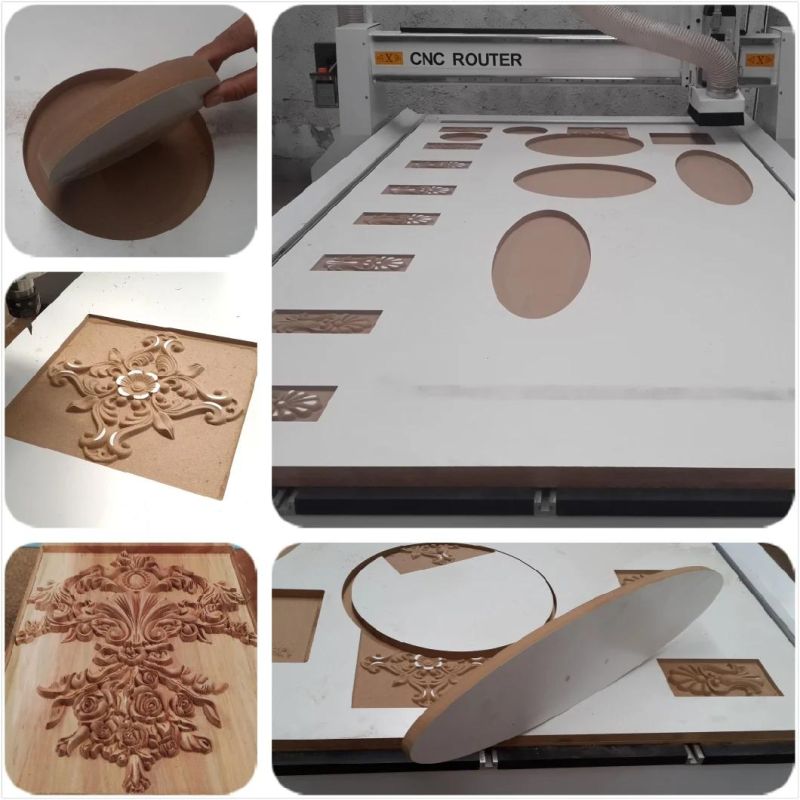

    Cutting and engraving samples

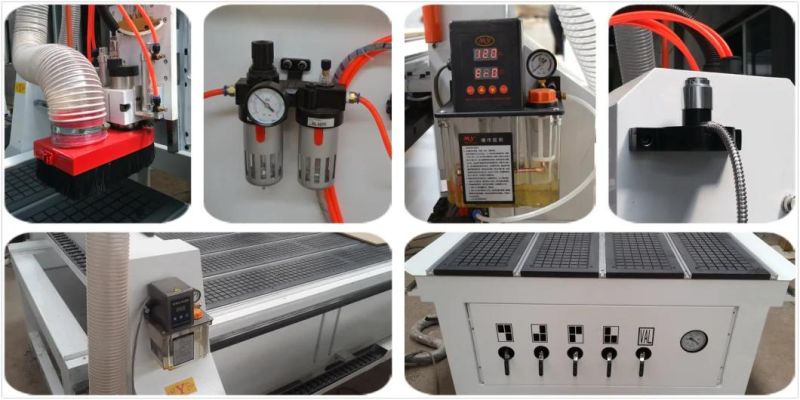

     Machine details




Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.

After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. Free suggestion and consulting, lifetime technical support and service

If you have specific requirement for CNC woodworking engraving machine, customization is available.
