• Model NO.：1325
• Current：AC
• Application：Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• Drive Mode：Stepper
• Guild Rail：Hiwin Square Rail
• Ball Screw：PMI, Taiwan
• Control System：Nc Studio or Richauto
• Transport Package：Standard Exported Plywood Case
• Specification：CE
• Trademark：dongtong
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. 1325 Current AC Application Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Drive Mode Stepper Guild Rail Hiwin Square Rail Ball Screw PMI, Taiwan Control System Nc Studio or Richauto Transport Package Standard Exported Plywood Case Specification CE Trademark dongtong Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per Month

Product Description

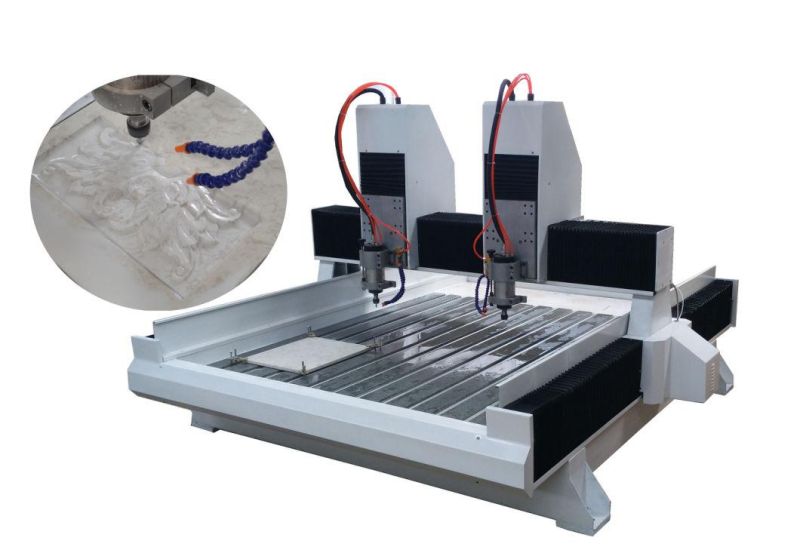

Two spindle , wood and stone, Heavy stone engraving machine cnc router from professional heavy stone engraving machine cnc router manufacturer.



1. Model 1325-2-2
2. Advanced control system has memory of break point, functions of power-off
recovery, continuation on break point, time anticipation.
3. Imported servo motor and driver, easy to handle, easy to learn.
4. Thick-walled steel welded structure, strong load capacity,
5. Heavy weight makes machine runs without jitter
6. Imported ball screws and linear guide rail, high accuracy, move faster.

Application:
1. Materials: wood, acrylic, MDF, soft metal, PVC,stone.....
2. Industry: woodworking,advertisement, artwork industry, exhibition, decoration .










NO	Performance index	Performance index	Parameter	Optional
1	Working area	X area	1300mm	2000
		Y area	2500mm	5000
		Z area	300mm	500
2	Table size		1300mm*2500mm	2200mm*3000mm
3	Accuracy	Working precision	0.05mm
		Repositioning precision	0.05mm
4	Drive mode	X axis	Rack gear
		Y axis	Rack gear(dual-moter)
		Z axis	Ball screw
5	Speed	Max traverse speed	30000mm/min
		Max engraving speed	8000mm/min
6	Spindle (water-cooling)	Spindle power	3KW	1.5KW_5.5KW
		Spindle speed	0_24000r/min
7	Working mode		Stepper
8	Operating voltage		AC220V/50HZ
9	Command code		G code
10	Operating system		NC Studio
11	Net weight		2520KG

Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.

After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. You will also get free suggestion and consulting,  lifetime support and service


More types for wood and stone cnc router . if you have special requestment about heavy duty cnc router machine, please contact with us.
